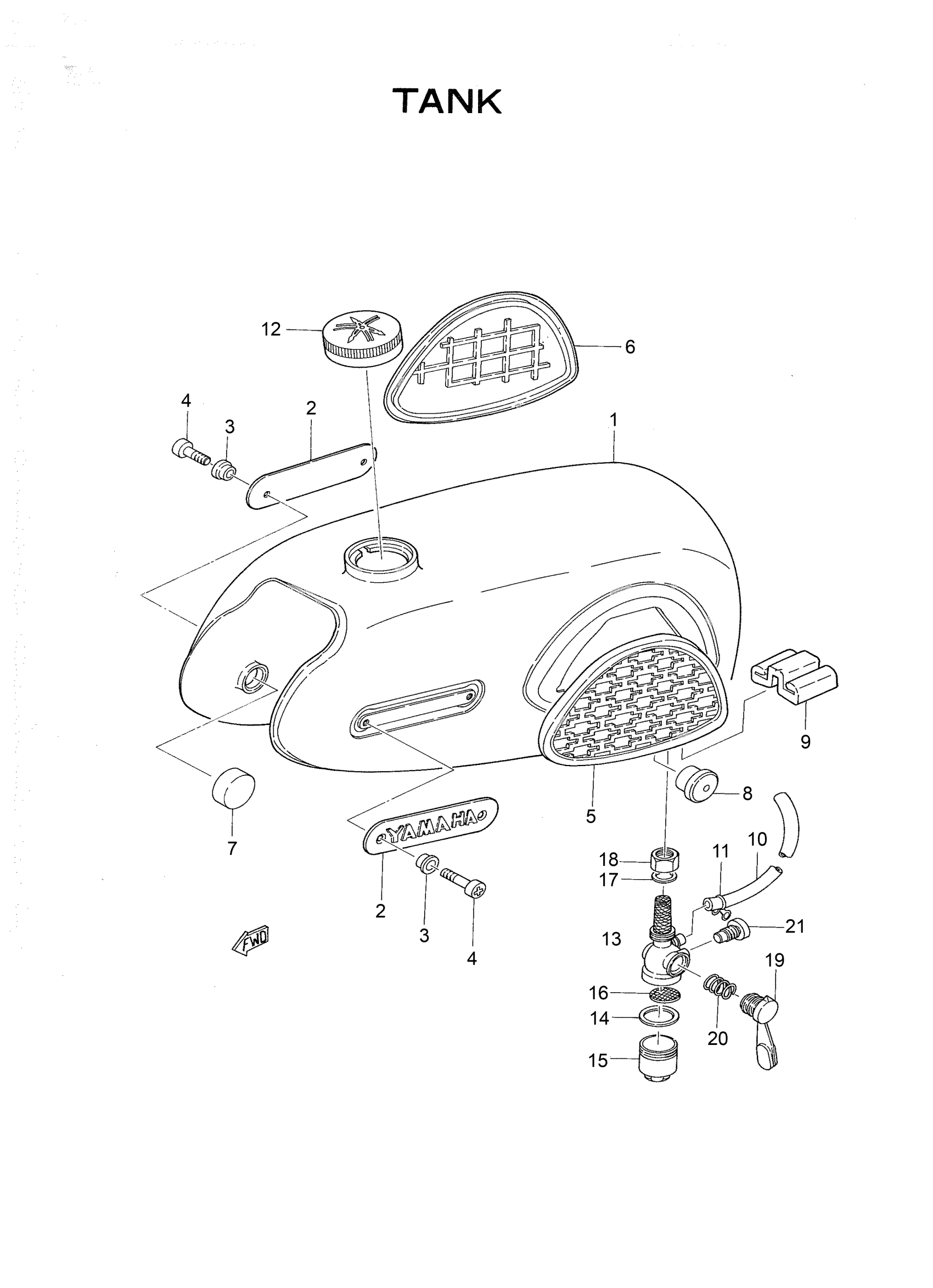

Yamaha YGS1 (YGS1) 129 1966 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

129-24110-10-00

Unavailable

2

EMBLEM

129-24161-00-00

Unavailable

3

WASHER,PLATE

90202-03002-00

Unavailable

4

SCREW, PAN HEAD

92501-04008-00

Unavailable

5

GRIP, KNEE 1

129-24171-00-00

Unavailable

6

GRIP, KNEE 2

129-24172-00-00

Unavailable

7

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

8

DAMPER, LOCATING 2

122-24182-01-00

Unavailable

9

DAMPER, LOCATING 3

129-24183-00-00

Unavailable

10

HOSE (L1500)

90445-090F6-00

$31.99

11

CLIP 101235600

90467-08003-00

$10.49

12

CAP ASSY

122-24610-01-00

$22.99

13

FUEL COCK ASSY

367-24500-04-00

Unavailable

14

GASKET

102-24522-02-00

$5.49

15

. CUP, FILTER

122-24521-00-00

Unavailable

16

. NET, FILTER 2

122-24515-00-00

Unavailable

17

GASKET, NUT

122-24532-00-00

Unavailable

18

. NUT

122-24531-00-00

Unavailable

19

. LEVER, COCK

122-24524-00-00

Unavailable

20

SPRING,COMPRESSION

90501-07029-00

Unavailable

21

SCREW, LVR FITTING

122-24535-00-00

Unavailable
