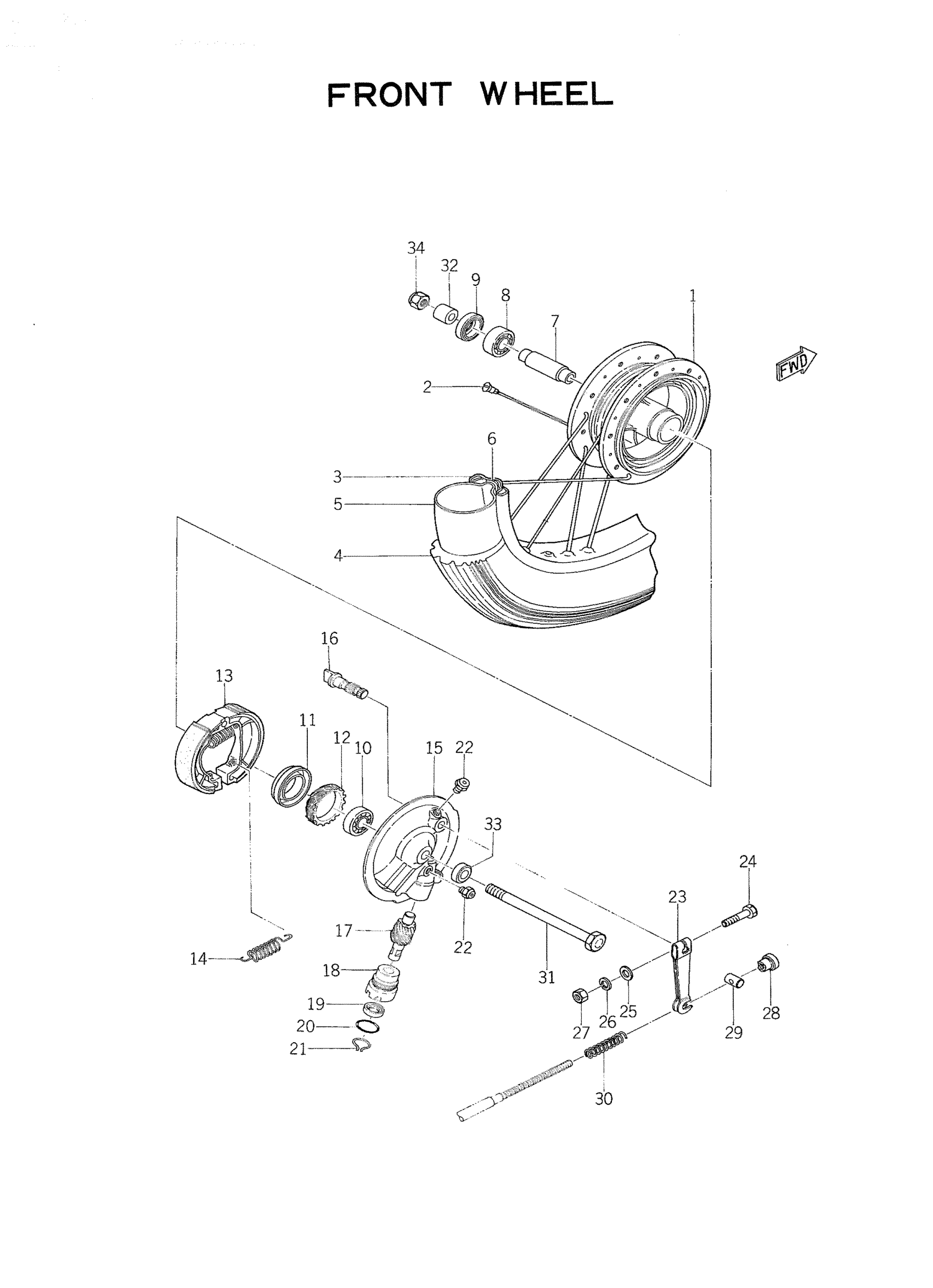

Yamaha YGS1 (YGS1) 129 1966 FRONT WHEEL Diagram

#

Description
Price

1

HUB,FRONT

102-25111-01-38

Unavailable

2

SPOKE SET, FRONT

122-25104-00-00

Unavailable

3

RIM 1.40X17

94414-17003-00

Unavailable

4

250X17 FRNTRIB

94125-17313-00

Unavailable

5

TUBE

94225-17082-00

Unavailable

6

BAND, RIM (2.50-17)

94332-17004-00

Unavailable

7

SPACER, BEARING

102-25117-00-00

Unavailable

8

BEARING

93306-20203-00

$24.99

9

OIL SEAL

93102-20001-00

Unavailable

10

BEARING

93306-20203-00

$24.99

11

OIL SEAL, OS-TYPE

93107-42001-00

Unavailable

12

GEAR, DRIVE

102-25135-01-00

Unavailable

13

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

14

SPRING, TENSION (566).

90506-16150-00

$9.49

15

PLATE, BRAKE SHOE

122-25121-02-38

Unavailable

16

CAM SHAFT

122-25351-02-00

Unavailable

17

GEAR, METER

122-25138-00-00

Unavailable

18

BUSHING

109-25136-00-00

Unavailable

19

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

20

O-RING (26H)

93210-14579-00

Unavailable

21

RING, STOP

102-25137-00-00

Unavailable

22

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

22

NIPPLE, GREASE

93700-06M03-00

Unavailable

24

BOLT, HEXAGON

97017-06030-00

Unavailable

25

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

NUT, HEXAGON

95380-06600-00

Unavailable

28

NUT (109-26344-00)

90179-06143-00

Unavailable

29

PIN,SPEC'L SHAPE

90249-10101-00

Unavailable

30

SPRING, COMPRESSION

90501-08038-00

Unavailable

31

BOLT

90109-10086-00

Unavailable

32

COLLAR (128-25183-00)

90387-10081-00

Unavailable

33

COLLAR, WHEEL SHAFT

128-25186-00-00

Unavailable

34

NUT, SELF LOCKING

90185-10031-00

Unavailable
