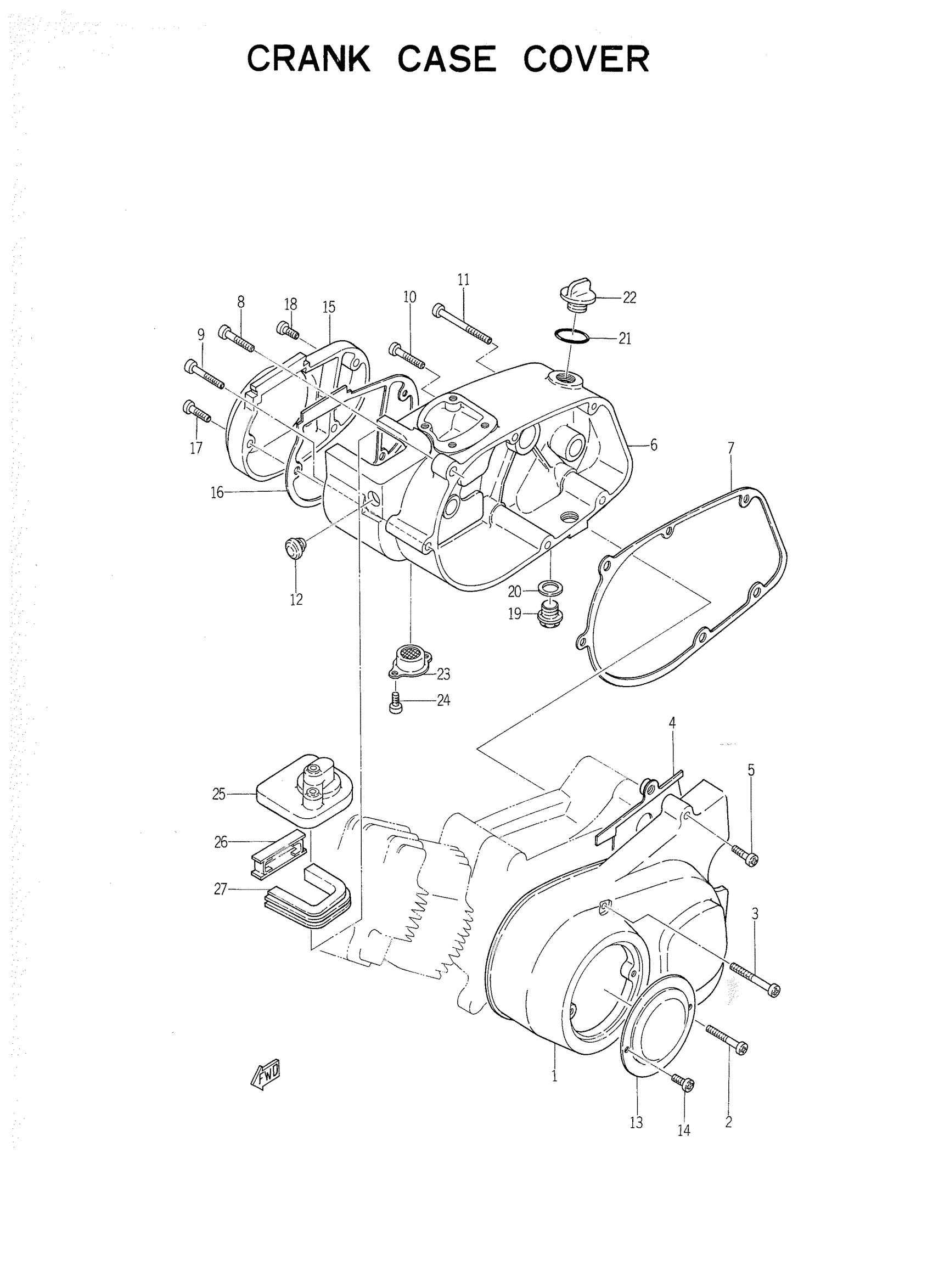

Yamaha YGS1 (YGS1) 129 1966 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE LH

122-15411-0-00

Unavailable

2

SCREW PAN HEAD

98580-06575-00

$12.49

3

SCREW, PAN

98507-06085-00

$6.99

4

COVER,CHAIN CASE

116-15418-00-00

Unavailable

5

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

6

COVER CRANKCASE RH

126-15420-00-00

Unavailable

7

GASKET,CRCS COVER

126-15451-09-00

Unavailable

8

SCREW PAN HEAD

98580-06040-00

$8.49

9

SCREW PAN HEAD

98501-06545-00

Unavailable

10

SCREW PAN HEAD

98580-06550-00

$8.49

11

SCREW PAN HEAD

98580-06575-00

$12.49

12

GROMMET 122154860000

90480-12012-00

$8.49

13

COVER, GENERATOR

123-15415-00-00

Unavailable

14

SCREW, PAN HEAD

92503-04008-00

Unavailable

15

COVER, CARBURETOR

126-15413-00-00

Unavailable

16

GASKET, CARB COVER

126-15453-00-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

PLUG,STRAIGHT SCRW

90340-14033-00

Unavailable

20

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

21

O-RING

93210-22028-00

Unavailable

22

PLUG, OIL

116-15363-00-00

Unavailable

23

CLEANER, DRAIN

126-15433-00-00

Unavailable

24

SCREW, PAN HEAD

92501-04008-00

Unavailable

25

CAP, CARBURETOR

122-14481-00-00

Unavailable

26

HOLDER, GUIDE

122-14459-00-00

Unavailable

27

GUIDE, ELEMENT

122-14458-00-00)

Unavailable
