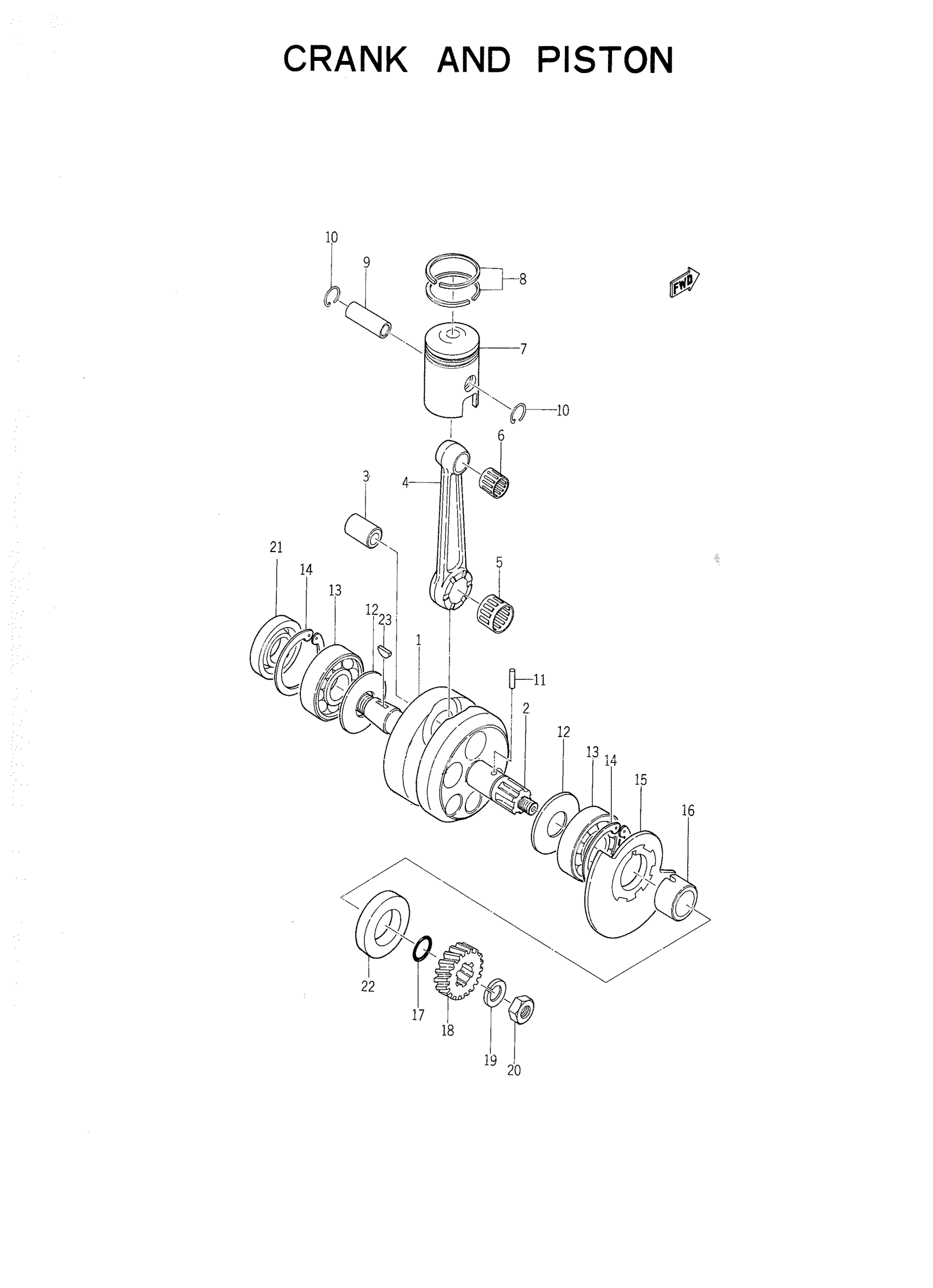

Yamaha YGS1 (YGS1) 129 1966 CRANK - PISTON Diagram

CRANKSHAFT ASSEMBLY

127-11400-00-00

Unavailable

CRANK 1

127-11412-00-00

Unavailable

CRANK 2

122-11422-01-00

Unavailable

. PIN, CRANK 1

3R1-11681-00-00

Unavailable

ROD, CONNECTING

3R1-11651-01-00

$125.99

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

PISTON STD 001

122-11631-60-97

Unavailable

PISTON 1 O/S 0.25

122-11635-01-00

Unavailable

PISTON 2 O/S 0.50

122-11636-01-00

Unavailable

PISTON RING SET (STD)

14N-11603-00-00

Unavailable

PISTON RING SET (0.25MM O/S)

14N-11604-00-00

Unavailable

PISTON RING SET (0.50MM O/S)

14N-11605-00-00

$30.99

PIN, PISTON

527-11633-00-00

$17.49

CIRCLIP 132116340000

93450-13022-00

$8.49

PIN, DOWEL

93604-12012-00

Unavailable

SHIM, CRANK 1

136-11561-00-04

Unavailable

BEARING(1GJ)

93306-20458-00

Unavailable

CIRCLIP, INNER

93450-47011-00

Unavailable

VALVE, ROTARY

122-13512-01-00

Unavailable

COLLAR, VALVE

122-13515-02-00

Unavailable

O-RING(3KX)

93210-180A6-00

Unavailable

GEAR, PRI DRIVE

122-16111-00-00

Unavailable

WASHER, LOCK

136-16135-00-00

Unavailable

NUT, HEXAGON

90170-12056-00

Unavailable

OIL SEAL

93102-28012-00

Unavailable

OIL SEAL (28X47X8-137)

93103-28012-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
