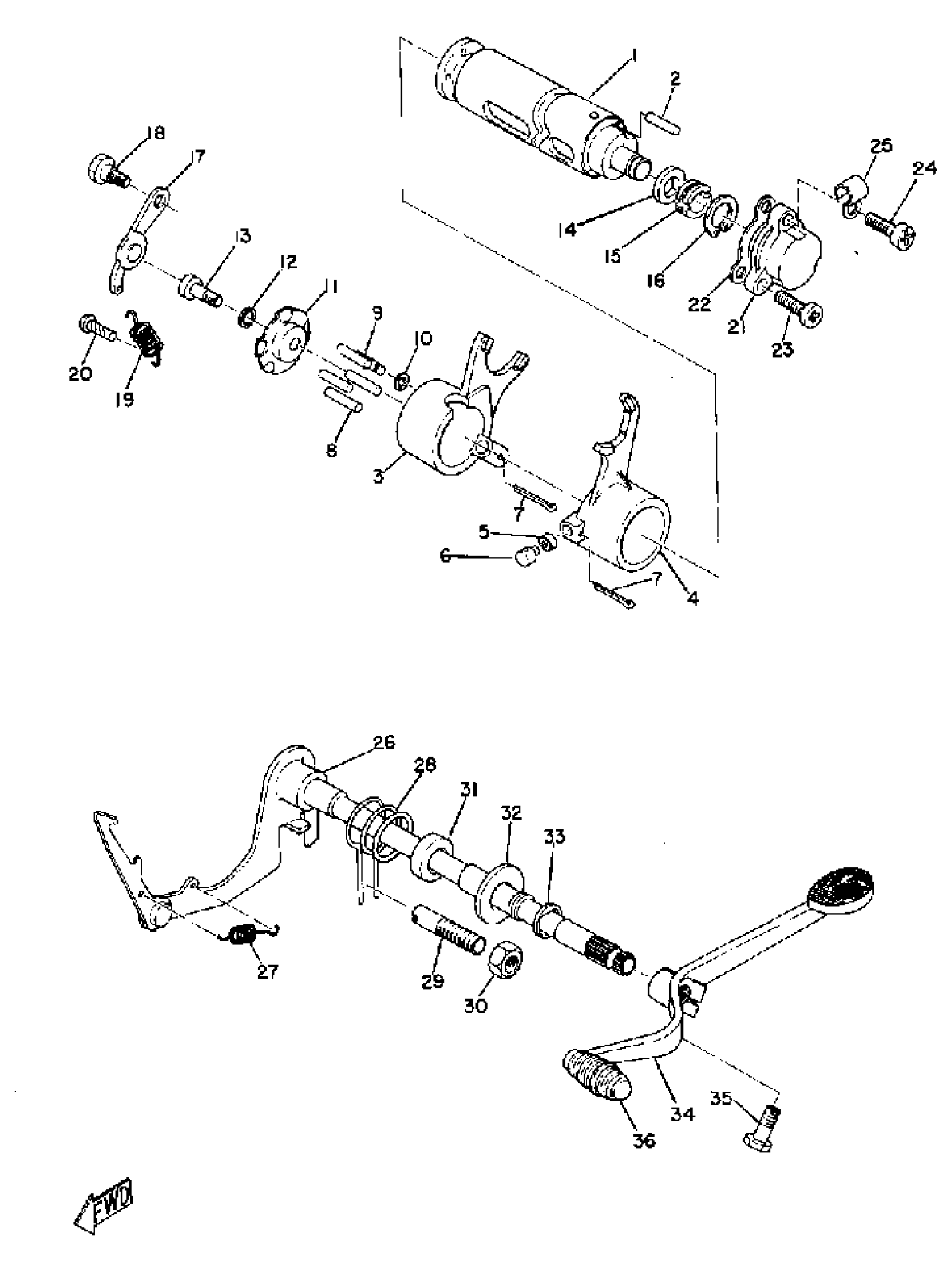

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 SHIFTER Diagram
#
1
SHIFTER ASSEMBLY
(166-18500-63-00)
Unavailable
1
CAM, SHIFT
(166-W1854-63-00)
Unavailable
2
PIN, DOWEL
(93605-20043-00)
Unavailable
3
FORK, SHIFT 2
(164-18512-00-00)
Unavailable
4
FORK, SHIFT 1
(164-18511-00-00)
Unavailable
5
ROLLER, CAM FOLWR
(164-18551-00-00)
Unavailable
6
PIN, STRAIGHT
(90250-10020-00)
Unavailable
9
. PIN, SPEC''L SHAPE (174-18544-00)
90249-04039-00
Unavailable
10
. CIRCLIP, E-TYPE
93430-03014-00
Unavailable
15
HOLDER, SHIFT CAM
307-18571-00-00
Unavailable
16
CIRCLIP
93440-15012-00
Unavailable
17
STOPPER LEVER ASSY
132-18140-01-00
Unavailable
18
BOLT
90109-06239-00
Unavailable
19
SPRING, TENSION (260)
90506-09112-00
Unavailable
20
HOOK, SPRING
132-16346-00-00
Unavailable
21
CLAMP
(90462-05012-00)
Unavailable
22
GASKET, PLUG BLIND
4EG-18579-00-00
Unavailable
23
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
24
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
25
CLAMP
(90462-05012-00)
Unavailable
26
SHIFT SHAFT ASSEMBLY.1
(164-18101-02-00)
Unavailable
27
SPRING TENSION 132181230000
90506-09009-00
Unavailable
28
SPRING TORSION 132181240000
90508-32207-00
Unavailable
29
SCREW, ADJUSTING (367)
90149-08094-00
Unavailable
30
. NUT
95380-08700-00
Unavailable
31
SEAL, OIL (30X)
93102-12321-00
Unavailable
32
WASHER, PLATE (353)
90201-12575-00
Unavailable
33
CIRCLIP
99006-10600-00
Unavailable
34
PEDAL, SHIFT
164-18111-01-00
Unavailable
34
PEDAL, SHIFT
(167-18111-01-93)
Unavailable
35
BOLT, HEXAGON
97017-06020-00
Unavailable
36
COVER, CHANGE PEDAL
132-18113-01-00
Unavailable
