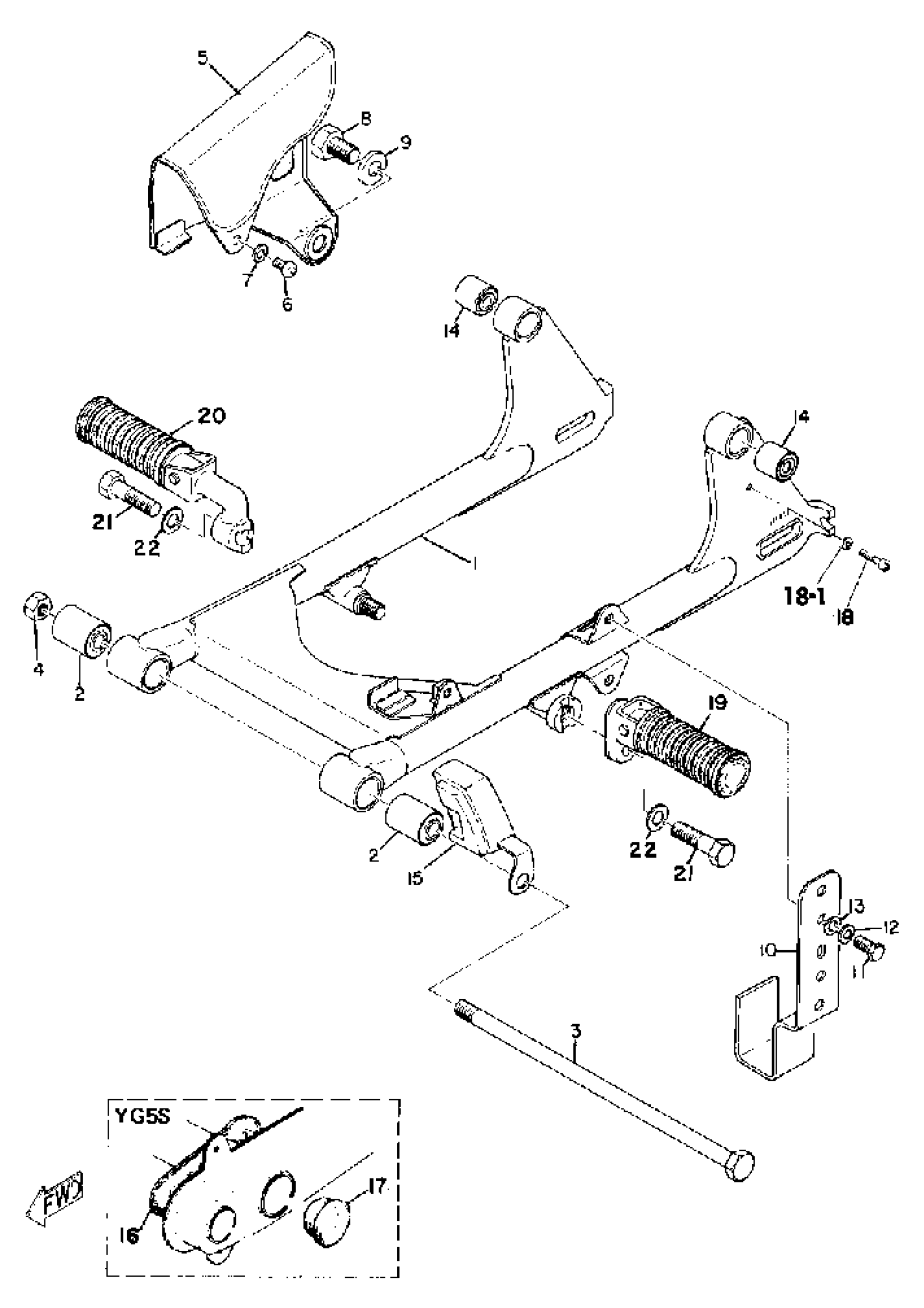

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 REAR ARM & CHAIN CASE Diagram

#

Description
Price

1

COVER, REAR FOOTREST

120-27433-00-00

$8.99

1

COVER, REAR FOOTREST

120-27433-00-00

$8.99

1

REAR ARM

(215-22110-01-33)

Unavailable

1

REAR ARM

(220-22110-00-62)

Unavailable

1

REAR ARM

(220-22110-00-63)

Unavailable

1

SCREW, PAN HEAD(3AH)

98507-05006-00

$3.55

1

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

2

BUSH 1

102-22123-00-00

Unavailable

3

SHAFT, PIVOT

(109-22141-00-00)

Unavailable

3

SHAFT, PIVOT

(167-22141-00-00)

Unavailable

4

NUT(3BM)

95314-10600-00

$2.39

5

CASE, CHAIN

(215-22311-00-35)

Unavailable

5

CASE, CHAIN

(220-22311-01-35)

Unavailable

6

SCREW PAN HEAD

98580-06010-00

$8.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BOLT, HEXAGON

(97321-12018-00)

Unavailable

9

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

10

GUARD, CHAIN

(215-22318-00-35)

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

14

BUSHING, REAR CUSHION

164-22216-00-00

Unavailable

15

PROTECTOR

(234-15493-00-00)

Unavailable

16

SEAL, GUARD

(296-22151-01-00)

Unavailable

17

CAP

(180-22117-00-00)

Unavailable

18

SCREW, PAN HEAD

98580-05020-00

Unavailable

19

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

19

RR FOOTREST ASSEMBLY 1

(167-27430-00-00)

Unavailable

20

RR FOOTREST ASSEMBLY 1

(178-27430-00-00)

Unavailable

21

BOLT, HEXAGON

97017-12035-00

Unavailable

22

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

23

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

23

NUT(3DM)

95304-12600-00

Unavailable
