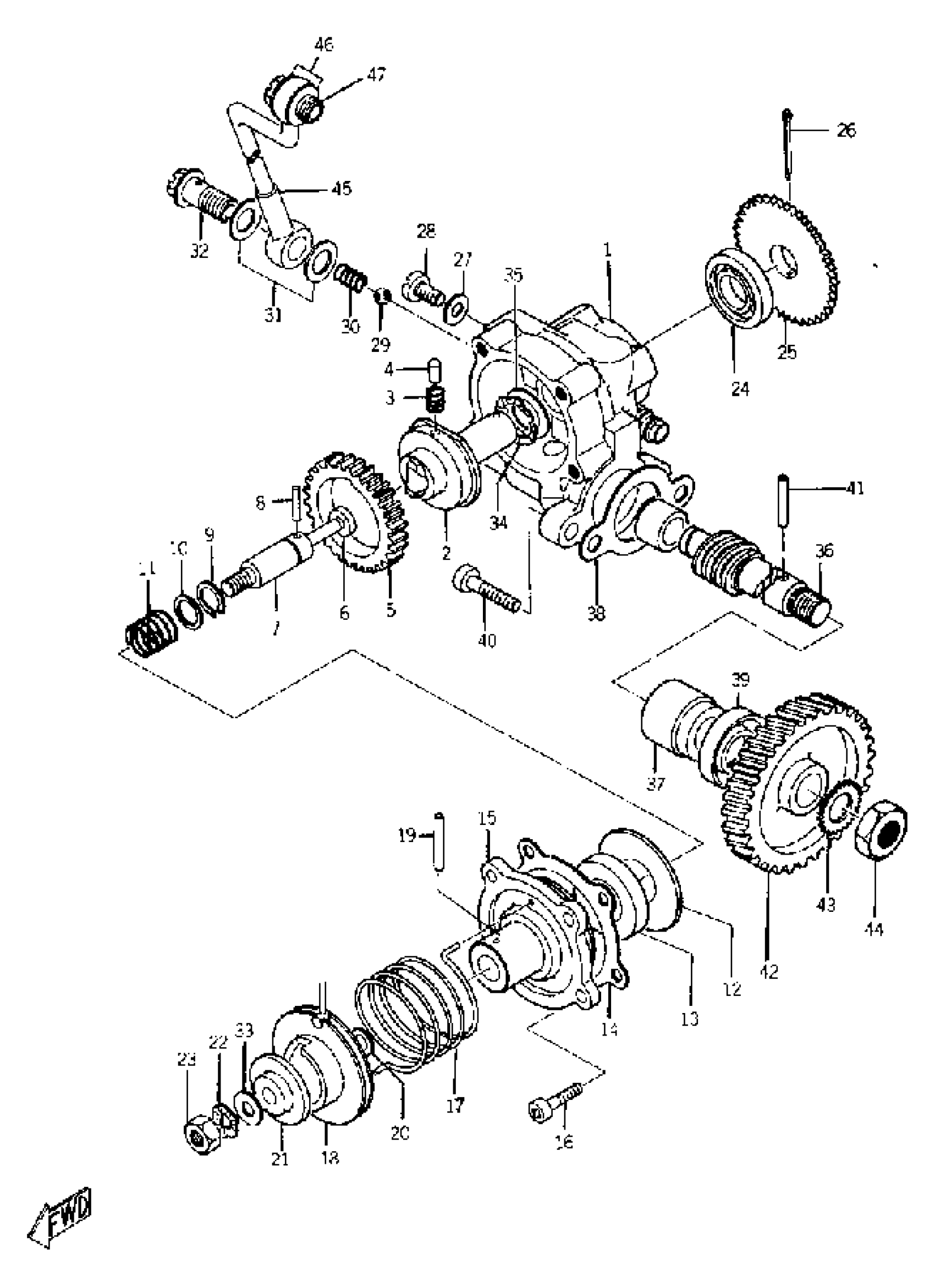

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSEMBLY
(180-13101-02-00)
Unavailable
21
PLATE, ADJUSTING
137-13138-01-00
Unavailable
25
PLATE, STARTER
(137-13128-00-00)
Unavailable
26
. PIN, COTTER
91401-12018-00
Unavailable
28
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
30
SPRING, COMPRESSION
(90501-02017-00)
Unavailable
32
BOLT UNION 137131650000
90401-06001-00
Unavailable
34
WASHER, WAVE (137)
90206-11016-00
Unavailable
35
PLATE, CAM THRUST
137-13148-00-00
Unavailable
36
SHAFT, WORM
(174-13175-00-00)
Unavailable
37
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
38
GASKET, PUMP CASE
126-13116-01-00
Unavailable
39
OIL SEAL (10X22X7-137)
93101-10002-00
Unavailable
40
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
40
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
41
PIN,DOWEL (137)
93603-22028-00
Unavailable
42
GEAR, PUMP DRIVE
(180-13178-00-00)
Unavailable
43
WASHER (688)
92990-08400-00
Unavailable
44
. NUT
95380-08700-00
Unavailable
45
HOSE (L700)
90445-05M07-00
Unavailable
47
BOLT UNION 137131650000
90401-06001-00
Unavailable
