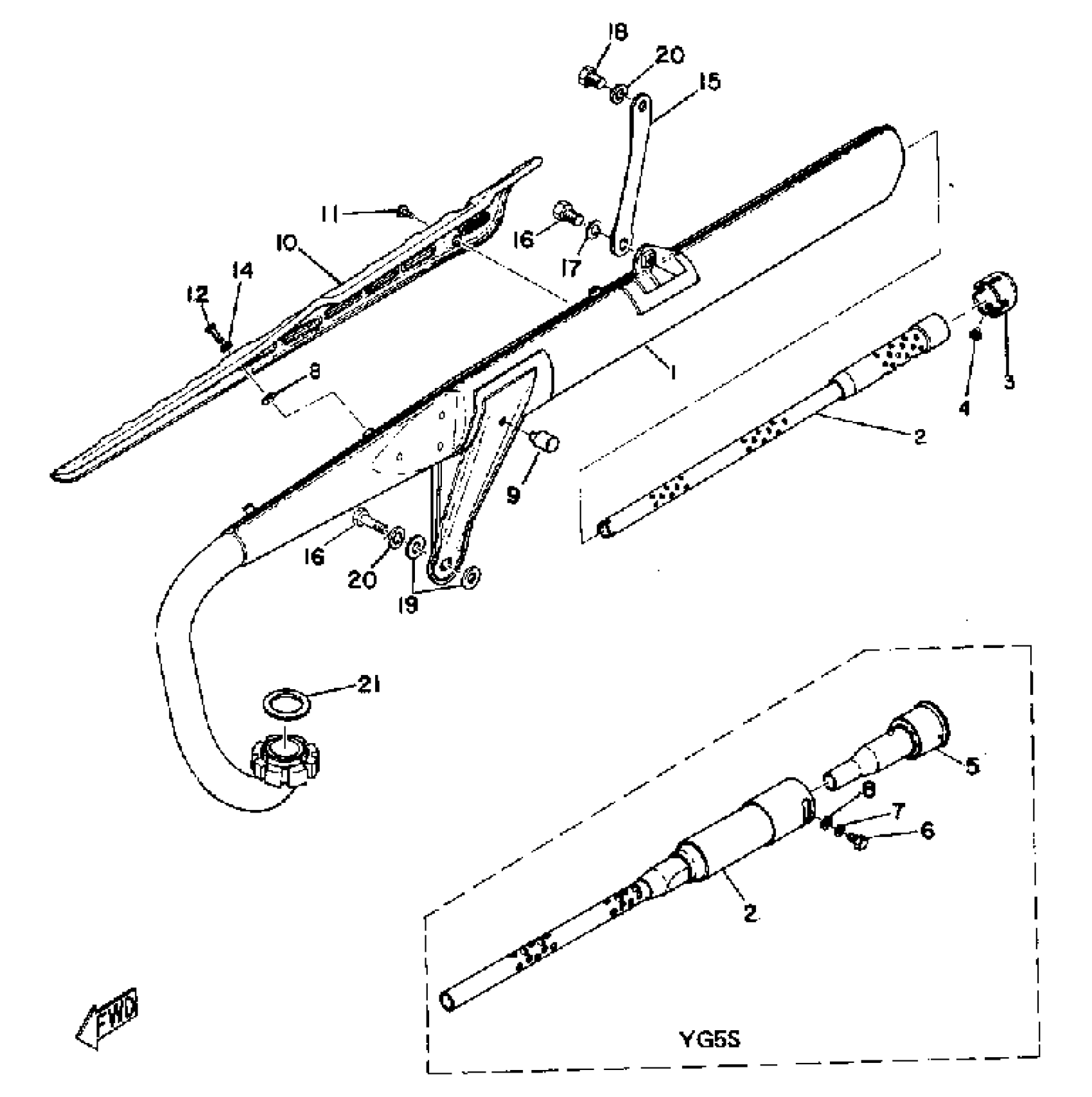

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 MUFFLER Diagram
#
1
EXHAUST PIPE ASSEMBLY L
(215-14610-31-00)
Unavailable
1
PROTECTER, MUFF 2
(220-14728-10-00)
Unavailable
1
EXHAUST PIPE ASSEMBLY L
(232-14610-30-00)
Unavailable
2
SILENCER, EXHAUST
(178-14753-00-00)
Unavailable
2
SILENCER, EXHAUST
(215-14753-30-00)
Unavailable
3
CAP, SILENCER
(128-14787-10-00)
Unavailable
4
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
5
PIPE, OUTLET
(178-14752-00-00)
Unavailable
6
. UNAVAILABLE IN PRICE BOOK (91101-06010)
732-06010-00-00
Unavailable
7
WASHER, SPRING
92995-06100-00
Unavailable
9
STOPPER
(220-14768-10-00)
Unavailable
10
PROTECTOR, MUFF 1
(167-14718-31-00)
Unavailable
10
PROTECTOR, MUFF 1
(220-14718-10-00)
Unavailable
11
SCREW, OVAL HEAD
(92603-06008-00)
Unavailable
11
SCREW, BIND(2TV)
98980-06008-00
Unavailable
12
SCREW,FLAT HEAD
98780-06010-00
Unavailable
12
SCREW, BIND(1JK)
98980-06010-00
Unavailable
13
WASHER, PLATE(3MT)
90202-05188-00
Unavailable
14
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
14
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
15
STAY, MUFFLER 1
(215-14771-00-00)
Unavailable
15
STAY, MUFFLER 1
(220-14771-10-00)
Unavailable
16
BOLT(JA9)
90101-08691-00
Unavailable
16
BOLT(JA9)
90101-08691-00
Unavailable
17
WASHER, PLAIN
92990-08200-00
Unavailable
18
BOLT
(90101-10054-00)
Unavailable
19
WASHER, PLATE
(90201-10127-00)
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
20
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
20
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
21
GASKET, EXST PIPE
(109-14613-01-00)
Unavailable
21
GASKET, EXHAUST PIPE
3MT-14613-00-00
Unavailable
