- YG5T_TRAILMASTER (YG5T_S) 1968
HEAD LAMP & TAIL LAMP

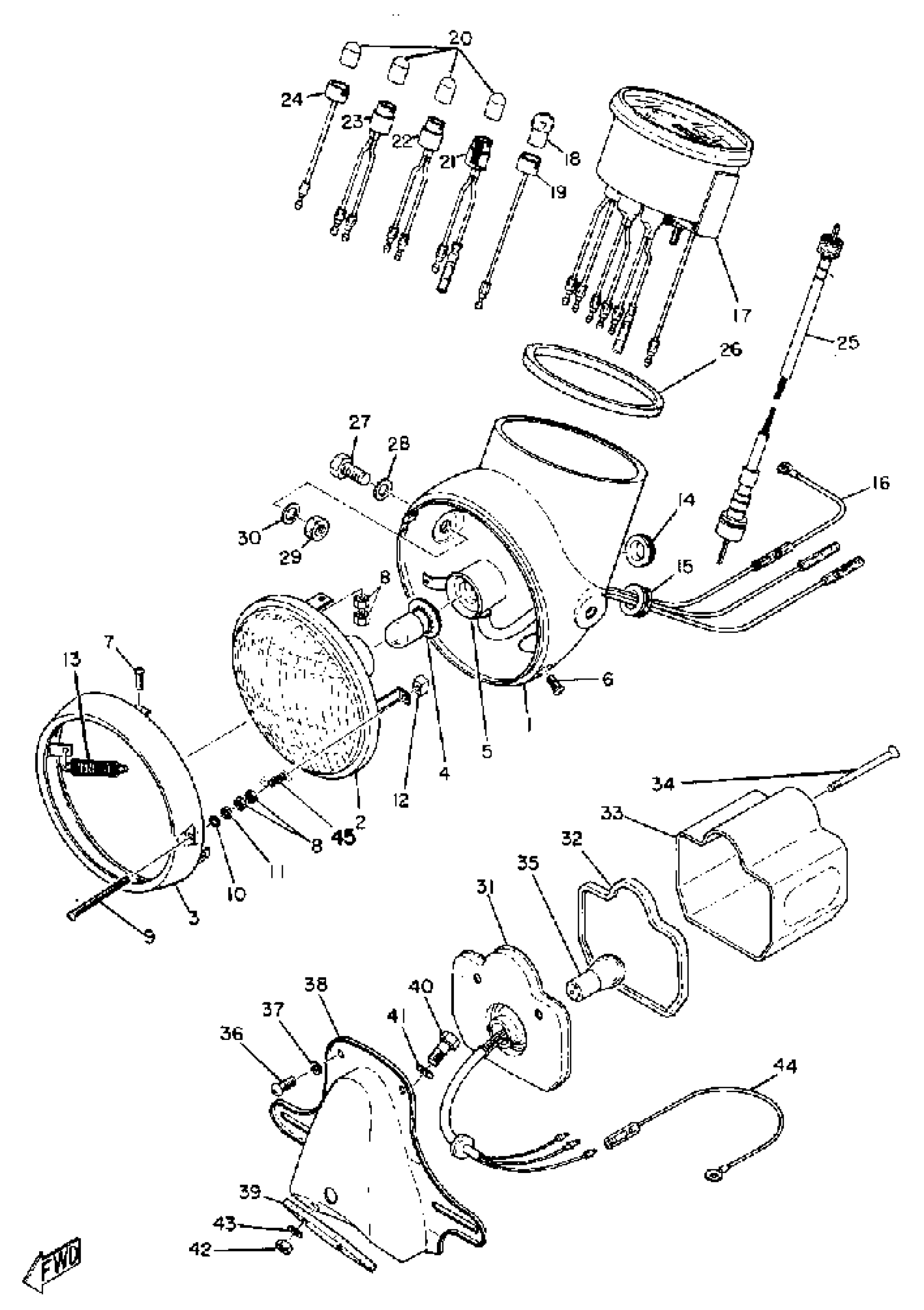

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 HEAD LAMP & TAIL LAMP Diagram
#
1
BULB, HL6V15/15W
104-84114-00-XX
Unavailable
1
BODY ASSEMBLY
(168-84330-01-81)
Unavailable
1
BODY, HEADLIGHT
(201-84311-00-22)
Unavailable
1
BODY ASSEMBLY, HEADLIGHT
(206-84130-00-62)
Unavailable
1
BASE, TAILLIGHT
(206-84511-61-00)
Unavailable
1
RIM, HEADLIGHT
(207-84115-61-00)
Unavailable
1
LENS ASSEMBLY
(207-84120-60-00)
Unavailable
1
BULB
256-84347-00-00
Unavailable
1
. SCREW, RIM ADJUSTING
3AA-84331-00-00
Unavailable
1
SCREW, PAN HEAD
(92503-04012-00)
Unavailable
1
SCREW, PAN HEAD
98511-04012-00
Unavailable
2
LENS ASSEMBLY
198-84320-60-00
Unavailable
2
TAILLIGHT UNIT ASSEMBLY
(202-84710-60-00)
Unavailable
2
NUT, ADJUST
(207-84134-61-00)
Unavailable
3
RIM, HEADLIGHT
(198-84315-61-00)
Unavailable
3
TAILLIGHT UNIT ASSEMBLY
(206-84510-61-00)
Unavailable
4
BULB, HEADLIGHT (12V-25/25W)
1YT-84314-00-00
Unavailable
5
SOCKET
(198-84312-61-00)
Unavailable
6
SCREW, RIM FITTING
(150-84125-00-00)
Unavailable
8
. SPACER
132-84328-60-00
Unavailable
8
. SPACER
132-84328-60-00
Unavailable
9
SCREW, RIM ADJUSTING
(198-84331-60-00)
Unavailable
10
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
11
. SPACER
132-84328-60-00
Unavailable
12
NUT, ADJUSTING
(132-84334-61-00)
Unavailable
13
SPRING
(132-84335-60-00)
Unavailable
14
GROMMET
(90480-23043-00)
Unavailable
14
GROMMET
(90480-23043-00)
Unavailable
15
GROMMET
(122-84154-00-00)
Unavailable
16
WIRE, EARTH
(195-84313-00-00)
Unavailable
17
SPEEDOMETER ASSEMBLY
(164-83510-70-00)
Unavailable
17
SPEEDOMETER ASSEMBLY
(185-83510-60-00)
Unavailable
18
BULB,(6V3W)
122-83516-10-00
Unavailable
18
BULB (12V-3.4W)
123-83516-21-00
Unavailable
19
. SOCKET, METER
(164-83536-20-00)
Unavailable
20
BULB
256-84347-00-00
Unavailable
21
. SOCKET, NEUTRAL
(164-83537-20-00)
Unavailable
21
SOCKET, NEUTRAL
(183-83537-20-00)
Unavailable
22
. SOCKET, FLASHER
(164-83538-20-00)
Unavailable
22
SOCKET, FLASHER
(183-83538-20-00)
Unavailable
23
. SOCKET, CHARGE
(164-83539-20-00)
Unavailable
24
SOCKET, HIGH-BEAM
(164-83529-70-00)
Unavailable
24
SOCKET, HIGH-BEAM
(183-83529-70-00)
Unavailable
25
SPEEDOMETER CABLE
167-83550-01-00
Unavailable
25
SPEEDOMETER CABLE
(212-83550-00-00)
Unavailable
26
DAMPER
(164-83513-00-00)
Unavailable
27
BOLT, HEXAGON
97013-08020-00
Unavailable
28
WASHER, PLAIN
92990-08200-00
Unavailable
29
NUT(6L2)
95333-08600-00
Unavailable
30
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
31
. BASE, TAILLIGHT
(202-84711-60-00)
Unavailable
32
SEAT, BASE
(168-84712-60-00)
Unavailable
33
. LENS, TAILLIGHT
(168-84721-60-00)
Unavailable
34
. SCREW, LENS FITTING
168-84724-00-00
Unavailable
35
BULB,TAIL LAMP(6V17/5.3W)
122-84514-30-00
Unavailable
35
BULB(12V32/3CP)1157
137-84714-61-XX
Unavailable
36
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
BRACKET, LICENSE
(164-84751-60-35)
Unavailable
39
DAMPER
(164-84753-60-00)
Unavailable
39
DAMPER
(174-84753-00-00)
Unavailable
40
BOLT 168217380000
90109-06017-00
Unavailable
41
WASHER, PLATE (5J0)
90201-085E6-00
Unavailable
42
NUT, HEXAGON
95380-06600-00
Unavailable
43
WASHER, SPRING
92995-06100-00
Unavailable
44
WIRE, EARTH LEAD
(164-84756-60-00)
Unavailable
45
SPRING, SCREW
(207-84132-60-00)
Unavailable
