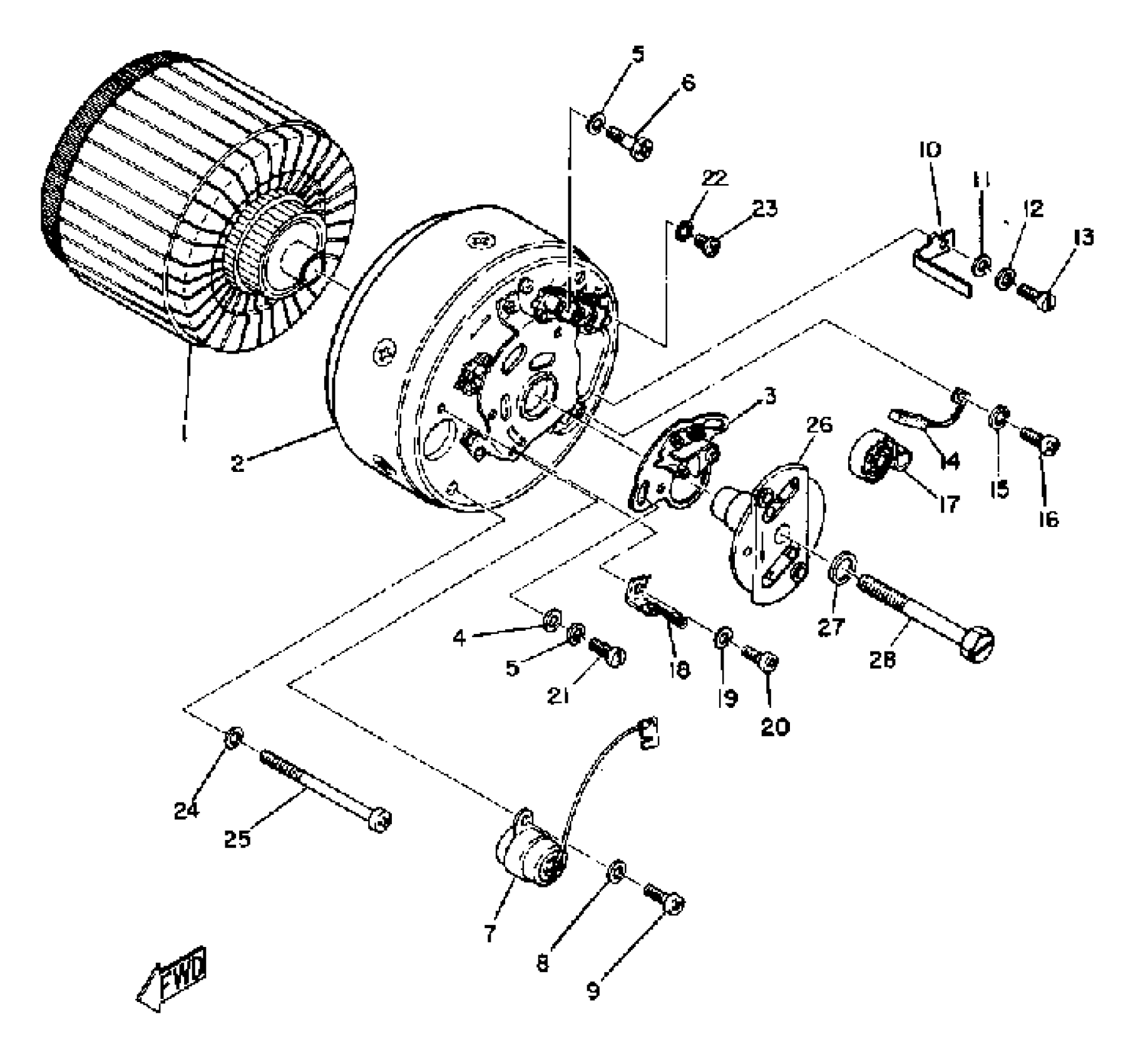

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 GENERATOR YG5T Diagram

#

Description
Price

1

STARTER GEN ASSEMBLY

(165-81100-22-00)

Unavailable

1

ARMATURE

(165-81155-21-00)

Unavailable

2

STATOR ASSEMBLY

(165-81110-22-00)

Unavailable

3

.. CONTACT BRKR ASSEMBLY

165-81121-21-00

Unavailable

4

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

7

CONDENSER 2

(165-81126-21-00)

Unavailable

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

10

PLATE, TIMING

(165-81132-20-00)

Unavailable

11

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

.. BRUSH

165-81111-20-00

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

17

LUBRICATOR

(131-81231-20-00)

Unavailable

17

SPRING, BRUSH

(165-81113-20-00)

Unavailable

19

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

20

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

21

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

SCREW, STATOR

(165-81135-21-00)

Unavailable

26

. GOVERNOR ASSEMBLY

165-81153-21-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

BOLT

(165-81152-20-00)

Unavailable
