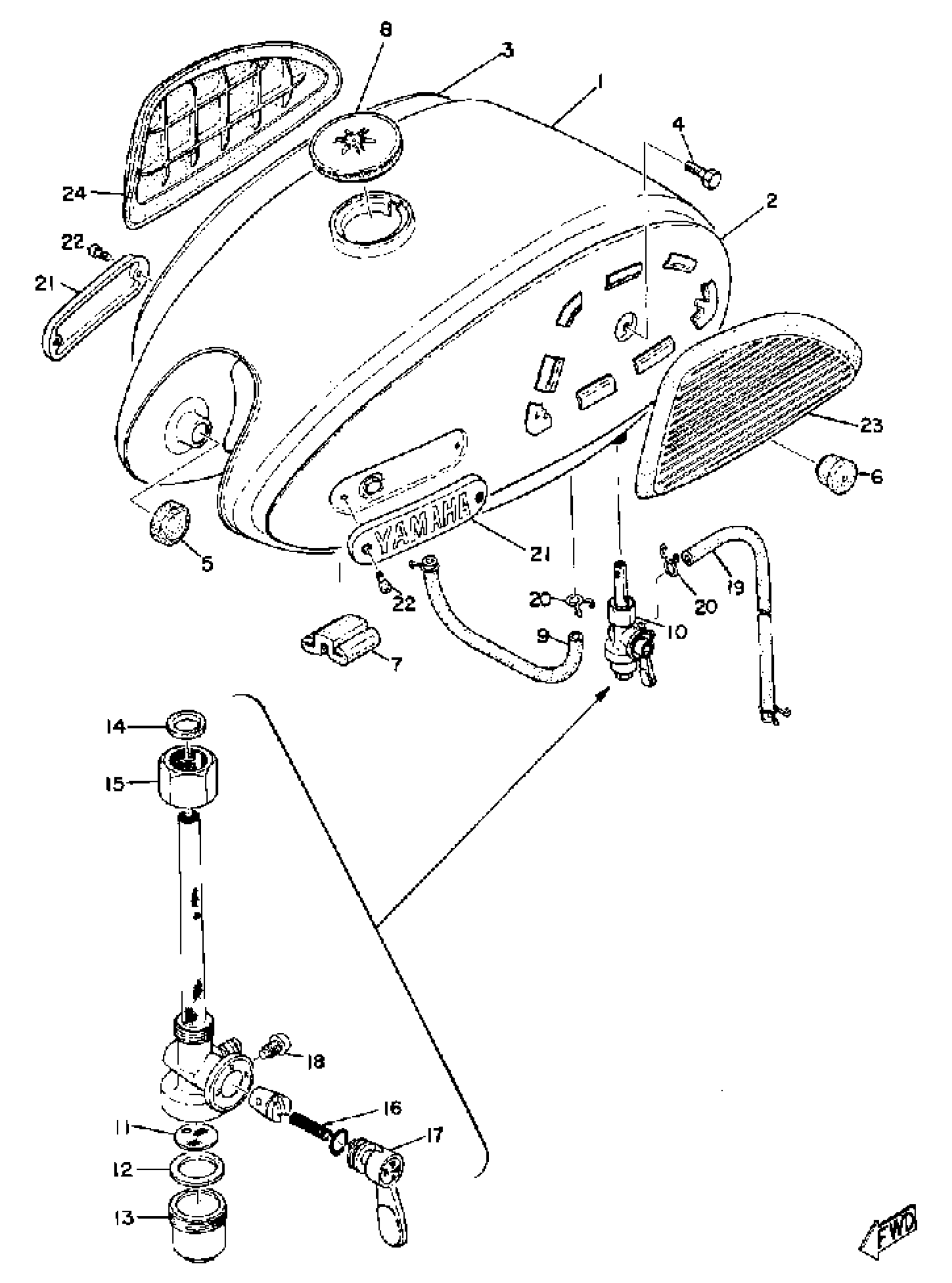

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(207-24110-01-63)

Unavailable

1

FUEL TANK

(207-24110-01-63)

Unavailable

2

COVER, SIDE 1

(207-24129-00-93)

Unavailable

2

COVER, SIDE 1

(207-24129-00-93)

Unavailable

3

COVER, SIDE 2

(207-24139-00-93)

Unavailable

4

BOLT,HEXAGON

97017-06008-00

$3.55

5

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

6

DAMPER, LOCATING 2

122-24182-01-00

Unavailable

7

DAMPER, LOCATING 3

(129-24183-00-00)

Unavailable

8

CAP ASSY

122-24610-01-00

$22.99

9

HOSE (L420)

90445-092K1-00

$12.49

10

FUEL COCK ASSY

367-24500-04-00

Unavailable

10

FUEL COCK ASSY

367-24500-04-00

Unavailable

10

FUEL COCK ASSY

367-24500-04-00

Unavailable

11

. NET, FILTER 2

122-24515-00-00

Unavailable

12

GASKET

102-24522-02-00

Unavailable

13

. CUP, FILTER

122-24521-00-00

Unavailable

14

GASKET, NUT

122-24532-00-00

Unavailable

15

. NUT

122-24531-00-00

Unavailable

16

SPRING, COMPRESSION

(90501-07029-00)

Unavailable

17

. LEVER, COCK

122-24524-00-00

Unavailable

18

SCREW, LVR FITTING

(122-24535-00-00)

Unavailable

18

SCREW, LVR FITTING

(127-24535-00-00)

Unavailable

19

PIPE, FUEL 1

(207-24311-00-00)

Unavailable

19

HOSE (L1500)

90445-090F6-00

Unavailable

20

CLIP 101235600

90467-08003-00

Unavailable

21

EMBLEM 1

132-24161-00-00

Unavailable

22

SCREW, PAN HEAD

92501-04010-00

Unavailable

22

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

23

GRIP, KNEE 1

(186-24171-00-00)

Unavailable

24

GRIP, KNEE 2

(186-24172-00-00)

Unavailable
