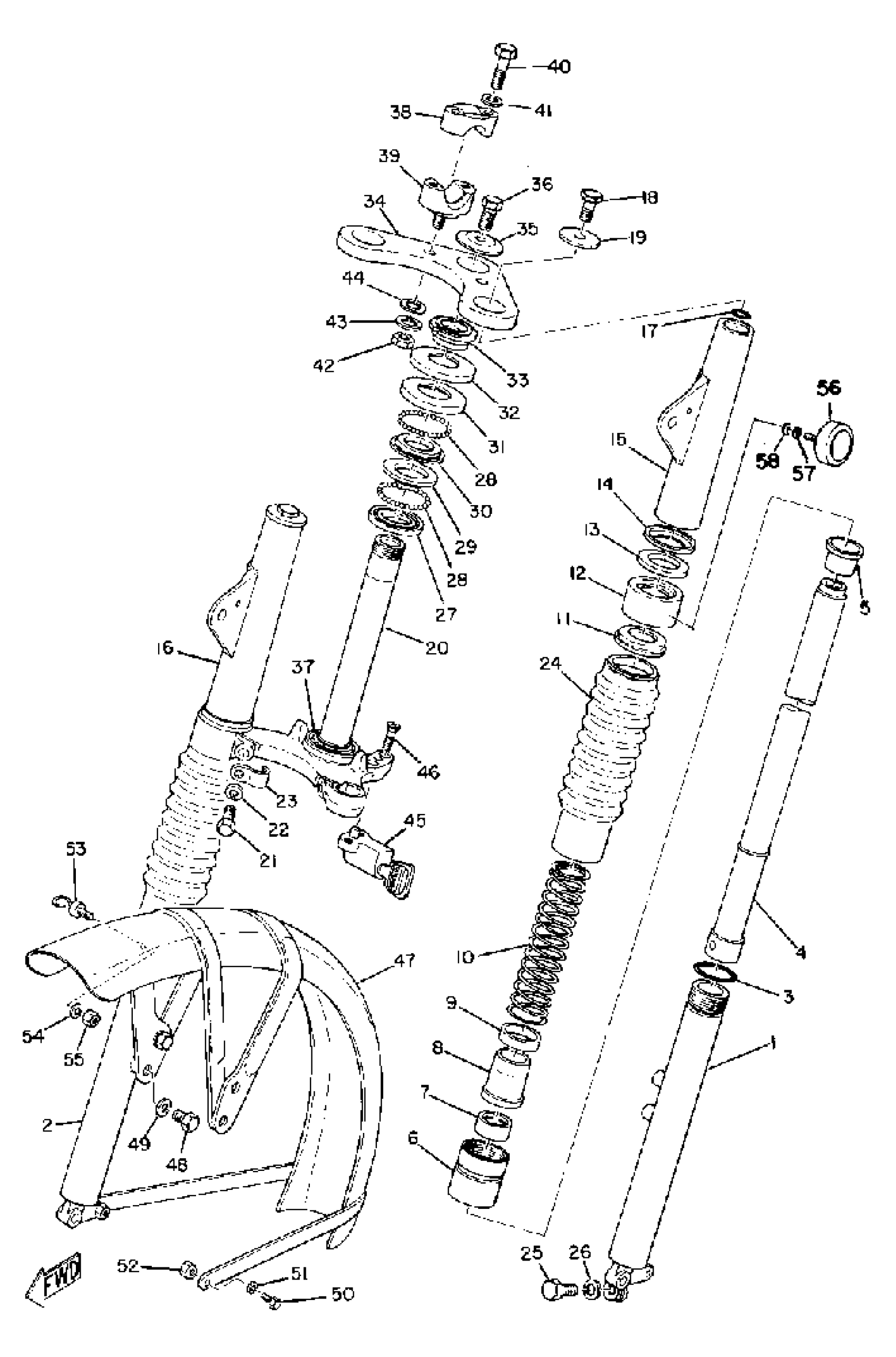

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 FRONT FORK Diagram
#
1
GUIDE, SPRING
(207-23117-00-00)
Unavailable
1
TUBE, INNER 2
(207-23134-01-00)
Unavailable
1
TUBE, OUTER 1
(209-23126-40-35)
Unavailable
1
FRONT FORK ASSEMBLY
(215-23100-40-63)
Unavailable
1
TUBE, OUTER 1
(215-23126-40-00)
Unavailable
1
FRONT FORK ASSEMBLY
(232-23100-60-55)
Unavailable
1
FRONT FORK ASSEMBLY
(232-23100-61-56)
Unavailable
1
COVER, OUTER 2
(232-23132-60-00)
Unavailable
2
TUBE, OUTER 2
(209-23136-40-35)
Unavailable
2
TUBE, OUTER 2
(215-23136-40-00)
Unavailable
3
. O-RING
122-23147-00-00
Unavailable
4
TUBE, INNER 1
(206-23124-00-00)
Unavailable
4
TUBE, INNER 1
(207-23124-01-00)
Unavailable
5
. METAL, SLIDE 1
109-23125-00-00
Unavailable
5
METAL, SLIDE 1
(357-23125-90-00)
Unavailable
6
OUTER NUT
(196-23150-41-00)
Unavailable
6
OUTER NUT
(209-23150-40-00)
Unavailable
7
OIL SEAL
109-23145-01-00
Unavailable
7
.. UNAVAILABLE IN PRICE BOOK
122-23145-51-00
Unavailable
7
OIL SEAL (5R6)
93110-27010-00
Unavailable
8
SEAT, SPRING LOWER
(109-23143-00-00)
Unavailable
8
SEAT, SPRING LOWER
(122-23143-00-00)
Unavailable
9
SPACER
(206-23118-00-00)
Unavailable
10
SPRING, FRONT FORK
(215-23141-40-00)
Unavailable
10
. SPRING FRONT FORK
355-23141-00-00
Unavailable
11
SEAT, SPRING UPPER
(209-23142-40-00)
Unavailable
11
SEAT, SPRING UPPER
(215-23142-41-00)
Unavailable
12
COVER, OUTER 1
(196-23122-40-00)
Unavailable
12
COVER, OUTER 1
(232-23122-60-00)
Unavailable
13
GASKET
(183-23163-00-00)
Unavailable
13
GASKET
(207-23163-00-00)
Unavailable
14
GUIDE, COVER LOWER
(196-23116-40-00)
Unavailable
14
GUIDE, COVER LOWER
(207-23116-01-00)
Unavailable
15
COVER, UPPER 1
(206-23121-60-33)
Unavailable
15
COVER, UPPER 1
(207-23121-00-62)
Unavailable
15
COVER, UPPER 1
(207-23121-00-63)
Unavailable
16
COVER, UPPER 2
(206-23131-60-63)
Unavailable
16
COVER, UPPER 1
(207-23121-00-62)
Unavailable
16
COVER, UPPER 1
(207-23121-00-63)
Unavailable
17
GASKET
307-23114-00-00
Unavailable
18
BOLT, CAP
205-23111-40-00
Unavailable
19
WASHER, CAP
207-23112-00-00
Unavailable
20
UNDER BRACKET
(206-23340-00-33)
Unavailable
20
UNDER BRACKET
(207-23340-00-33)
Unavailable
21
BOLT 1
122-23346-02-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
HOLDER, CABLE 1
(183-23318-00-00)
Unavailable
24
. BOOT, FRONT FORK
196-23191-40-00
Unavailable
25
BOLT, HEXAGON
97017-08025-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
RACE, BALL 2
B6E-23412-00-00
Unavailable
28
BALL
93501-04011-00
Unavailable
29
RACE, BALL 1
B6E-23411-00-00
Unavailable
30
RACE, BALL 1
4FP-F3411-20-00
Unavailable
31
RACE,BALL 2
4FP-F3412-10-00
Unavailable
32
COVER, BALL RACE
136-23415-00-00
Unavailable
33
NUT (122-23453-00)
90179-25051-00
Unavailable
34
CROWN, HANDLE
(207-23435-00-35)
Unavailable
35
WASHER (1YJ)
90209-10160-00
Unavailable
36
BOLT 1222345100
90105-10006-00
Unavailable
37
SEAL, DUST
164-23462-00-00
Unavailable
38
HOLDER, HANDLE UPPER
462-23441-01-00
Unavailable
39
UNAVAILABLE IN PRICE BOOK (122-23442-02-00)
122-23442-02-98
Unavailable
40
BOLT(3RV)
97014-06035-00
Unavailable
41
WASHER, SPRING
92995-06100-00
Unavailable
42
NUT(3BM)
95314-10600-00
Unavailable
43
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
44
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
45
STEERING LOCK ASSEMBLY
(137-23480-00-00)
Unavailable
46
SCREW, FLAT HEAD
98780-06016-00
Unavailable
47
FENDER, FRONT
(124-21510-00-35)
Unavailable
47
FENDER, FRONT
(220-21510-00-35)
Unavailable
48
BOLT(62E)
97013-08012-00
Unavailable
49
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
50
BOLT, HEXAGON
97017-06020-00
Unavailable
51
WASHER, SPRING
92995-06100-00
Unavailable
52
NUT, HEXAGON
95380-06600-00
Unavailable
53
HOLDER, CABLE
(174-21518-00-00)
Unavailable
54
WASHER, SPRING
92995-06100-00
Unavailable
55
NUT, HEXAGON
95380-06600-00
Unavailable
56
REFLECTOR, FRONT 1
(233-85111-00-00)
Unavailable
57
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
58
. WASHER, PLAIN
92990-05200-00
Unavailable
