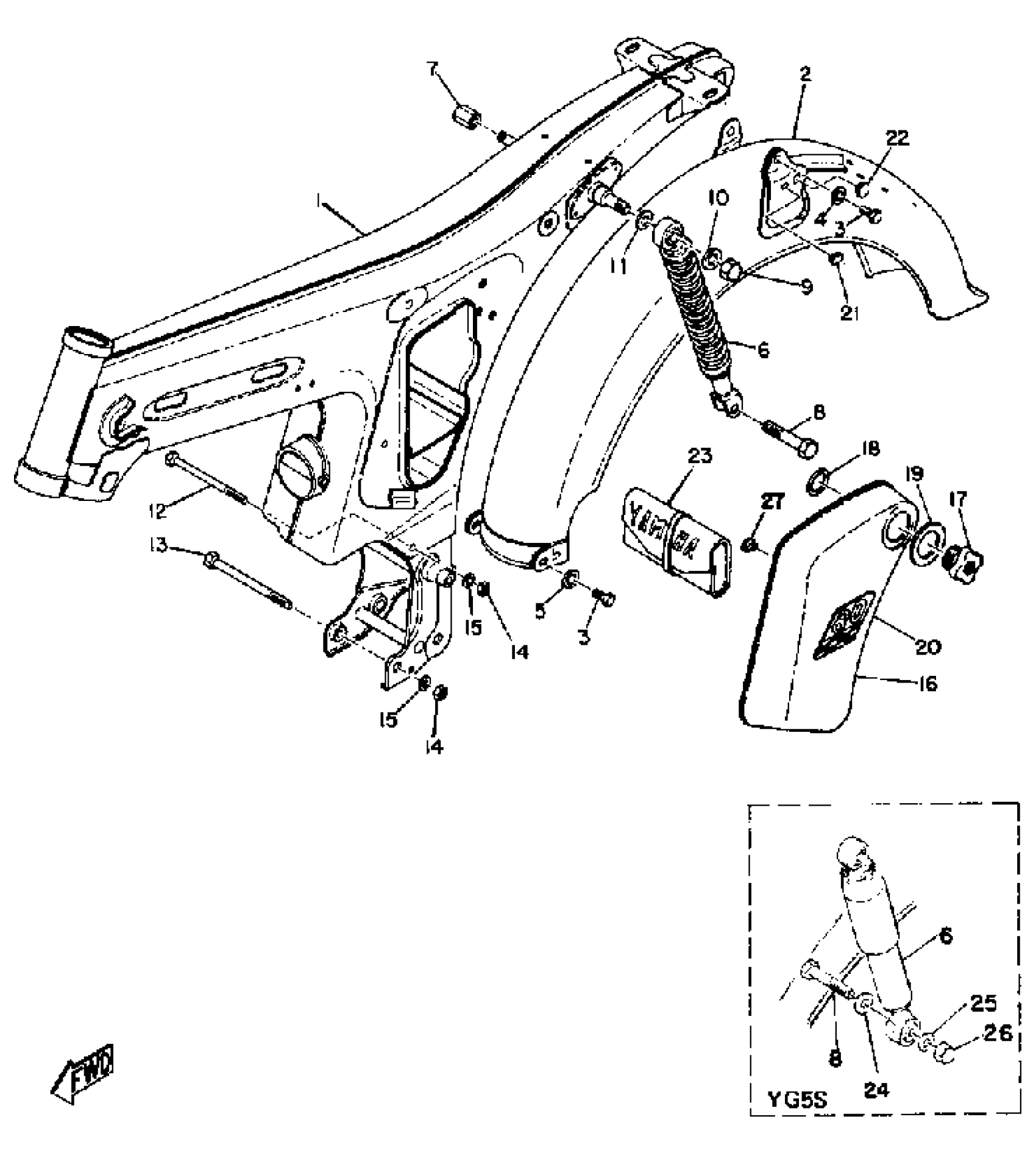

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 FRAME Diagram
#
1
EMBLEM 4
(129-21784-00-00)
Unavailable
1
FRAME
(168-21110-01-33)
Unavailable
1
FRAME
(207-21110-00-63)
Unavailable
1
FRAME
(207-21110-01-64)
Unavailable
1
NUT, HEXAGON (90170-08034)
90170-08156-00
Unavailable
2
FENDER, REAR
(168-21610-00-00)
Unavailable
2
FENDER, REAR
(215-21610-00-35)
Unavailable
4
WASHER, SPRING
92995-06100-00
Unavailable
6
SHK/ABS ASSEMBLY, REAR
(215-22210-20-00)
Unavailable
6
SHK/ABS ASSEMBLY, REAR
(220-22210-30-63)
Unavailable
7
NUT, HEXAGON
(90170-10050-00)
Unavailable
8
BOLT 2
(220-22242-00-00)
Unavailable
8
BOLT, DOME HEAD
(90106-08027-00)
Unavailable
9
NUT, CROWN (650)
95380-10800-00
Unavailable
10
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
10
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
11
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
12
BOLT, FLANGE(4EM)
95817-08120-00
Unavailable
13
BOLT, WASHER BASED (3Y2)
90105-08162-00
Unavailable
14
NUT(6L2)
95333-08600-00
Unavailable
15
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
16
COVER, SIDE 1
(164-21711-00-81)
Unavailable
16
COVER, SIDE 1
(220-21711-01-33)
Unavailable
16
COVER, SIDE 1
(220-21711-01-63)
Unavailable
17
KNOB, SIDE COVER 1
102-21714-00-00
Unavailable
18
RING, STOP
(102-21718-00-00)
Unavailable
19
SPACER, HANDLE 2 (648)
90202-34043-00
Unavailable
20
EMBLEM 7
(215-21787-00-00)
Unavailable
21
PLUG, BLIND
(185-83319-00-00)
Unavailable
22
PLUG, SPEC''L SHAPE
(90338-09060-00)
Unavailable
23
TOOL KIT
1E7-W2810-00-00
Unavailable
23
TOOL KIT
(207-28100-10-00)
Unavailable
24
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
25
WASHER PLATE 122222440000
90201-12175-00
Unavailable
26
NUT CROWN(663)
95380-12800-00
Unavailable
27
DAMPER, SIDE COVER
141-21717-00-00
Unavailable
