- YG5T_TRAILMASTER (YG5T_S) 1968
ELECTRICAL YG5S

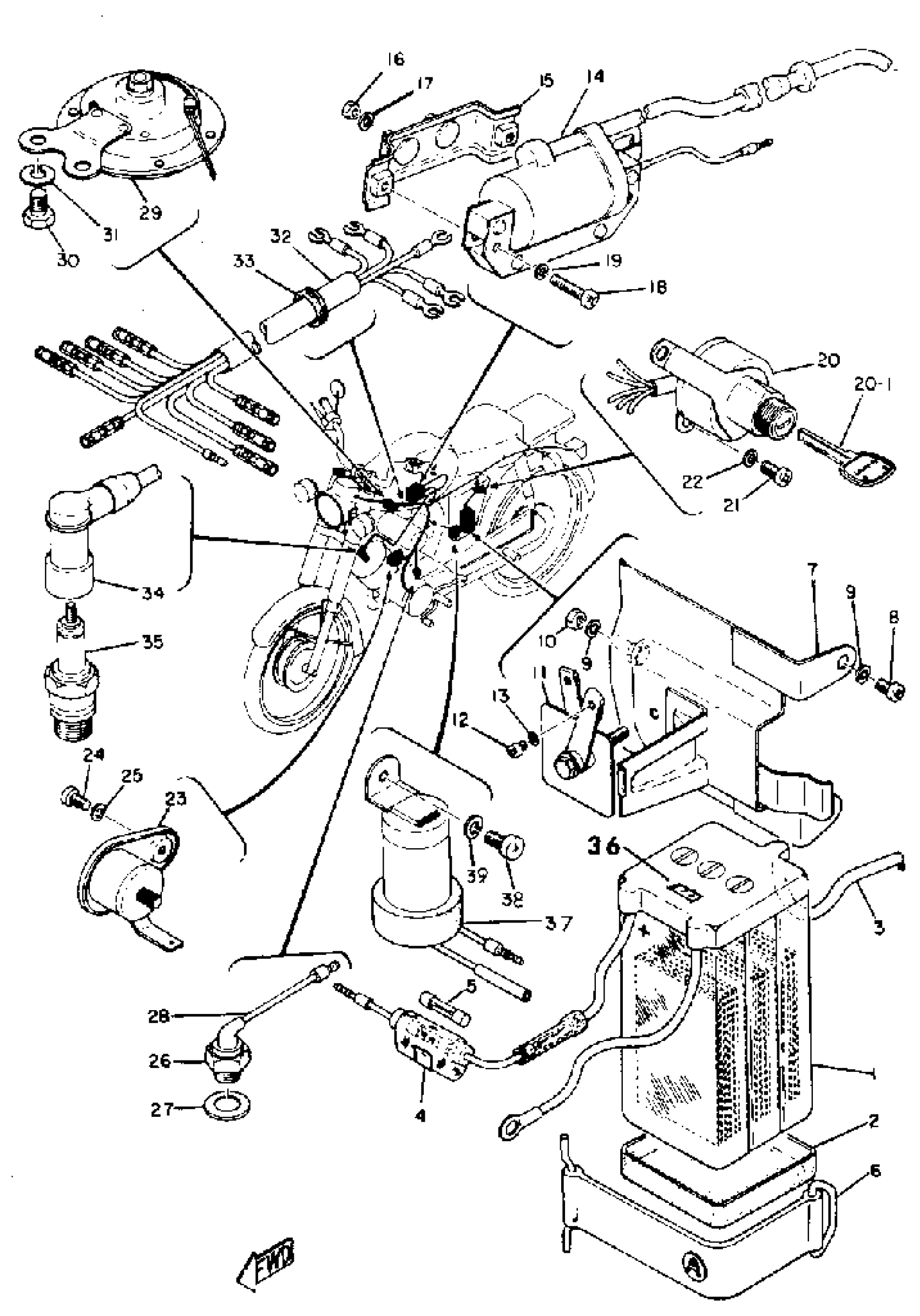

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 ELECTRICAL YG5S Diagram
#
1
CAP, BATTERY
(104-82111-20-00)
Unavailable
1
UNAVAILABLE IN PRICE BOOK (315-82110-10)
315-82110-29-00
Unavailable
2
SEAT, BATTERY
(104-82122-00-00)
Unavailable
3
PIPE,BREATHER
2RH-21826-00-00
Unavailable
6
BAND, BATTERY
(164-82131-00-00)
Unavailable
7
PLATE, RECTIFR FTNG
(220-81975-00-00)
Unavailable
8
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
10
NUT, HEXAGON
95380-06600-00
Unavailable
11
RECTIFIER ASSEMBLY
(127-81970-40-00)
Unavailable
14
IGNITION COIL ASSEMBLY
206-82310-41-00
Unavailable
15
HOLDER, COIL FTNG
(206-82312-01-00)
Unavailable
16
NUT, HEXAGON
95380-06600-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
SCREW, PAN HEAD
98580-05020-00
Unavailable
19
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
20
MAIN SWITCH ASSEMBLY
302-82508-20-00
Unavailable
21
SCREW PAN HEAD
98580-06010-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
STOPSWITCHASSY
122-82530-02-00
Unavailable
24
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
NEUTRAL SWITCH ASSEMBLY
(146-82540-01-00)
Unavailable
27
WASHER, PLATE
90201-12790-00
Unavailable
28
WIRE, LEAD
(164-82541-00-00)
Unavailable
29
HORN
(122-83371-11-00)
Unavailable
30
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
WIRE HARNESS ASSEMBLY
(232-82590-20-00)
Unavailable
33
GROMMET
(90480-13016-00)
Unavailable
34
PLUG CAP ASSY
56J-82370-00-00
Unavailable
35
B7HS NGK 4PK
B7H-S0000-00-00
Unavailable
36
LABEL, BATTERY
40A-82141-G0-00
Unavailable
37
FLASHER RELAY ASSEMBLY
(220-83350-10-00)
Unavailable
38
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
39
WASHER, SPRING
92995-06100-00
Unavailable
