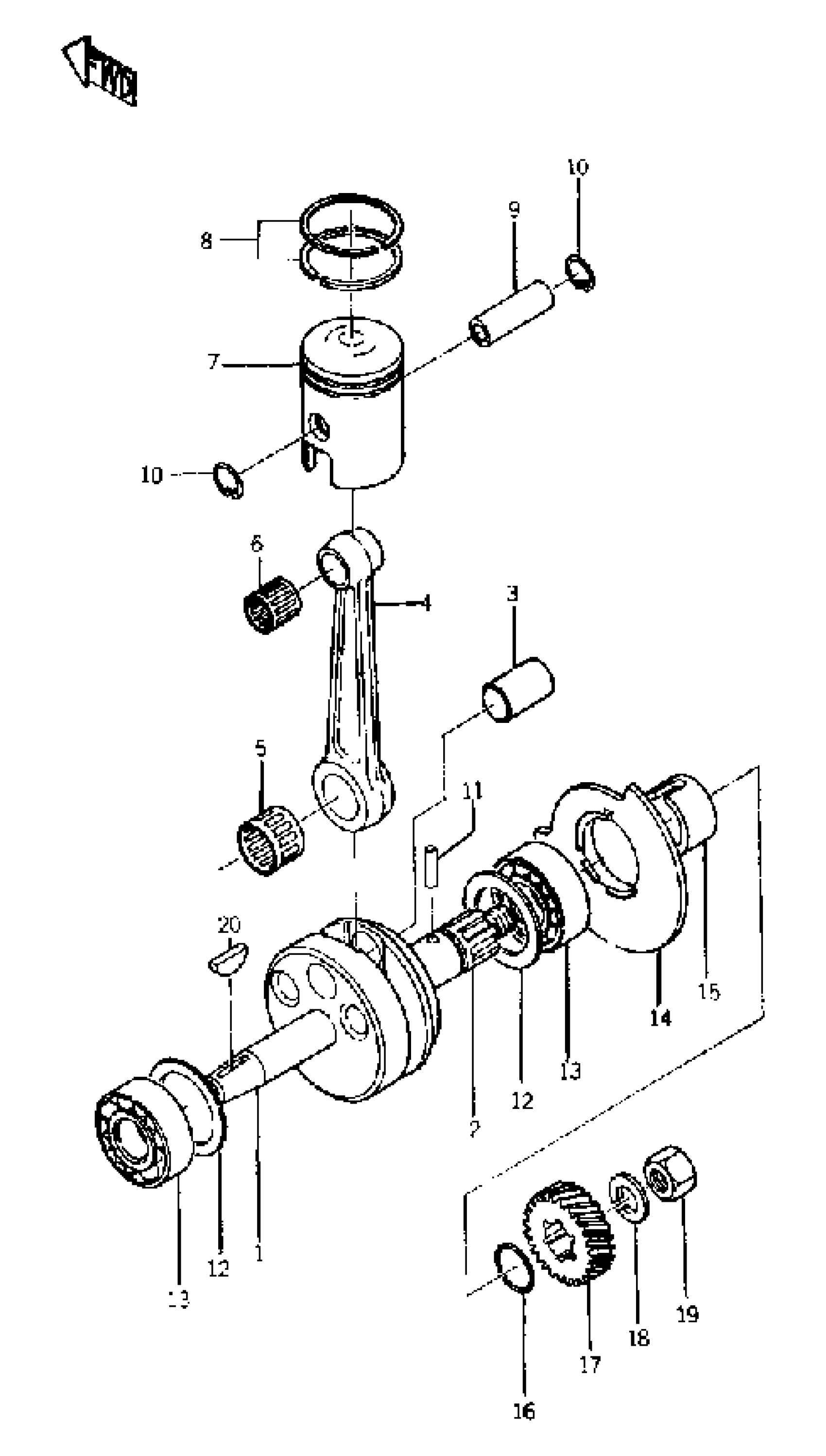

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 CRANK SHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(180-11400-01-00)

Unavailable

1

CRANK 1

(180-11412-01-00)

Unavailable

1

PISTON RINGSET 1ST

(180-11601-10-00)

Unavailable

1

RING SET 1ST KS

(180-11601-11-00)

Unavailable

1

PISTON 1 O/S 0.25

(180-11635-01-00)

Unavailable

1

CRANKSHAFT ASSEMBLY

(215-11400-00-00)

Unavailable

1

CRANK 1

(215-11412-00-00)

Unavailable

2

CRANK 2

(180-11422-00-00)

Unavailable

2

PISTON RINGSET 2ND

(180-11601-20-00)

Unavailable

2

RING SET 2ND KS

(180-11601-21-00)

Unavailable

2

PISTON 2 O/S 0.50

(180-11636-01-00)

Unavailable

3

ROD, CONNECTING

(180-11651-00-00)

Unavailable

3

. PIN, CRANK 1

3R1-11681-00-00

Unavailable

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

6

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

7

PISTON STD (180-11631-00-96)

180-11631-01-96

Unavailable

8

PISTON RINGSET STD

(180-11601-00-00)

Unavailable

8

RING SET STD KS

180-11601-01-00

Unavailable

9

PIN, PISTON

527-11633-00-00

Unavailable

10

CIRCLIP 132116340000

93450-13022-00

Unavailable

11

PIN,DOWEL (137)

93604-14012-00

Unavailable

12

SHIM, CRANK 1

136-11561-00-04

Unavailable

13

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

14

VALVE, ROTARY

(166-13512-00-00)

Unavailable

14

VALVE, ROTARY

(180-13512-00-00)

Unavailable

15

COLLAR, VALVE

(122-13515-02-00)

Unavailable

16

O-RING(3KX)

93210-180A6-00

Unavailable

17

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

18

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

19

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

20

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
