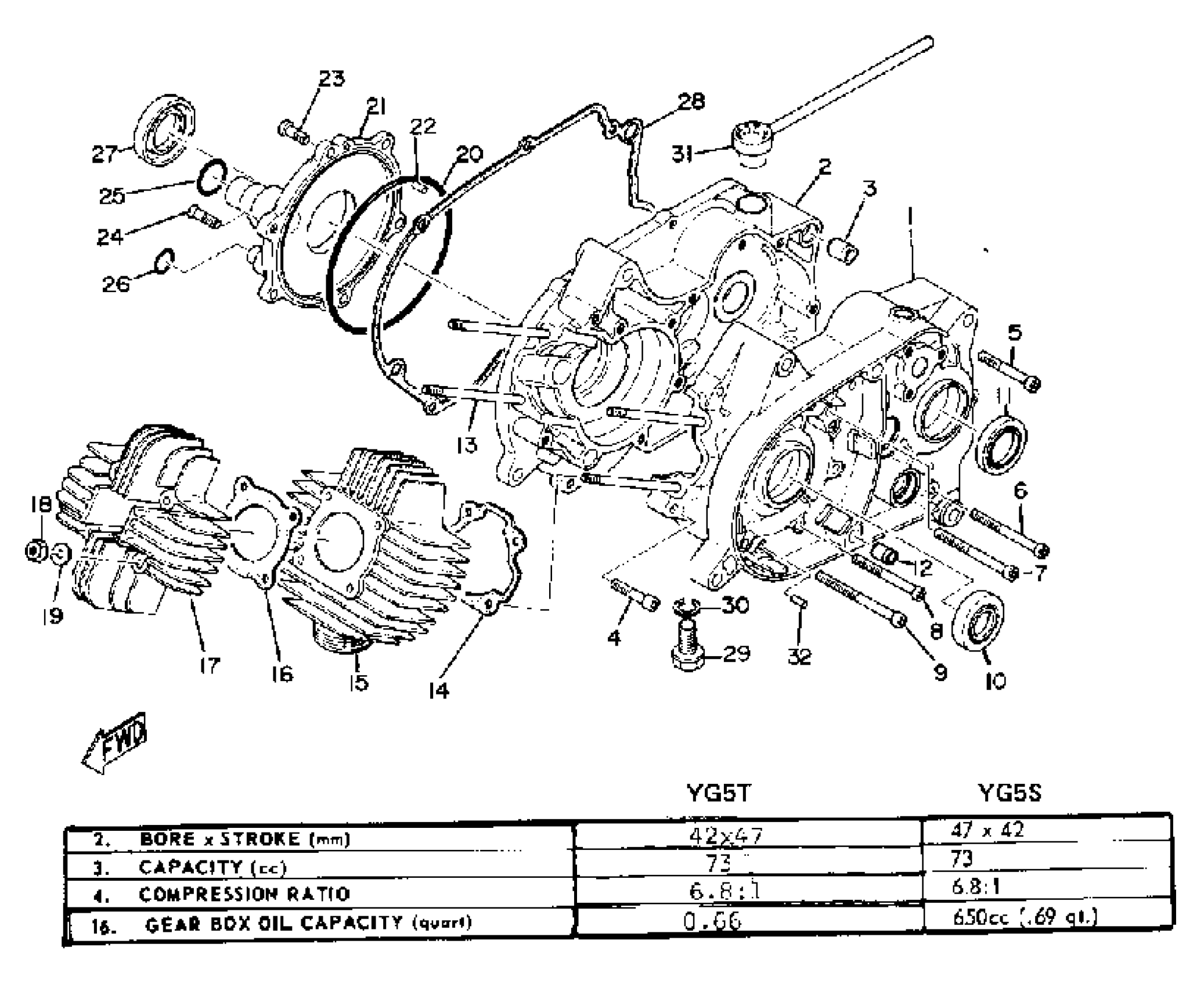

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 CRANK CASE Diagram
#
Description
Price
1
CRANKCASE 1
(180-15111-02-00)
Unavailable
2
CRANKCASE 2
(180-15121-03-00)
Unavailable
4
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
6
SCREW, BIND (JH1)
98580-06560-00
Unavailable
7
SCREW PAN HEAD
98580-06565-00
Unavailable
8
SCREW, PANHED (GC2)
98580-06555-00
Unavailable
14
GASKET, CLYNDR
122-11351-10-00
Unavailable
15
CYLINDER 1
(180-11311-00-00)
Unavailable
16
GASKET, CYLINDER HEAD
2F4-11181-00-00
Unavailable
17
HEAD, CYLINDER 1
(180-11111-02-00)
Unavailable
18
NUT, HEXAGON
95380-06600-00
Unavailable
19
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
20
RING,RUBBER
180-13554-00-00
Unavailable
21
COVER, VALVE
(180-13551-00-00)
Unavailable
22
PIN,DOWEL (137)
93604-14012-00
Unavailable
23
SCREW, PAN
98507-06014-00
Unavailable
24
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
25
O-RING (122)
93210-23029-00
Unavailable
26
O-RING (137)
93210-12014-00
Unavailable
27
OIL SEAL (28X47X8-137)
93103-28012-00
Unavailable
28
GASKET, CRCS COVER
164-15451-01-00
Unavailable
29
PLUG STRAIGTSCREW 132153510000
90340-12005-00
Unavailable
30
GASKET (3JD1)
90430-12207-00
Unavailable
31
BREATHER
206-15371-00-00
Unavailable
32
PIN, DOWEL
93603-14026-00
Unavailable
