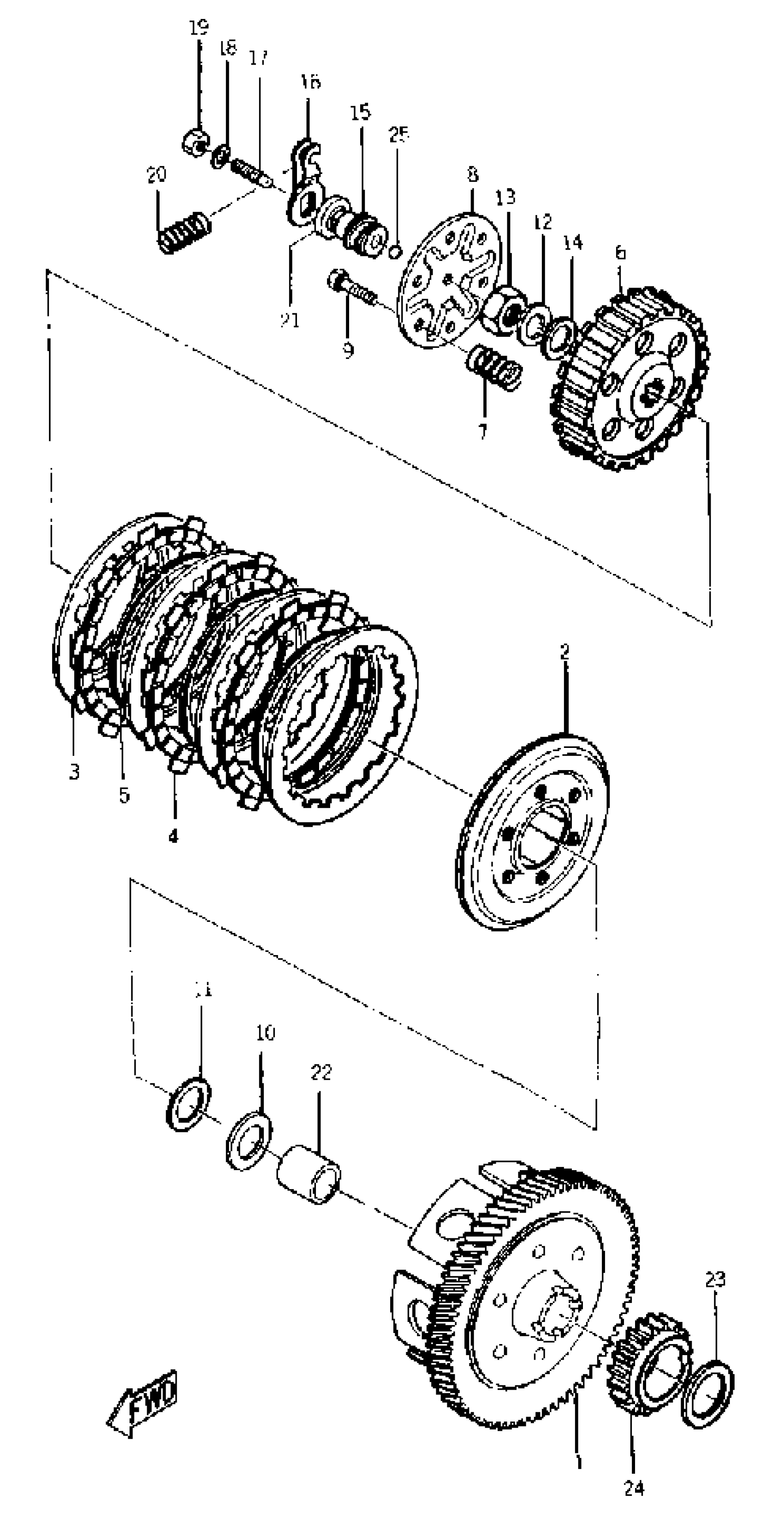

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 CLUTCH Diagram
#
Description
Price
1
PRI DRVN GEAR
(180-16150-02-00)
Unavailable
1
CLUTCH ASSEMBLY
(180-16301-01-00)
Unavailable
1
SCREW, PAN HEAD
98580-05020-00
Unavailable
2
PLATE, PRESSURE 2
(131-16352-01-00)
Unavailable
2
PLATE, PRESSURE 2
(131-16352-01-00)
Unavailable
5
RING, CUSHION
131-16367-00-00
Unavailable
6
BOSS, CLUTCH
(180-16371-01-00)
Unavailable
7
SPRING COMPRESSION180163330000
90501-20126-00
Unavailable
8
PLATE, PRESSURE 1
(122-16351-90-00)
Unavailable
10
WASHER, PLATE
90201-23315-00
Unavailable
13
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
14
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
15
SCREW, PUSH
164-16341-01-00
Unavailable
16
LEVER, PUSH
(164-16342-01-00)
Unavailable
17
BOLT, SET
(90113-06012-00)
Unavailable
18
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
19
NUT(650)
95380-06700-00
Unavailable
20
SPRING, COMPRESSION
(90501-08040-00)
Unavailable
21
OIL SEAL, SO-TYPE
93104-15009-00
Unavailable
22
SPACER (517)
90560-17146-00
Unavailable
24
GEAR, KICK PINION
(254-15631-00-00)
Unavailable
25
BALL
93501-04011-00
Unavailable
