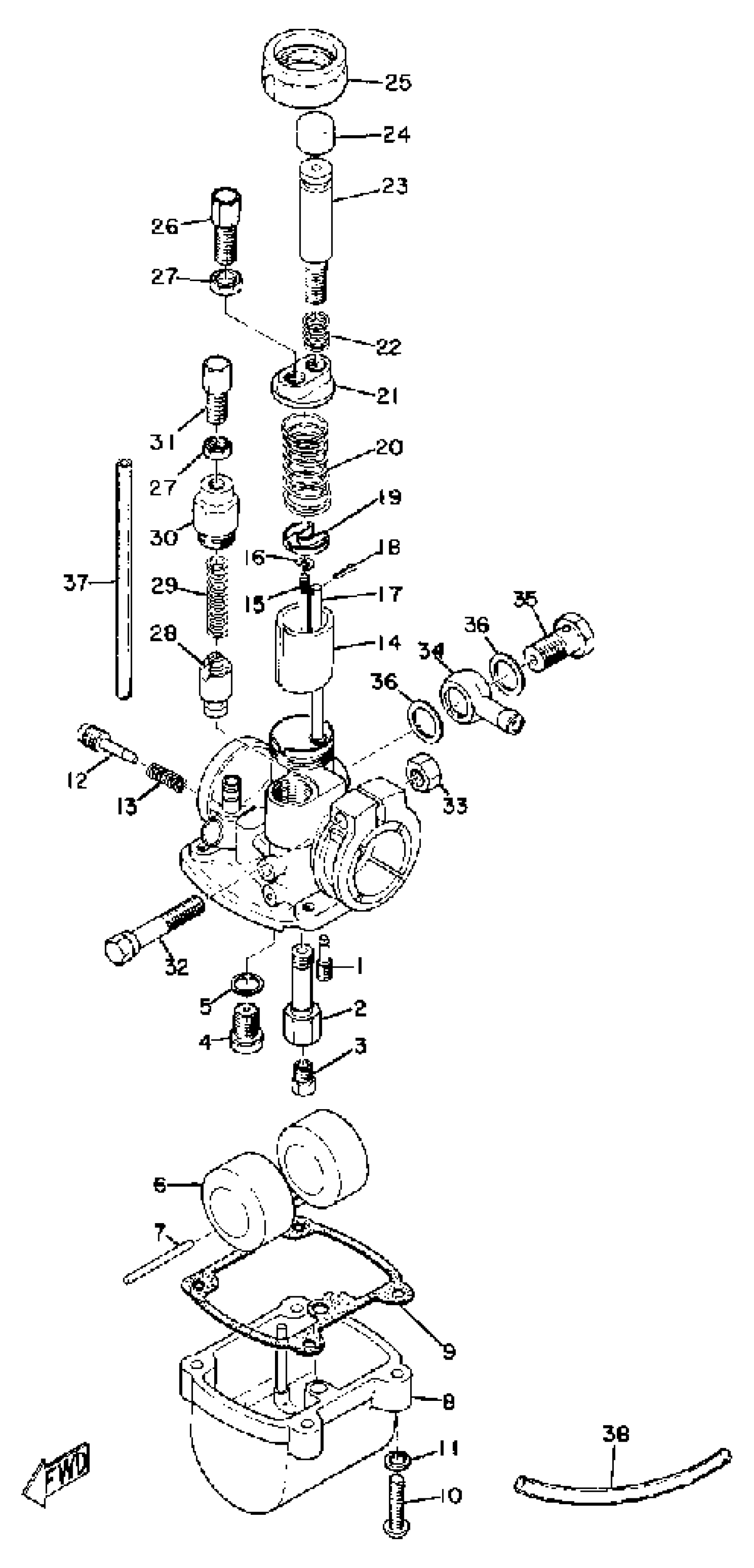

Yamaha YG5T_TRAILMASTER (YG5T_S) 1968 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
(232-14101-60-00)
Unavailable
2
NOZZLE, MAIN
(127-14141-12-00)
Unavailable
3
JET, MAIN (NO.110)
127-14143-22-00
Unavailable
8
BODY, FLOAT CHMBR 1
(116-14181-00-00)
Unavailable
10
SCREW, PAN HEAD
(92503-04020-00)
Unavailable
12
. SCREW, AIR ADJUSTINGSET
127-W1412-00-00
Unavailable
13
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
14
VALVE, THROTTLE 1
(180-14112-25-00)
Unavailable
15
NEEDLE
127-14116-09-00
Unavailable
16
CLIP
127-14137-00-00
Unavailable
17
BAR, THROTTLE
(127-14114-00-00)
Unavailable
17
BAR, THROTTLE
(209-14114-00-00)
Unavailable
18
. PIN, COTTER
91490-12012-00
Unavailable
19
. SEAT, SPRING
296-14136-00-00
Unavailable
20
. SPRING, THRTL VALVE
127-14131-00-00
Unavailable
21
TOP, MIXING CHAMBER
(180-14158-00-00)
Unavailable
22
SPRING, THROTTLE STOP
127-14133-00-00
Unavailable
23
SCREW, THRTL STOP
(127-14121-00-00)
Unavailable
23
SCREW, THRTL STOP
(209-14121-00-00)
Unavailable
24
CAP, THROTTLE SCREW
(167-14119-00-00)
Unavailable
25
CAP, MIXING CHAMBER
(180-14168-00-00)
Unavailable
26
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
27
NUT, WIRE ADJUSTING
127-14161-00-00
Unavailable
28
PLUNGER, STARTER
58E-14171-00-00
Unavailable
29
SPRING, PLUNGER
127-14135-00-00
Unavailable
30
CAP, PLUNGER
127-14174-00-00
Unavailable
31
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
32
. SCREW, BODY FITTING
127-14125-01-00
Unavailable
33
NUT, HEXAGON (663)
95380-05600-00
Unavailable
33
. UNAVAILABLE IN PRICE BOOK (98801-05200)
98801-05600-00
Unavailable
34
CONNECTOR, BANJO
(127-14167-00-00)
Unavailable
35
BOLT, BANJO
(127-14166-00-00)
Unavailable
36
GASKET
127-14198-00-00
Unavailable
37
HOSE (L1050)
90445-072G8-00
Unavailable
38
HOSE (L200)
90445-05N13-00
Unavailable
