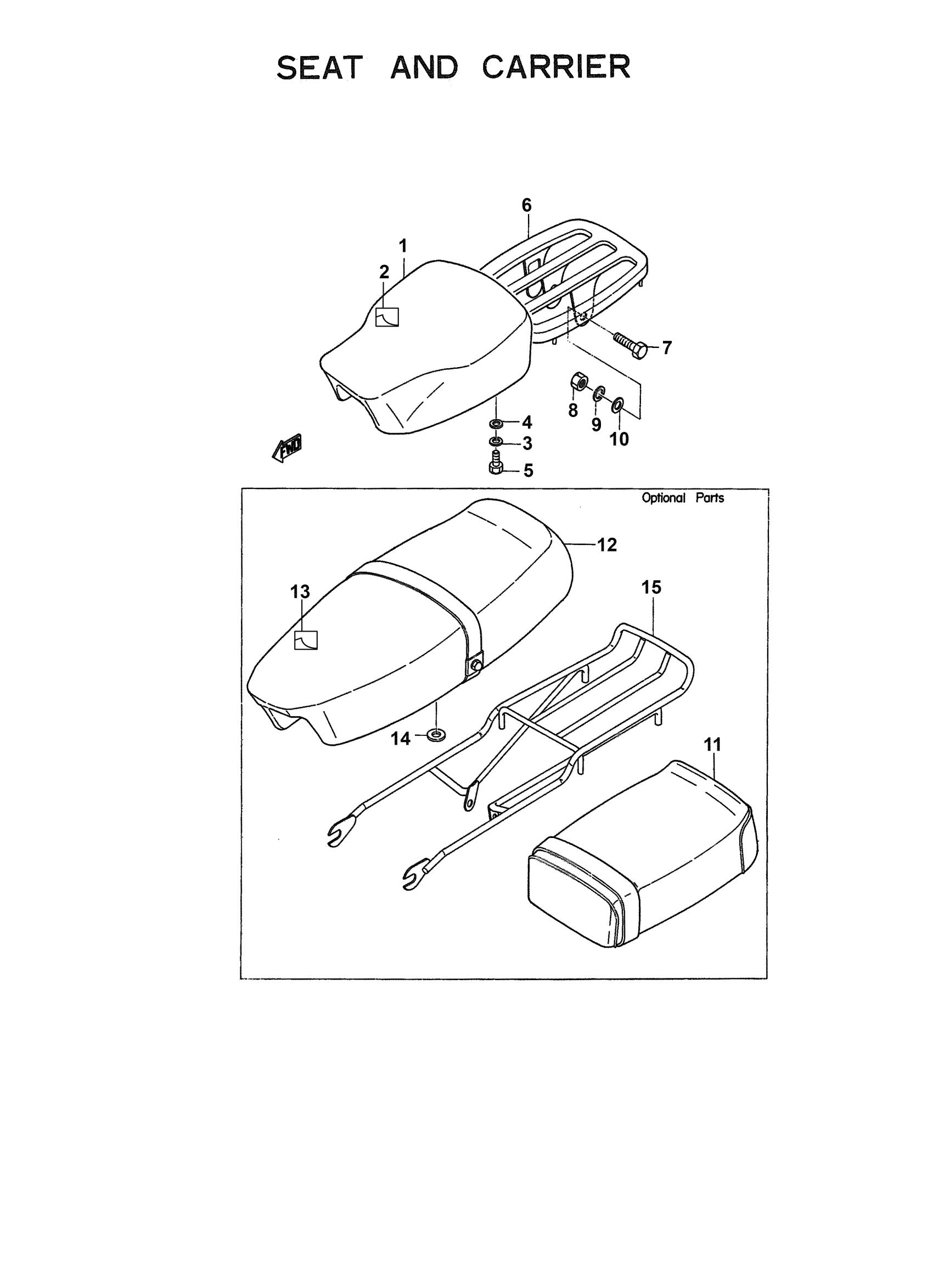

Yamaha YG1TK (TRAILMASTER) 1242 1965 SEAT - CARRIER Diagram

#

Description

Price

1

SINGLE SEAT ASSEMBLY

122-24710-00-00

Unavailable

2

. COVER, SINGLE SEAT

122-24711-00-00

Unavailable

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

WASHER, PLAIN

92990-08200-00

Unavailable

5

BOLT, HEXAGON

97013-08016-00

$1.01

6

CARRIER ASSY.

124-24810-00-00

Unavailable

7

BOLT(JA9)

90101-08691-00

$4.29

8

NUT(6L2)

95333-08600-00

$2.49

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

WASHER, PLAIN

92990-08200-00

Unavailable

11

TANDEM SEAT ASSEMBLY

107-24750-00-00

Unavailable

12

DOUBLE SEAT ASSEMBLY

122-24730-00-00

Unavailable

13

. COVER, DOUBLE SEAT

122-24731-00-00

Unavailable

14

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

15

SUB CARR YG1/YL1

122-24830-00-00

Unavailable
