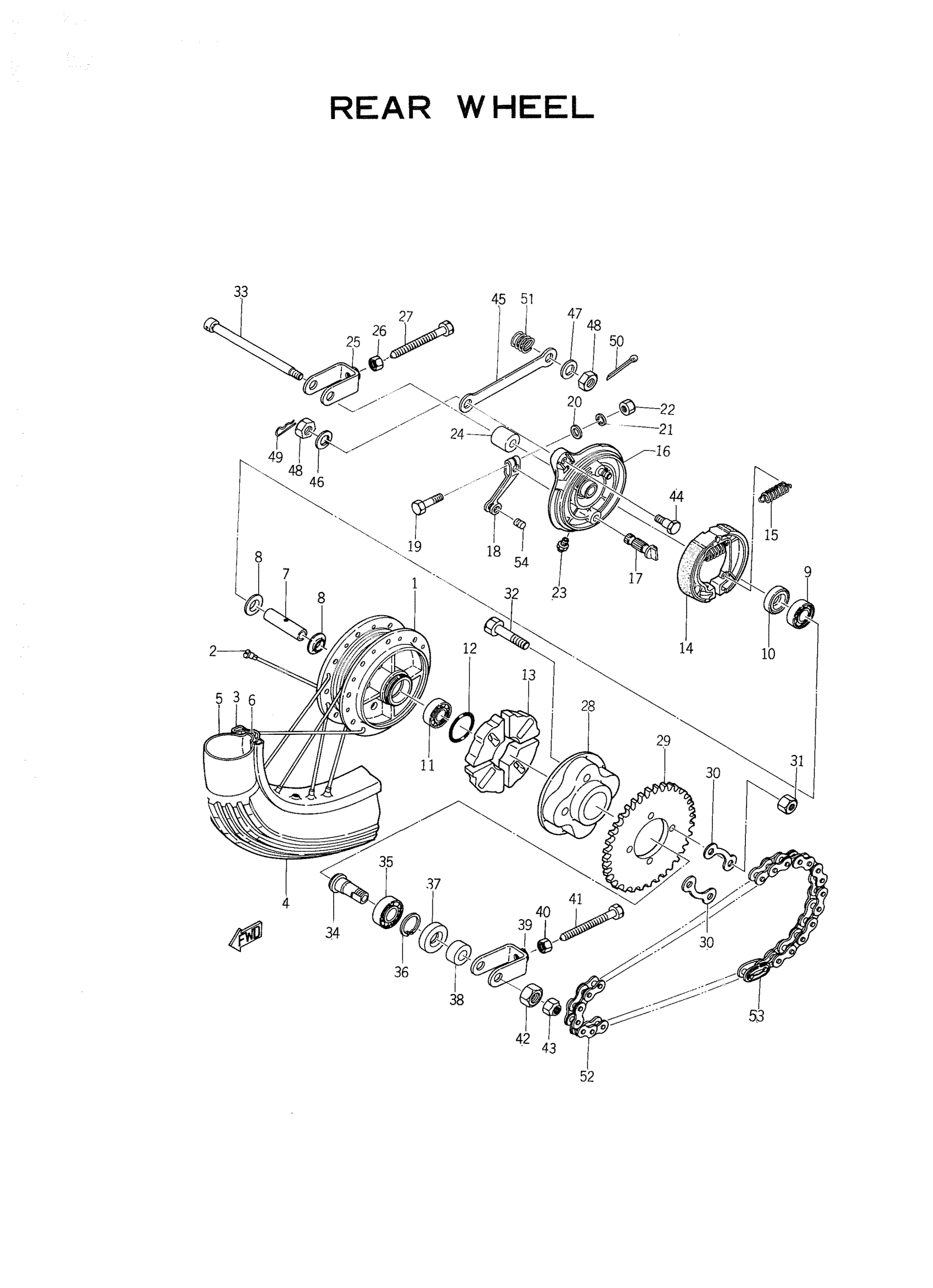

Yamaha YG1TK (TRAILMASTER) 1242 1965 REAR WHEEL Diagram
#
1
HUB,REAR
102-25311-00-38
Unavailable
2
SPOKE SET, REAR
102-25304-00-00
Unavailable
3
RIM 1.40X16
94414-16125-00
Unavailable
4
TIRE
94125-16010-00
Unavailable
5
TUBE 250X16
94225-16048-00
Unavailable
6
BAND, RIM
94330-16058-00
$20.99
7
SPACER
90560-12145-00
$20.99
8
FLANGE, SPACER
109-25315-00-00
$7.99
9
BRG.
93306-30101-00
$36.99
10
OIL SEAL (21X37X7-102)
93104-21016-00
$14.99
11
BEARING
93306-30102-00
$39.99
12
O-RING (102)
93210-41041-00
$7.49
13
DAMPER
102-25364-00-00
Unavailable
14
BRAKE SHOE KIT
4KN-W253E-11-00
$25.99
15
SPRING, TENSION (566).
90506-16150-00
$9.49
16
BRAKE SHOE PLT ASY
339-25320-10-00
Unavailable
17
CAM SHAFT
122-25351-02-00
Unavailable
18
LEVER, CAM SHAFT
122-25355-00-00
Unavailable
19
BOLT, HEXAGON
97017-06030-00
Unavailable
20
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
NUT, HEXAGON
95380-06600-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
COLLAR
90387-12098-00
Unavailable
25
PULLER,CHAIN 2
130-25389-00-00
Unavailable
26
NUT
92801-006100-00
Unavailable
27
BOLT HEXAGON 167253790000
90101-06016-00
Unavailable
28
CLUTCH, HUB
102-25366-00-00
Unavailable
29
SPROCKET, DRIVEN (37T)
122-25437-11-00
Unavailable
29
SPROCKET, DRIVN 49T
122-25449-10-33
Unavailable
29
SPROCKET, DRIVN 51T
122-25451-10-00
Unavailable
29
SPROCKET, DRIVN 53T
122-25453-10-33
Unavailable
29
SPROCKET DRIVN39T
12N-25439-20-33
Unavailable
29
SPROCKET, DRIVEN (35T)
5A7-25435-01-00
Unavailable
30
WASHER
4AW-25412-00-00
Unavailable
31
NUT(6L2)
95333-08600-00
Unavailable
32
BOLT(1AJ)
90101-08672-00
Unavailable
33
AXLE,WHEEL
357-25381-00-00
Unavailable
34
AXLE,SPROCKET
102-25387-02-00
Unavailable
35
BEARING(3BN)
93306-00438-00
Unavailable
36
CIRCLIP(5U8)
99009-42500-00
Unavailable
37
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
38
COLLAR
90387-18142-00
Unavailable
39
PULLER,CHAIN 1
130-25388-09-00
Unavailable
40
NUT
92801-006100-00
Unavailable
41
BOLT HEXAGON 167253790000
90101-06016-00
Unavailable
42
NUT, HEXAGON
90170-18165-00
Unavailable
43
NUT, SPEC''L SHAPE
102-25382-00-0
Unavailable
44
BOLT 1022537300
90109-08183-00
Unavailable
45
BAR, TENSION
102-25371-00-00
Unavailable
46
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
47
WASHER, PLAIN
92990-08200-00
Unavailable
48
NUT
92801-25385-00
Unavailable
49
CLIP (156-83525-00)
90468-10050-00
Unavailable
50
PIN, COTTER
91490-20025-00
Unavailable
51
SPRING,COMPRESSION
90501-20129-00
Unavailable
52
420-106L
94580-52106-00
Unavailable
53
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
