Description

Price

1

MUFFLER ASSEMBLY L

126-14710-01-00

Unavailable

2

ARRESTER, SPARK

122-14786-20-00

Unavailable

3

DIFFUSER

122-14785-20-00

Unavailable

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

NUT, HEXAGON SMALL

95317-05700-00

$8.49

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

BOLT, HEXAGON

97013-05010-00

$0.59

8

NUT, MUFFLER JOINT

132-14713-00-00

Unavailable

9

GASKET, MUFFLER

3NA-14714-01-00

Unavailable

10

PIPE, EXHAUST L

126-14611-00-00

Unavailable

11

NUT, RING

1L4-14612-00-00

$16.49

12

GASKET, EXHAUST PIPE

3MT-14613-00-00

$10.99

13

NUT(6L2)

95333-08600-00

$2.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

BOLT

97014-08040-00

$7.49

16

STOPPER

1M3-27114-00-00

Unavailable

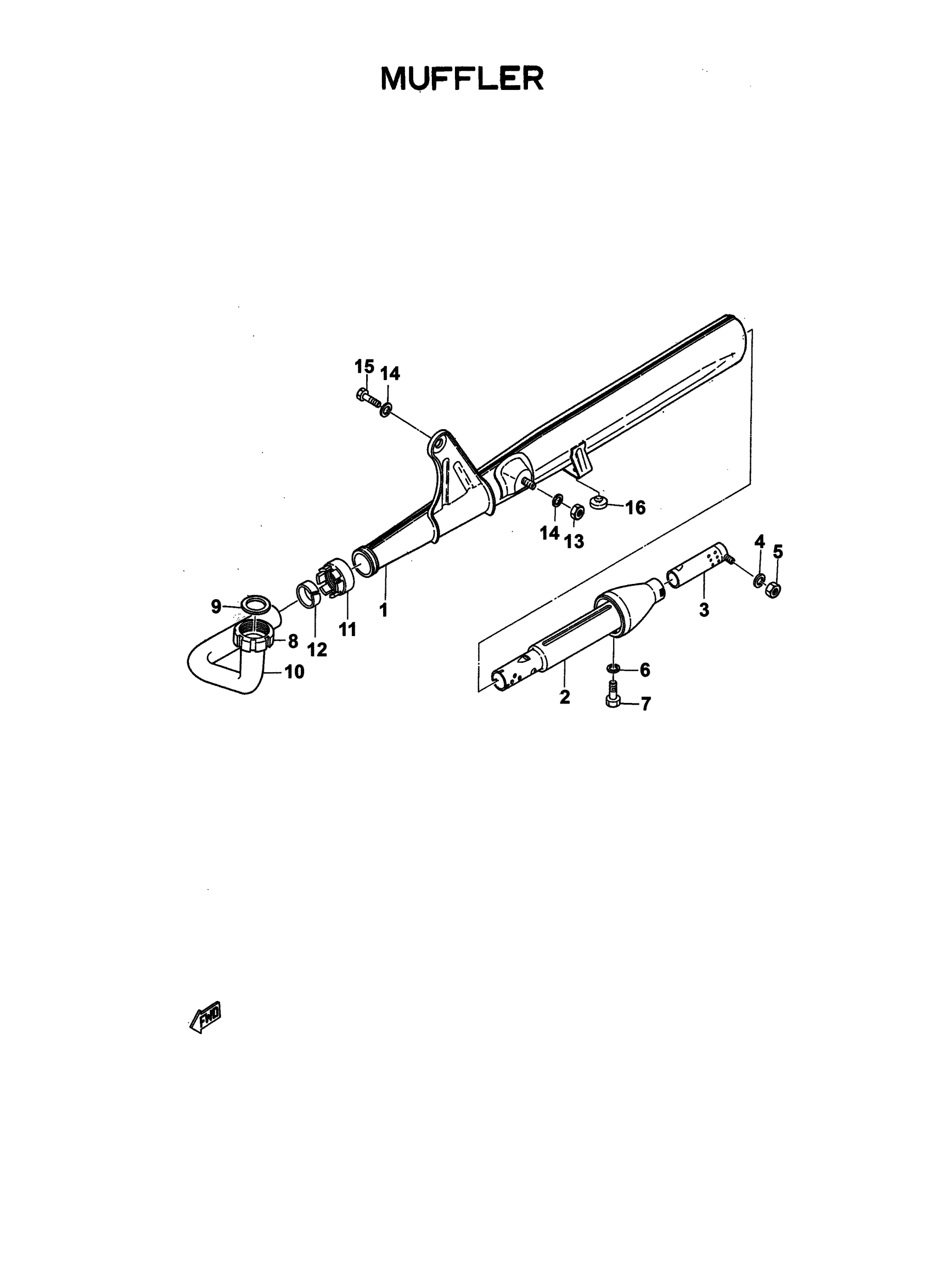

Yamaha YG1TK (TRAILMASTER) 1242 1965 MUFFLER (1) Diagram

MUFFLER ASSEMBLY L

ARRESTER, SPARK

DIFFUSER

YBS67-5 WASHER, SPRING

NUT, HEXAGON SMALL

YBS67-5 WASHER, SPRING

BOLT, HEXAGON

NUT, MUFFLER JOINT

GASKET, MUFFLER

PIPE, EXHAUST L

NUT, RING

GASKET, EXHAUST PIPE

NUT(6L2)

YBS67-8 WASHER, SPRING

BOLT

STOPPER
