- YG1TK (TRAILMASTER) 1242 1965
HANDLE AND FRONT FENDER

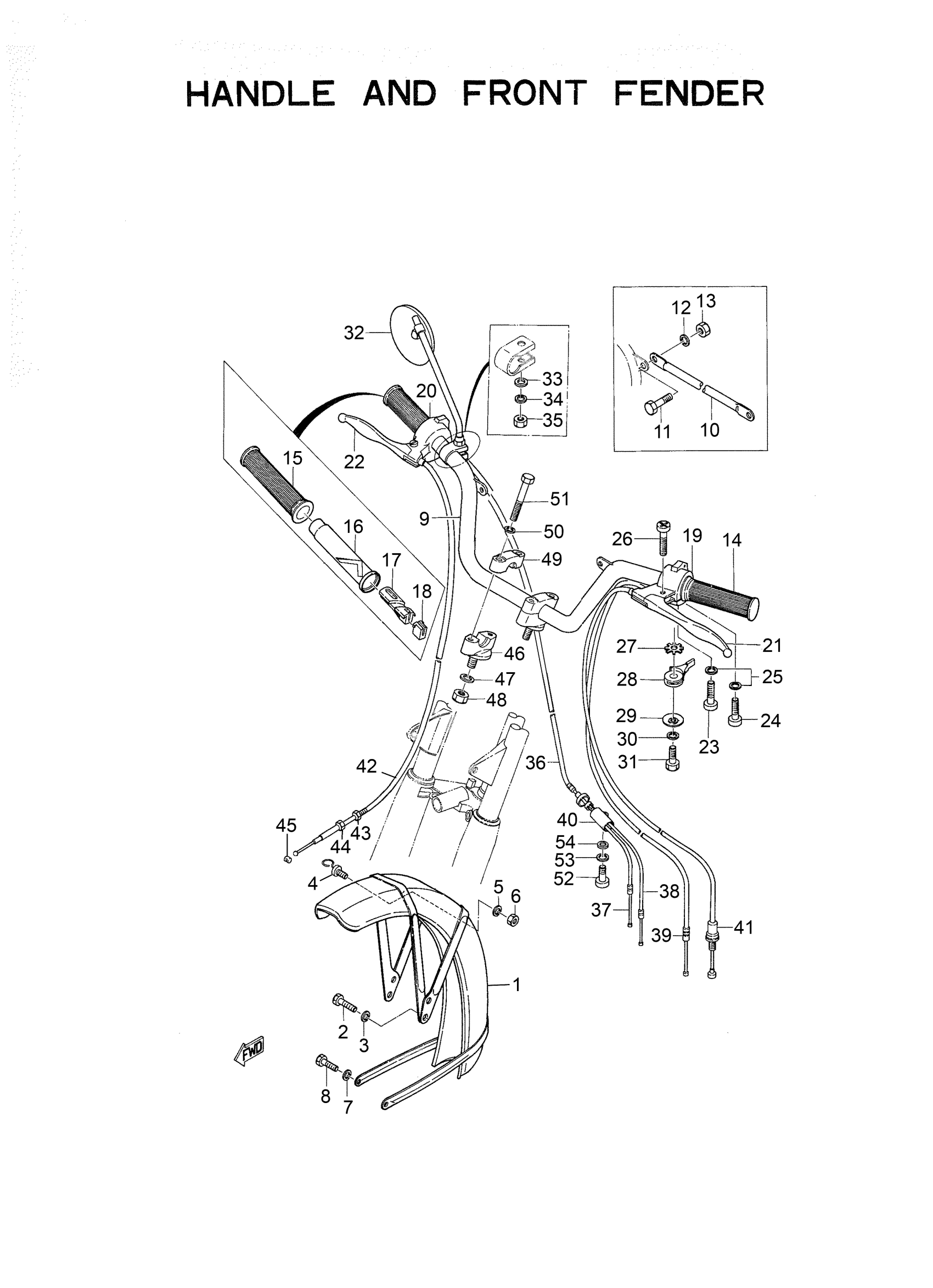

Yamaha YG1TK (TRAILMASTER) 1242 1965 HANDLE AND FRONT FENDER Diagram
#
1
FRONT FENDER COMP.
124021510-00-00
Unavailable
2
BOLT(62E)
97013-08012-00
Unavailable
3
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
4
HOLDER, CABLE
152-21518-00-00
Unavailable
5
WASHER, SPRING
92995-06100-00
Unavailable
6
NUT, HEXAGON
95380-06600-00
Unavailable
7
BOLT(3JP)
97017-06010-00
$3.76
8
BOLT, HEXAGON
97013-08016-00
$1.01
9
HANDLEBAR
125-26111-11-00
Unavailable
10
BAR, TENSION
124-26191-00-00
Unavailable
11
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
12
WASHER, SPRING
92995-06100-00
Unavailable
13
NUT, HEXAGON
95380-06600-00
Unavailable
14
GRIP LH
102-26241-00-00
Unavailable
15
GRIP RH
102-26242-00-00
Unavailable
16
TUBE,THRTL GUIDE
207-26243-00-00
Unavailable
17
SLIDER, THROTTLE
102-26244-00-00
Unavailable
18
STOPPER,CABLE
135-26245-00-00
Unavailable
19
LEVER HOLDER ASSEMBLY 1
124-82710-11-94
Unavailable
20
LEVER HOLDER ASSEMBLY 2
124-82720-10-94
Unavailable
21
LEVER L
803-83912-00-38
Unavailable
22
. LEVER R
122-83922-01-00
Unavailable
23
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
24
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
27
WASHER,SPEC'L SHAP
90209-12115-00
Unavailable
28
LEVER, STARTER
103-82941-00-00
Unavailable
29
COVER, STARTER
122-83942-00-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
32
MIRROR ASSEMBLY
257-26290-00-00
Unavailable
33
WASHER, PLAIN
92990-08200-00
Unavailable
34
WASHER(JN5)
92907-08100-00
Unavailable
35
NUT(6L2)
95333-08600-00
Unavailable
36
CABLE, THROTTLE 1
126-26311-12-00
Unavailable
37
CABLE, THROTTLE 2
126-26312-00-00
Unavailable
38
CABLE, PUMP
126-26321-00-00
Unavailable
39
CABLE, STARTER 1
124-26331-10-00
Unavailable
40
CONNECTOR, CABLE
137-26261-01-00
Unavailable
41
WIRE, CLUTCH
124-26335-10-00
Unavailable
42
CABLE, BRAKE
109-26341-10-00
Unavailable
43
BOLT (109-26345-00)
90123-06011-00
Unavailable
44
NUT (109-26344-00)
90179-06143-00
Unavailable
45
END, WIRE
164-26363-00-00
Unavailable
46
HOLDER, HANDLE LOWER
122-23442-03-00
Unavailable
47
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
48
NUT, SELF LOCKING
90185-10031-00
Unavailable
49
HOLDER, HANDLE UPPER
462-23441-01-00
Unavailable
50
WASHER, SPRING
90201-06100-00
Unavailable
51
BOLT (682)
97095-06040-00
Unavailable
52
SCREW, PAN
98517-06012-00
Unavailable
53
WASHER, SPRING
92995-06100-00
Unavailable
54
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
