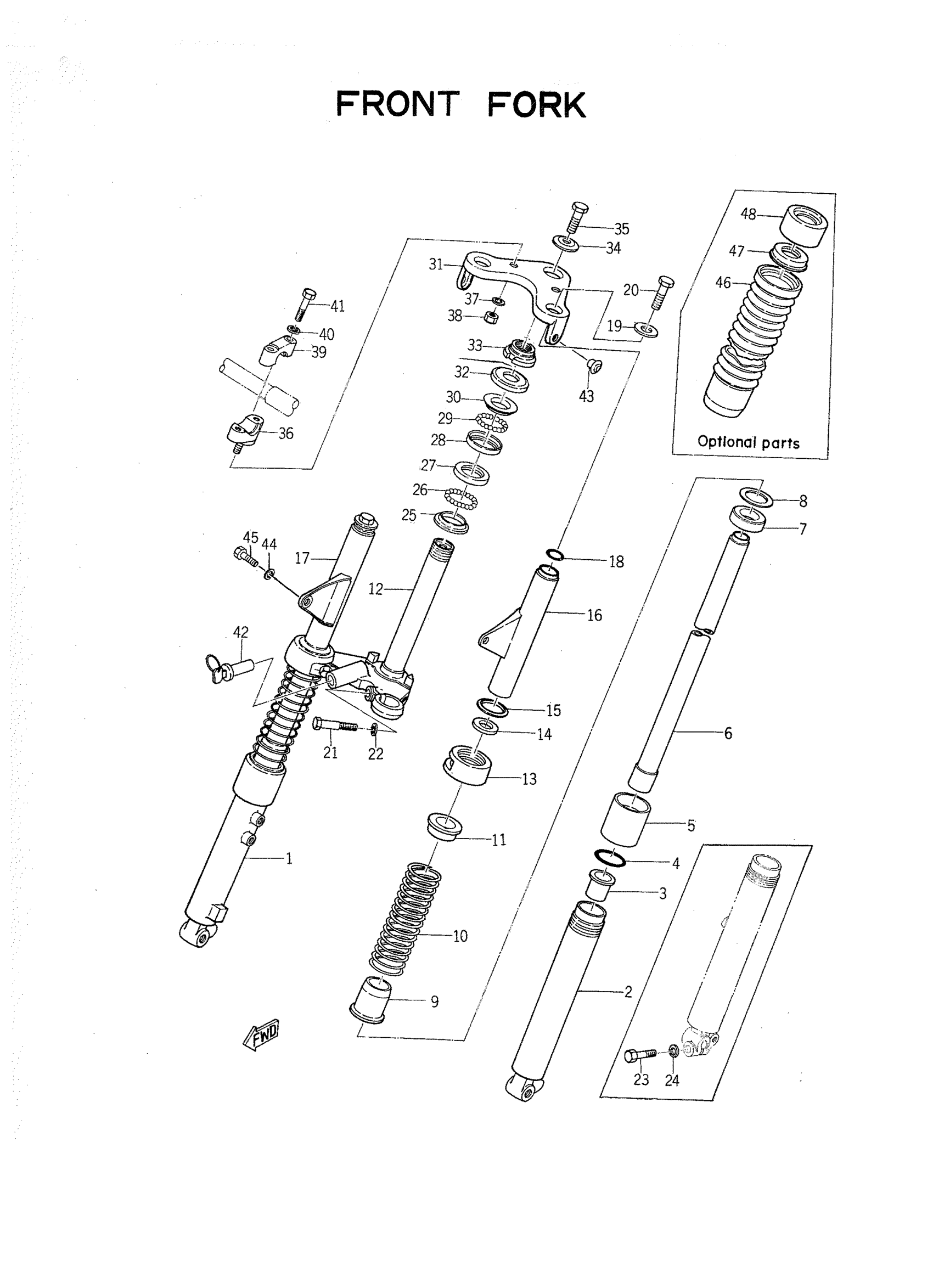

Yamaha YG1TK (TRAILMASTER) 1242 1965 FRONT FORK Diagram
#
1
TUBE, OUTER 2
124-23136-00-81
Unavailable
2
TUBE,OUTER 1
196-23126-40-81
Unavailable
3
METAL,SLIDE 1
357-23125-90-00
Unavailable
4
. O-RING
122-23147-00-00
Unavailable
5
OUTER NUT
128-23150-00-00
Unavailable
6
TUBE,INNER 1
196-23124-40-00
Unavailable
7
OIL SEAL (5R6)
93110-27010-00
Unavailable
8
WASHER,OIL SEAL
124-23146-00-00
Unavailable
9
SEAT, SPRING LOWER
122-23143-00-00
Unavailable
10
SPRING, FRONT FORK
124-23141-00-00
Unavailable
11
SEAT, SPRING UPPER
124-23142-00-00
Unavailable
12
UNDER BRACKET
122-23340-00-33
Unavailable
13
COVER, OUTER
124-23123-00-00
Unavailable
14
TUBE,OUTER 2
122-23136-00-81
Unavailable
15
GUIDE, COVER LOWER
122-23116-00-00
Unavailable
16
COVER, UPPER 1
122-23121-00-81
Unavailable
17
COVER, UPPER 2
122-23131-00-81
Unavailable
18
GASKET
307-23114-00-00
Unavailable
19
. WASHER
122-23112-00-00
Unavailable
20
WASHER,OIL SEAL
124-23146-00-00
Unavailable
20
BOLT, CAP
205-23111-40-00
Unavailable
21
BOLT 1
122-23346-02-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
BOLT (682)
97013-08025-00
Unavailable
24
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
25
RACE, BALL 1
B6E-23411-00-00
Unavailable
26
BALL
93501-04011-00
Unavailable
27
RACE, BALL 2
B6E-23412-00-00
Unavailable
28
RACE, BALL 1
BP2-23411-00-00
Unavailable
29
BALL
93503-16003-00
Unavailable
30
RACE, BALL 2
BP2-23412-00-00
Unavailable
31
CROWN, HANDLE
122-23435-01-33
Unavailable
32
COVER, BALL RACE
122-23416-00-00
Unavailable
33
CROWN, HANDLE
122-23435-01-33
Unavailable
34
WASHER (1YJ)
90209-10160-00
Unavailable
35
BOLT 1222345100
90105-10006-00
Unavailable
36
HOLDER, HANDLE LOWER
122-23442-03-00
Unavailable
37
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
38
NUT, SELF LOCKING
90185-10031-00
Unavailable
39
HOLDER, HANDLE UPPER
462-23441-01-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
BOLT (682)
97095-06040-00
Unavailable
42
STEERING LOCK ASY
122-23480-01-00
Unavailable
43
PLUG,SPEC'L SHAPE
90338-09060-00
Unavailable
44
WASHER, PLAIN
92903-08200-00
Unavailable
45
BOLT
91204-08020-00
Unavailable
46
BOOT
129-23191-00-00
Unavailable
47
GUIDE, BOOT
129-23193-00-00
Unavailable
48
BAND, BOOT
129-23192-00-00
Unavailable
