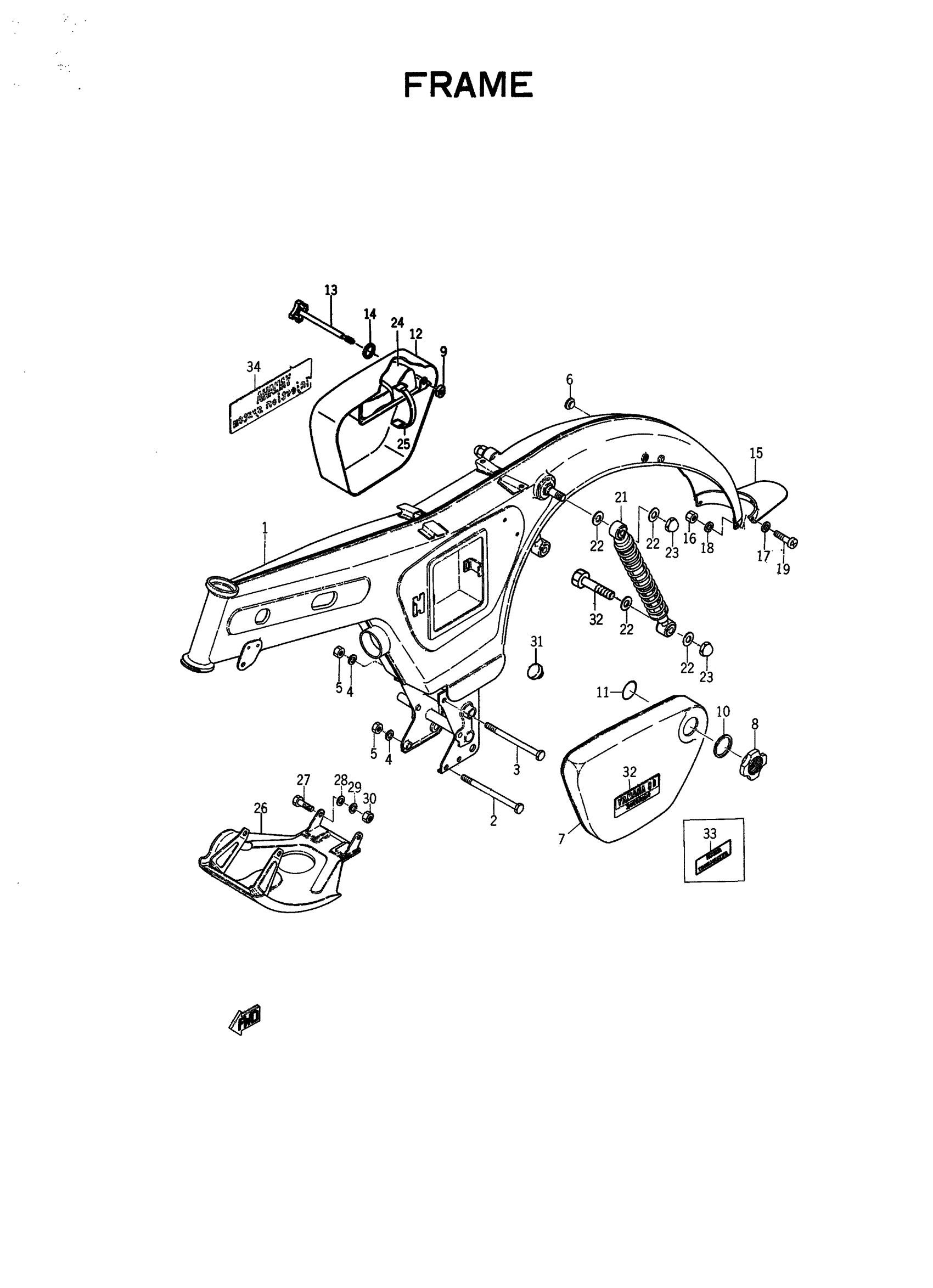

Yamaha YG1TK (TRAILMASTER) 1242 1965 FRAME Diagram
#
1
FRAME
124-21110-01-81
Unavailable
2
BOLT, FLANGE
95817-08125-00
$9.49
3
BOLT, FLANGE(2UJ)
95814-08110-00
$7.49
4
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
5
NUT(6L2)
95333-08600-00
$2.49
6
PLUG,SPEC'L SHAPE
90338-09060-00
Unavailable
7
COVER, SIDE 1
122-21711-01-81
Unavailable
8
KNOB, SIDE COVER 1
102-21714-00-00
Unavailable
9
NUT(650)
95380-06700-00
$8.49
10
SPACER, HANDLE 2 (648)
90202-34043-00
Unavailable
11
RING, STOP
102-21718-00-00
Unavailable
12
COVER,SIDE 2
122-21721-00-81
Unavailable
13
KNOB, SIDE COVER 2
126-21724-00-00
Unavailable
14
WASHER, PLATE
90202-06015-00
Unavailable
15
FLAP
122-21621-00-00
Unavailable
16
NUT, HEXAGON
95380-06600-00
Unavailable
17
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
SCREW, PAN
98507-06014-00
Unavailable
20
EMBLEM
124-21783-00-00
Unavailable
21
SHK/ABS ASSEMBLY, REAR
130-22210-00-00
Unavailable
22
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
23
NUT, CROWN
90176-12006-00
Unavailable
24
TOOL KIT
1E7-W2810-00-00
Unavailable
25
BAND, TOOL
122-21376-00-00
Unavailable
26
PROTECTOR, ENGINE
125-21471-00-00
Unavailable
27
BOLT
97013-08035-00
Unavailable
28
WASHER, PLAIN
92990-08200-00
Unavailable
29
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
30
NUT(6L2)
95333-08600-00
$2.49
31
STOPPER, MAIN STAND
128-27114-00-00
Unavailable
32
EMBLEM
129-22242-00-00
Unavailable
33
EMBLEM
124-21783-00-00
Unavailable
34
EMBLEM, INJECTION
137-21782-00-00
Unavailable
