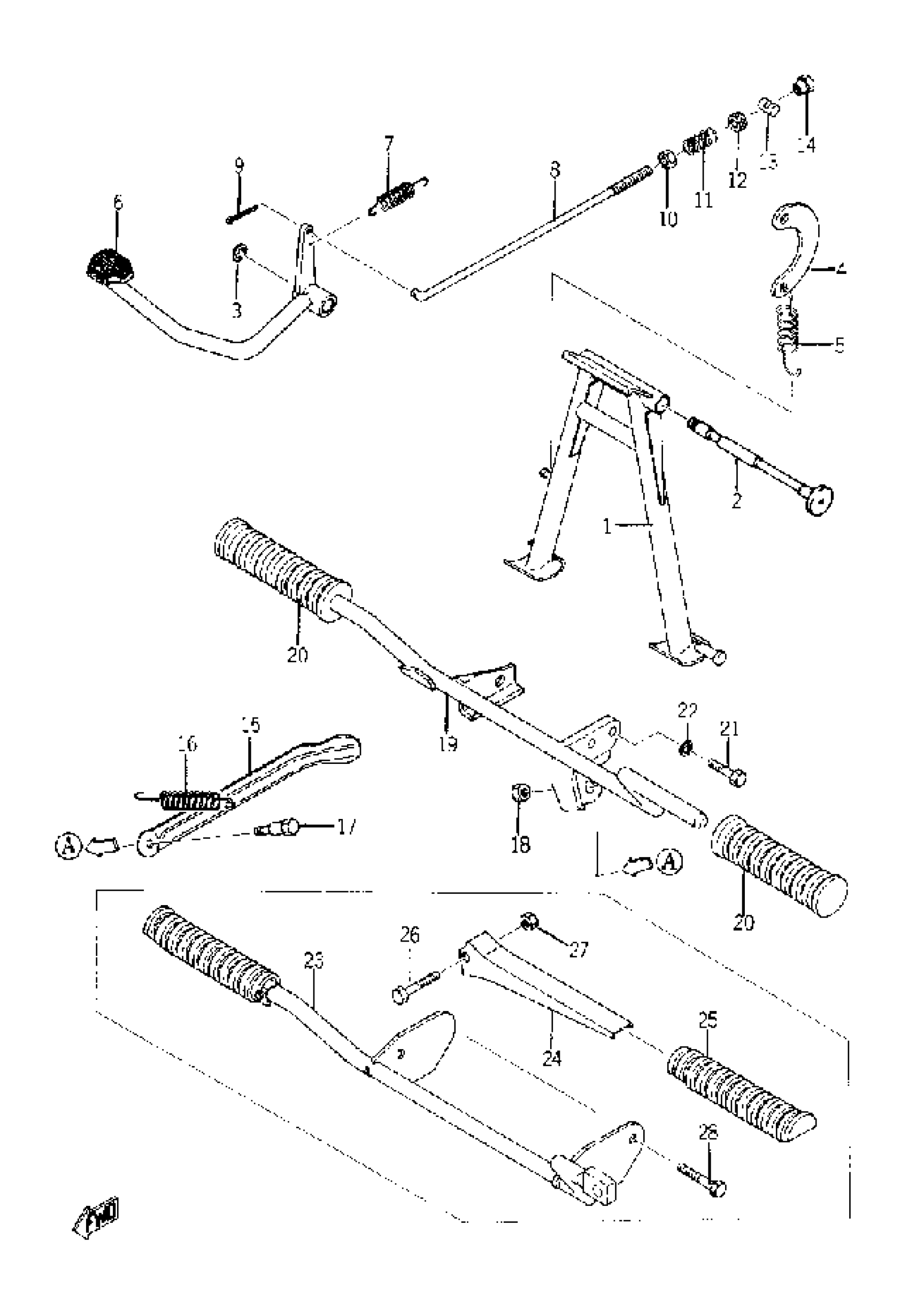

Yamaha YG1T (TRAILMASTER) 124 1963 STAND - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

(122-27111-00-00)

Unavailable

2

SHAFT, MAIN STAND

(122-27112-00-00)

Unavailable

3

CIRCLIP (122)

93430-12008-00

$8.49

4

LINK, MAIN STAND

(109-27115-00-00)

Unavailable

5

SPRING, TENSION

(90506-29054-00)

Unavailable

6

PEDAL, BRAKE

(126-27211-00-91)

Unavailable

7

SPRING, TENSION

90506-26051-00

Unavailable

8

ROD, BRAKE

180-27231-01-00

Unavailable

9

. PIN, COTTER

91490-12012-00

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

SPRING, (180-27236-00)

90501-10245-00

$8.49

12

SEAT, SPRING

(148-27239-00-00)

Unavailable

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT (25K)

90179-06411-00

$8.49

15

STAND, SIDE

(122-27311-02-00)

Unavailable

16

SPRING TENSION 146273160000

90506-29052-00

Unavailable

18

. NUT

95380-08700-00

Unavailable

19

PEDAL, BRAKE

(126-27211-00-91)

Unavailable

20

COVER, FOOTREST

122-27413-00-00

Unavailable

21

BOLT, HEXAGON

97013-08020-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

FRAME

(124-21110-01-81)

Unavailable

24

FOOTREST 1

(156-27411-00-00)

Unavailable

25

COVER, FOOT REST

156-27413-00-00

Unavailable

26

BOLT (157-27416-00)

90109-08376-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

BOLT, HEXAGON

97013-08016-00

Unavailable
