1963 Yamaha Trailmaster (YG1T) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1963 Yamaha Trailmaster (YG1T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

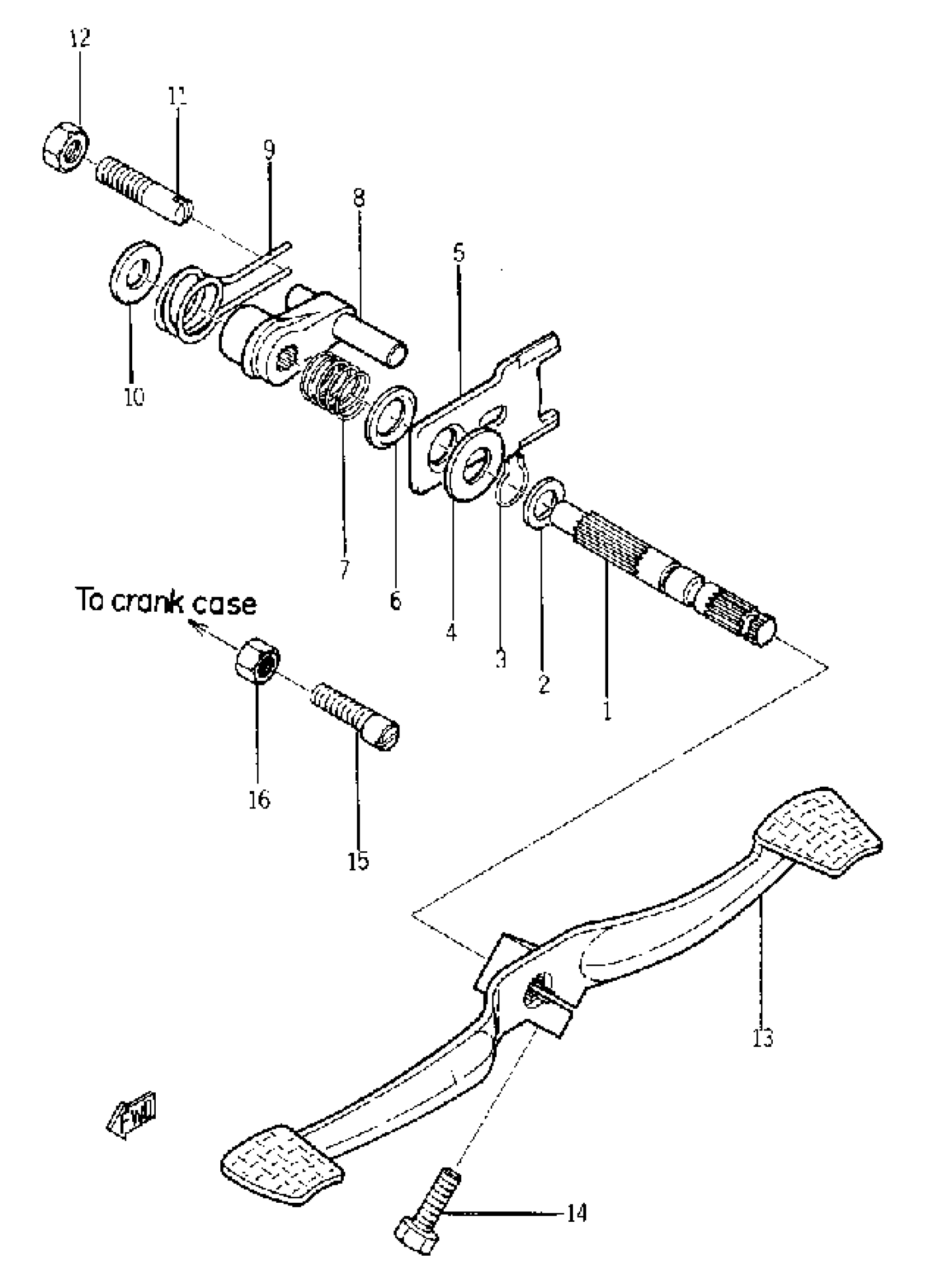

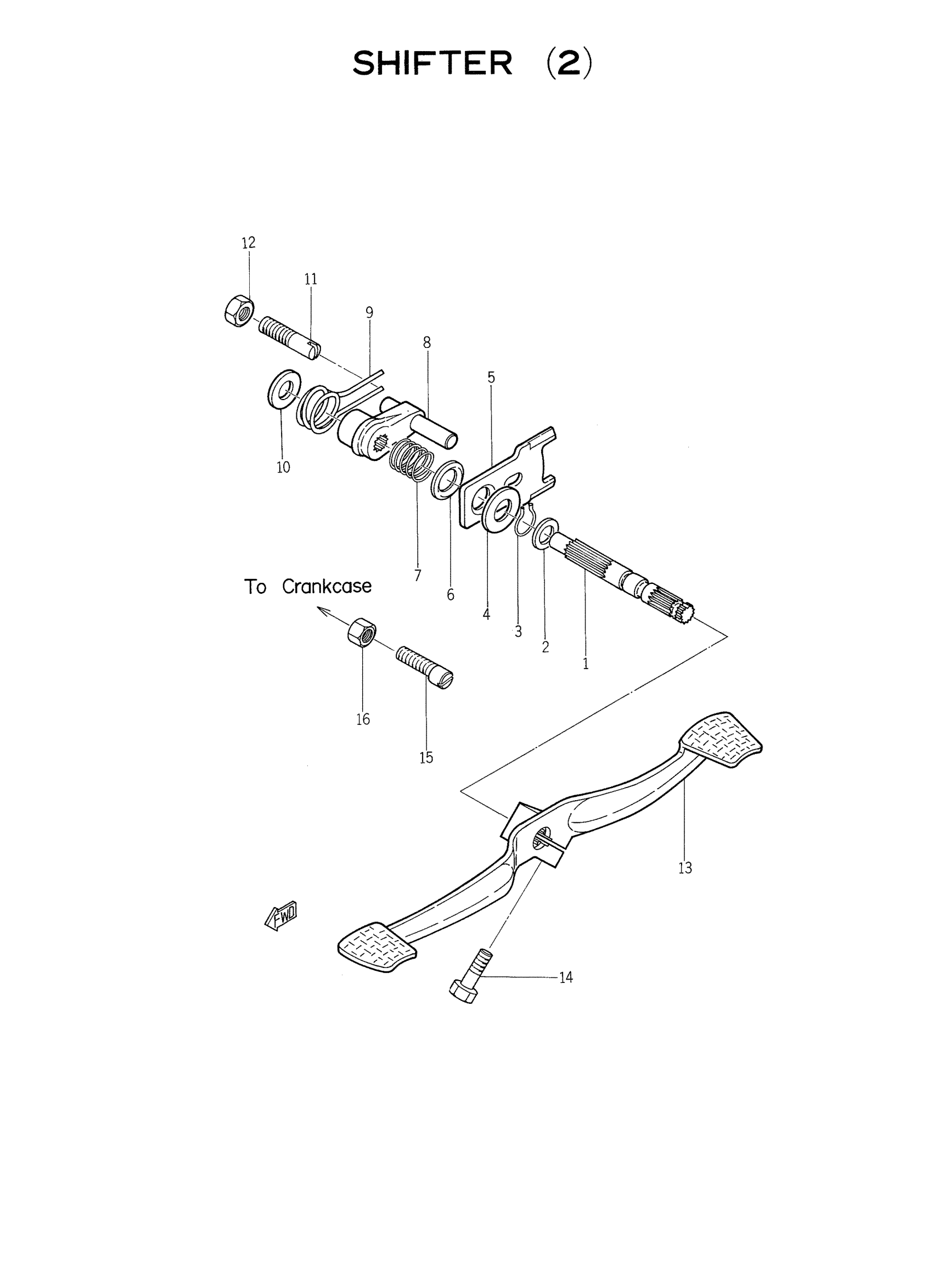

1963 Yamaha Trailmaster (YG1T) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, SHIFT

(122-18125-00-00)

1
Out of stock

2

WASHER (692)

90201-12M34-00

1

$3.47

In stock

3

CLIP

(90468-16013-00)

1
Out of stock

4

PLATE, STOPPER

(122-18141-00-00)

1
Out of stock

5

LEVER, SHIFT 1

(122-18121-00-00)

1
Out of stock

6

COVER, SPRING

(102-18145-00-00)

1
Out of stock

7

SPRING,COMPRESSION

90501-12092-00

1
Out of stock

8

SHIFT LEVER ASSEMBLY

122-18120-00-00

1
Out of stock

9

SPRING, TORSION

(90508-35065-00)

1
Out of stock

10

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

11

BOLT, SET

(90113-08022-00)

1
Out of stock

12

. NUT

95380-08700-00

1

$3.07

In stock

13

PEDAL,SHIFT

4AV-18111-00-00

—

$37.11

In stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

15

SCREW, SPECL SHAPE

(90149-10013-00)

1
Out of stock

16

NUT(3BM)

95314-10600-00

—

$1.74

In stock
