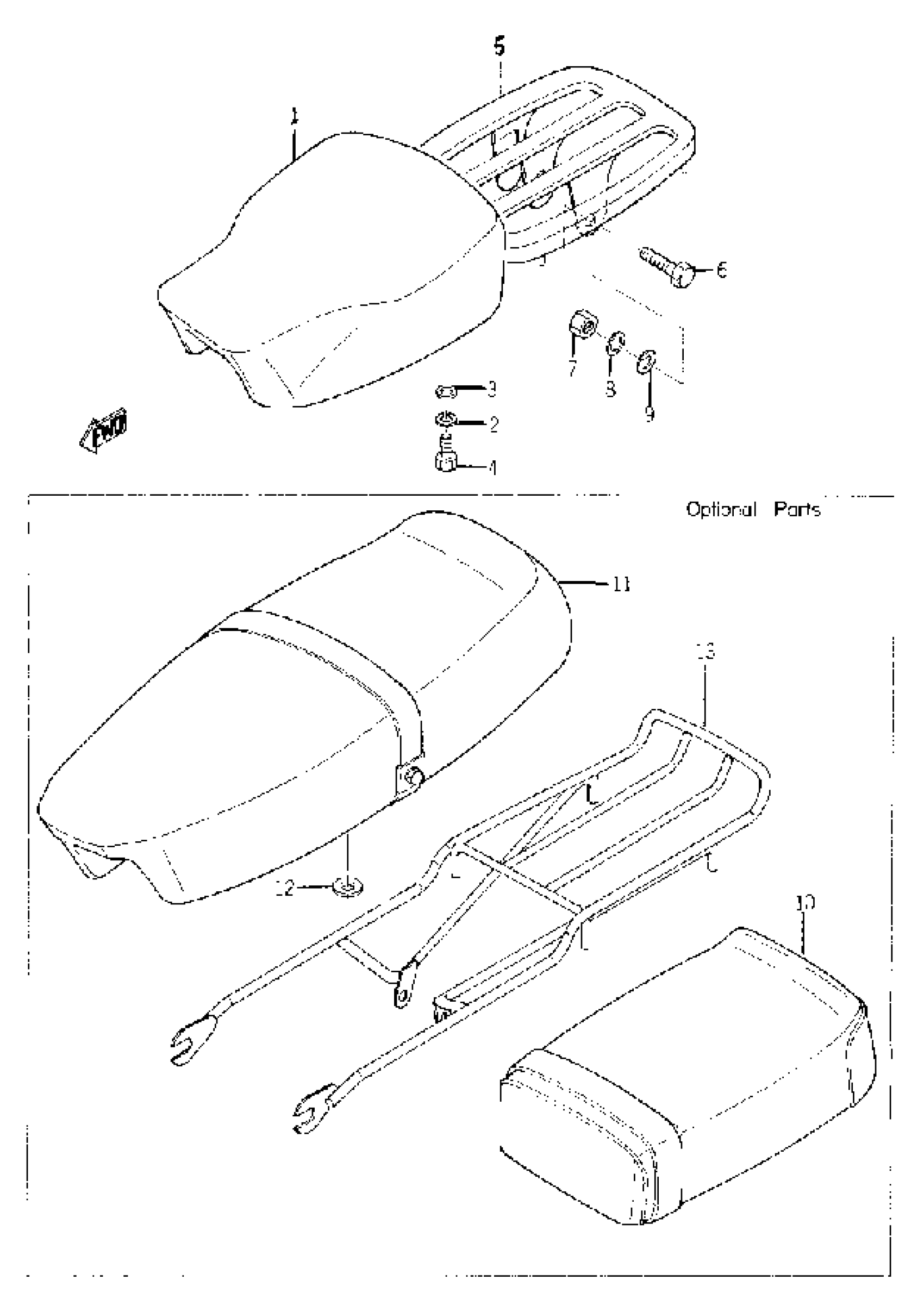

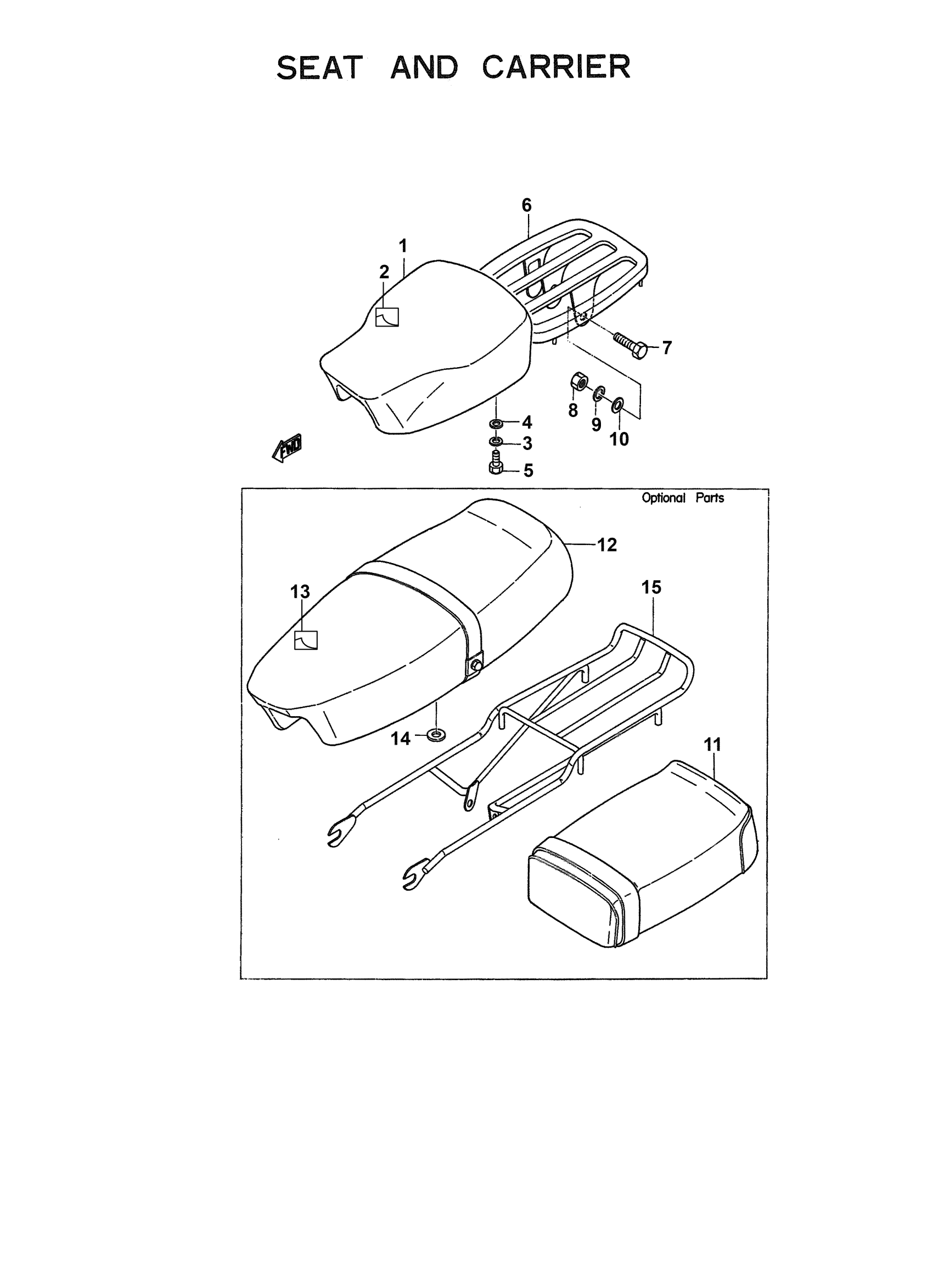

Yamaha YG1T (TRAILMASTER) 124 1963 SEAT - CARRIER Diagram

#

Description

Price

1

SINGLE SEAT ASSEMBLY

(122-24710-00-00)

Unavailable

1

COVER, SINGLE SEAT

(122-24711-00-00)

Unavailable

1

COVER, DOUBLE SEAT

(122-24731-00-00)

Unavailable

2

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

3

WASHER, PLAIN

92990-08200-00

$2.36

4

BOLT, HEXAGON

97013-08016-00

$1.24

6

BOLT(JA9)

90101-08691-00

$4.65

7

NUT(6L2)

95333-08600-00

$2.98

8

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

9

WASHER, PLAIN

92990-08200-00

$2.36

10

TANDEM SEAT ASSEMBLY

(107-24750-00-00)

Unavailable

11

DOUBLE SEAT ASSEMBLY

(122-24730-00-00)

Unavailable

12

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

13

SUB CARR YG1/YL1

(122-24830-00-00)

Unavailable
