REAR WHEEL

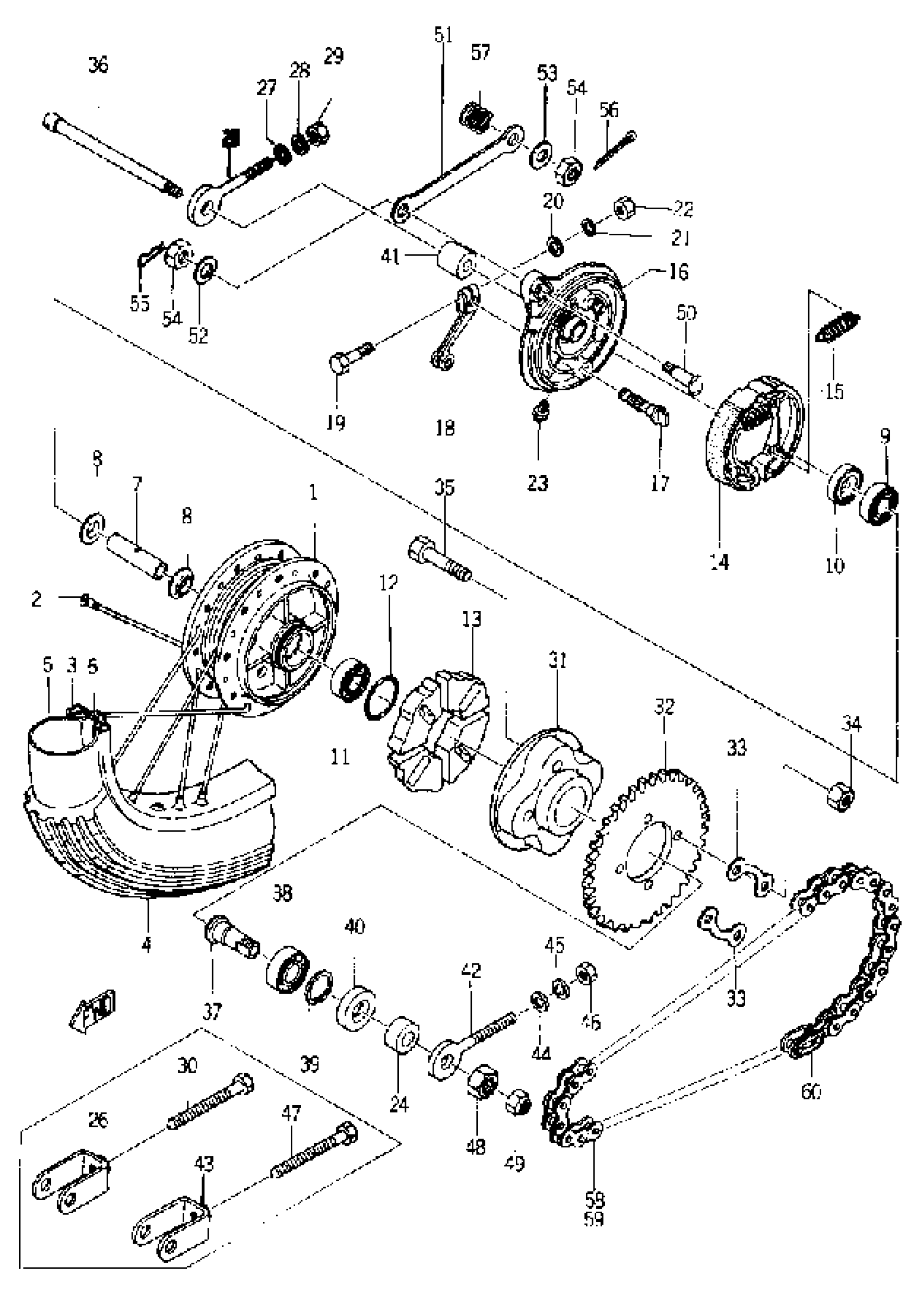

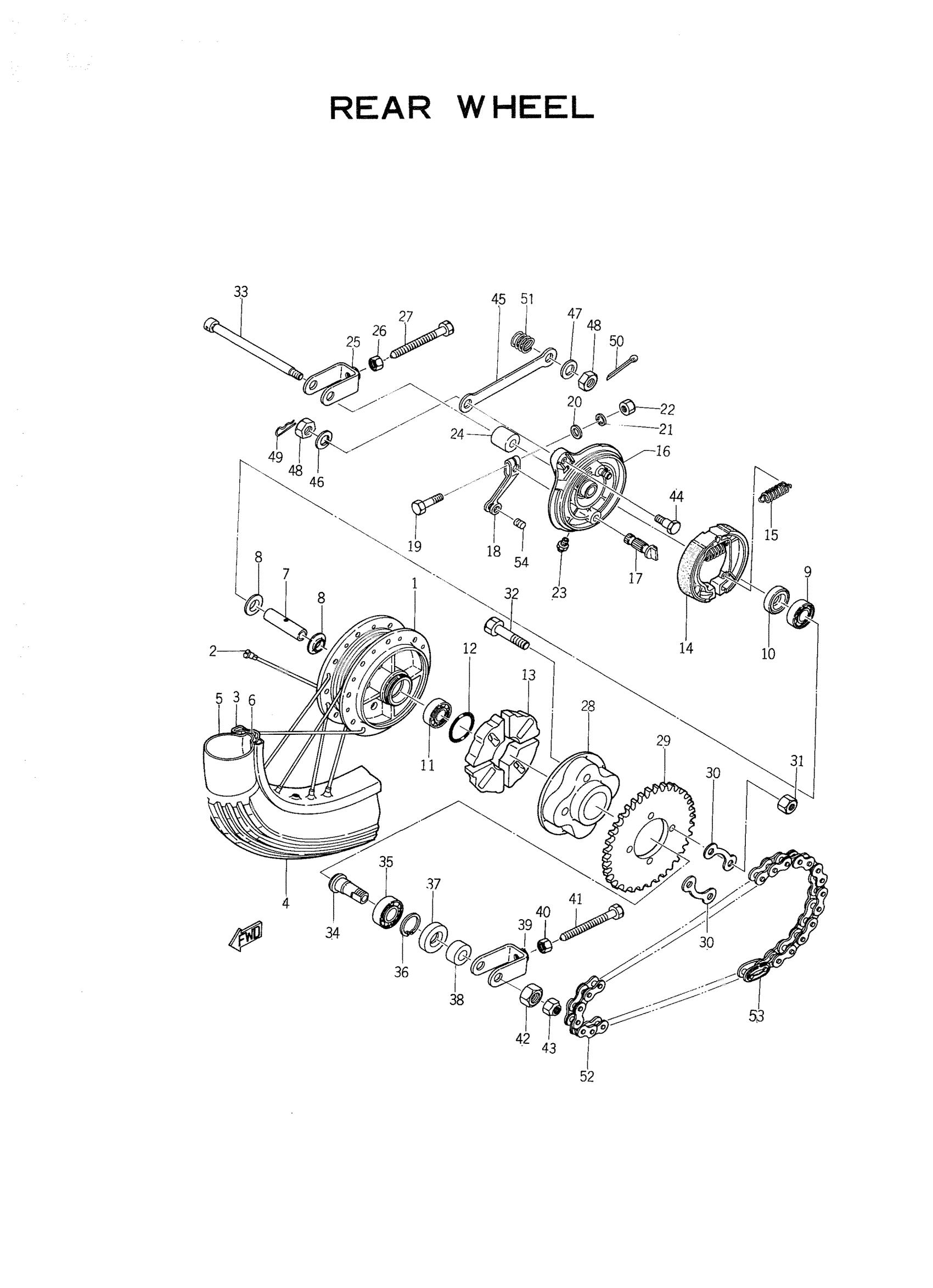

Yamaha YG1T (TRAILMASTER) 124 1963 REAR WHEEL Diagram
#
1
HUB, REAR
(102-25311-00-38)
Unavailable
2
SPOKE SET, REAR
(102-25304-00-00)
Unavailable
2
SPOKE SET, REAR
(122-25304-00-00)
Unavailable
3
RIM 1.40X16
(94414-16125-00)
Unavailable
3
RIM 1.40X17
(94414-17003-00)
Unavailable
4
TIRE
(94125-16010-00)
Unavailable
4
2.50-17 IRC
(94125-17314-00)
Unavailable
5
TUBE 250X16
94225-16048-00
Unavailable
5
TUBE
(94225-17082-00)
Unavailable
6
BAND, RIM
94330-16058-00
$20.99
6
BAND, RIM (3.25-17) (3Y0)
94332-17112-00
$9.49
7
SPACER
90560-12145-00
$20.99
8
FLANGE, SPACER
109-25315-00-00
$7.99
9
BRG.
93306-30101-00
$36.99
10
OIL SEAL (21X37X7-102)
93104-21016-00
$14.99
11
BEARING
93306-30102-00
Unavailable
12
O-RING (102)
93210-41041-00
Unavailable
13
DAMPER
(102-25364-00-00)
Unavailable
14
BRAKE SHOE KIT
4KN-W253E-11-00
Unavailable
15
SPRING, TENSION (566).
90506-16150-00
Unavailable
16
BRAKE SHOE PLT ASSEMBLY
(339-25320-10-00)
Unavailable
17
CAM SHAFT
122-25351-02-00
Unavailable
18
LEVER, CAM SHAFT
122-25355-00-00
Unavailable
19
BOLT, HEXAGON
97017-06030-00
Unavailable
20
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
NUT, HEXAGON
95380-06600-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
COLLAR
(90387-18142-00)
Unavailable
24
COLLAR
(90387-18143-00)
Unavailable
25
PULLER, CHAIN
3AC-2538G-10-00
Unavailable
26
PULLER, CHAIN 2
(130-25389-00-00)
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
NUT, HEXAGON
95380-06600-00
Unavailable
30
BOLT(3RV)
97014-06035-00
Unavailable
31
CLUTCH, HUB
(102-25366-00-00)
Unavailable
32
SPROCKET, DRIVEN (37T)
122-25437-11-00
Unavailable
32
SPROCKET, DRIVN 49T
(122-25449-10-33)
Unavailable
32
SPROCKET, DRIVN 51T
(122-25451-10-00)
Unavailable
32
SPROCKET, DRIVN 53T
(122-25453-10-33)
Unavailable
32
SPROCKET DRIVN39T
12N-25439-20-33
Unavailable
32
SPROCKET, DRIVEN (35T)
5A7-25435-01-00
Unavailable
33
WASHER
4AW-25412-00-00
Unavailable
34
NUT(6L2)
95333-08600-00
Unavailable
35
BOLT(1AJ)
90101-08672-00
Unavailable
36
AXLE, WHEEL
(357-25381-00-00)
Unavailable
37
AXLE, SPROCKET
(102-25387-02-00)
Unavailable
38
BEARING(3BN)
93306-00438-00
Unavailable
39
CIRCLIP(5U8)
99009-42500-00
Unavailable
40
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
41
COLLAR
(90387-12098-00)
Unavailable
41
COLLAR 102253830000
90387-12412-00
Unavailable
42
PULLER, CHAIN
4GL-2538A-10-00
Unavailable
43
PULLER, CHAIN 1
(130-25388-09-00)
Unavailable
44
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
45
WASHER, SPRING
92995-06100-00
Unavailable
46
NUT, HEXAGON
95380-06600-00
Unavailable
47
BOLT(3RV)
97014-06035-00
Unavailable
48
NUT, HEXAGON
90170-18165-00
Unavailable
49
NUT, SPEC''L SHAPE
(90179-10106-00)
Unavailable
50
BOLT 1022537300
90109-08183-00
Unavailable
51
BAR, TENSION
(102-25371-00-00)
Unavailable
52
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
53
WASHER, PLAIN
92990-08200-00
Unavailable
54
. NUT
95380-08700-00
Unavailable
55
CLIP (156-83525-00)
90468-10050-00
Unavailable
56
PIN, COTTER
91490-20025-00
Unavailable
57
SPRING, COMPRESSION
(90501-20129-00)
Unavailable
58
UNAVAILABLE IN PRICE BOOK
94504-10100-00
Unavailable
59
420-106L
94580-52106-00
Unavailable
60
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
