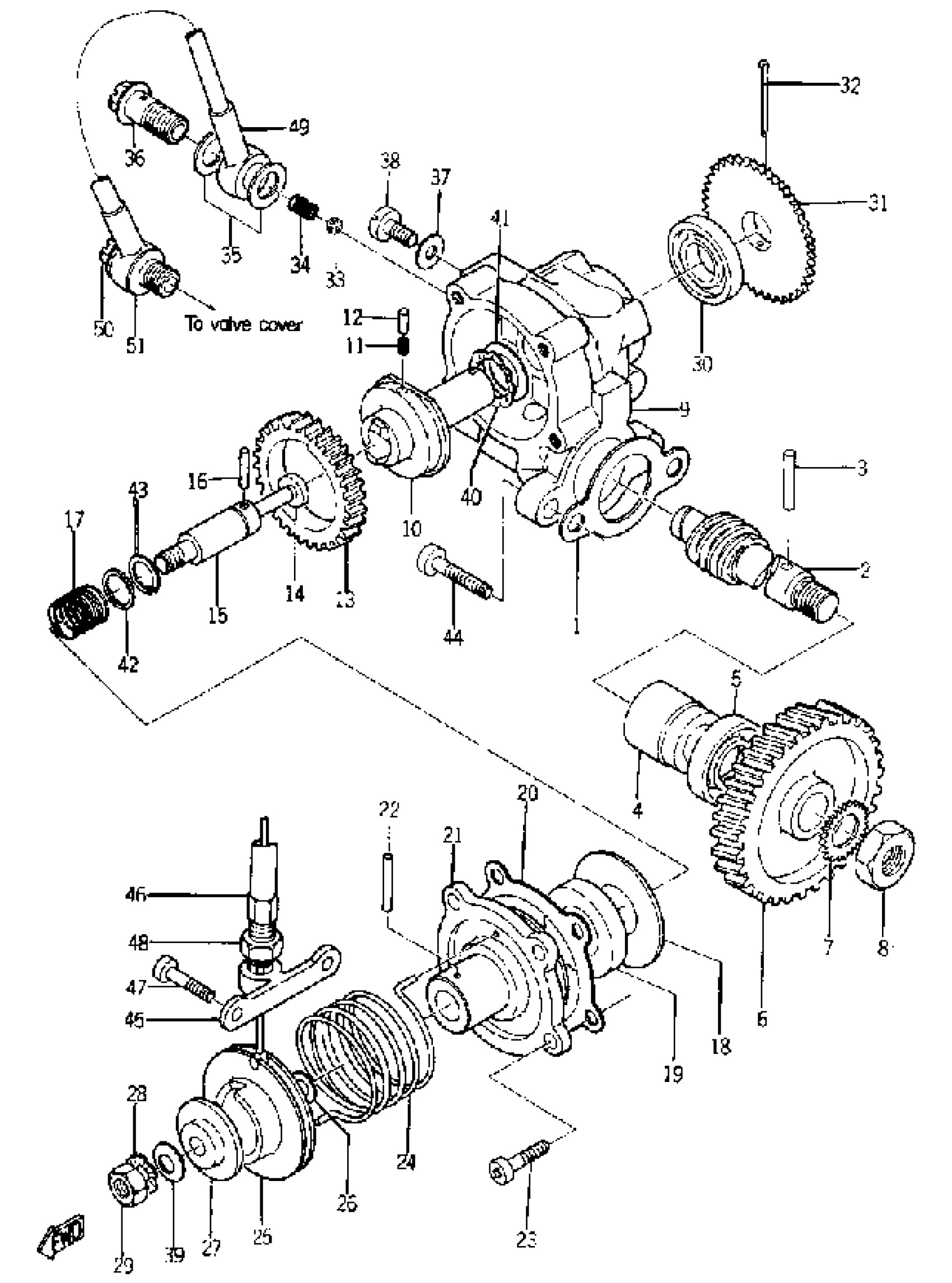

Yamaha YG1T (TRAILMASTER) 124 1963 OIL PUMP Diagram
#
1
OIL PUMP ASSEMBLY
(126-13101-02-00)
Unavailable
1
GASKET, PUMP CASE
126-13116-01-00
$8.99
1
PIN, DOWEL
(93602-04029-00)
Unavailable
2
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
3
PLATE, STARTER
(137-13128-00-00)
Unavailable
3
PIN,DOWEL (137)
93603-22028-00
$3.76
4
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
5
OIL SEAL (10X22X7-137)
93101-10002-00
$8.49
6
GEAR, PUMP DRIVE
(126-13178-00-00)
Unavailable
7
WASHER (688)
92990-08400-00
Unavailable
8
. NUT
95380-08700-00
Unavailable
11
SPRING, COMPRESSION
(90501-02016-00)
Unavailable
13
GEAR, WORM WHEEL
(126-13124-00-00)
Unavailable
14
OIL SEAL
93104-04114-00
$4.29
16
PIN,DOWEL (137)
93603-12030-00
$2.07
17
SPRING, PLNGR RTRN
(137-13135-00-00)
Unavailable
18
PLATE, WORM WHEEL
(137-13127-00-00)
Unavailable
19
OIL SEAL (14X25X5-2H7)
93104-14059-00
Unavailable
20
. GASKET, PUMP CASE COVER
137-13142-00-00
Unavailable
22
. PIN
91608-20010-00
Unavailable
23
SCREW, PAN HEAD
92501-04010-00
Unavailable
24
. NO LONGER AVAILABLEK (137-13145-00)
90508-10216-00
Unavailable
25
PULLEY, ADJUSTING
(126-13144-00-00)
Unavailable
26
SHIM,PLUNGER
137-13137-00-10
Unavailable
27
PLATE, ADJUSTING
137-13138-01-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
NUT
(137-13139-00-00)
Unavailable
30
OIL SEAL (J10)
93101-10090-00
Unavailable
32
. PIN, COTTER
91401-12018-00
Unavailable
33
BALL
93505-32002-00
Unavailable
34
SPRING, COMPRESSION
(90501-02017-00)
Unavailable
35
GASKET(3FP)
90430-06224-00
Unavailable
36
BOLT UNION 137131650000
90401-06001-00
Unavailable
37
GASKET 137131870000
90430-04004-00
Unavailable
38
SCREW, PAN HEAD
(164-81245-20-00)
Unavailable
39
SHIM,PLUNGER
137-13137-00-10
Unavailable
40
WASHER, WAVE (137)
90206-11016-00
Unavailable
41
PLATE, CAM THRUST
137-13148-00-00
Unavailable
42
SEAT, SPRING
(137-13134-00-00)
Unavailable
43
. CIRCLIP, PLUNGER
93440-08001-00
Unavailable
44
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
45
HOLDER, ADJUSTING
(126-26381-00-00)
Unavailable
46
HOLDER, ADJUSTING
(126-26381-00-00)
Unavailable
47
SCREW, PAN HEAD
(92503-05012-00)
Unavailable
48
NUT(650)
95380-06700-00
Unavailable
49
PIPE, DELIVERY 1
(126-13161-00-00)
Unavailable
50
BOLT UNION 137131650000
90401-06001-00
Unavailable
51
GASKET 137131870000
90430-04004-00
Unavailable
