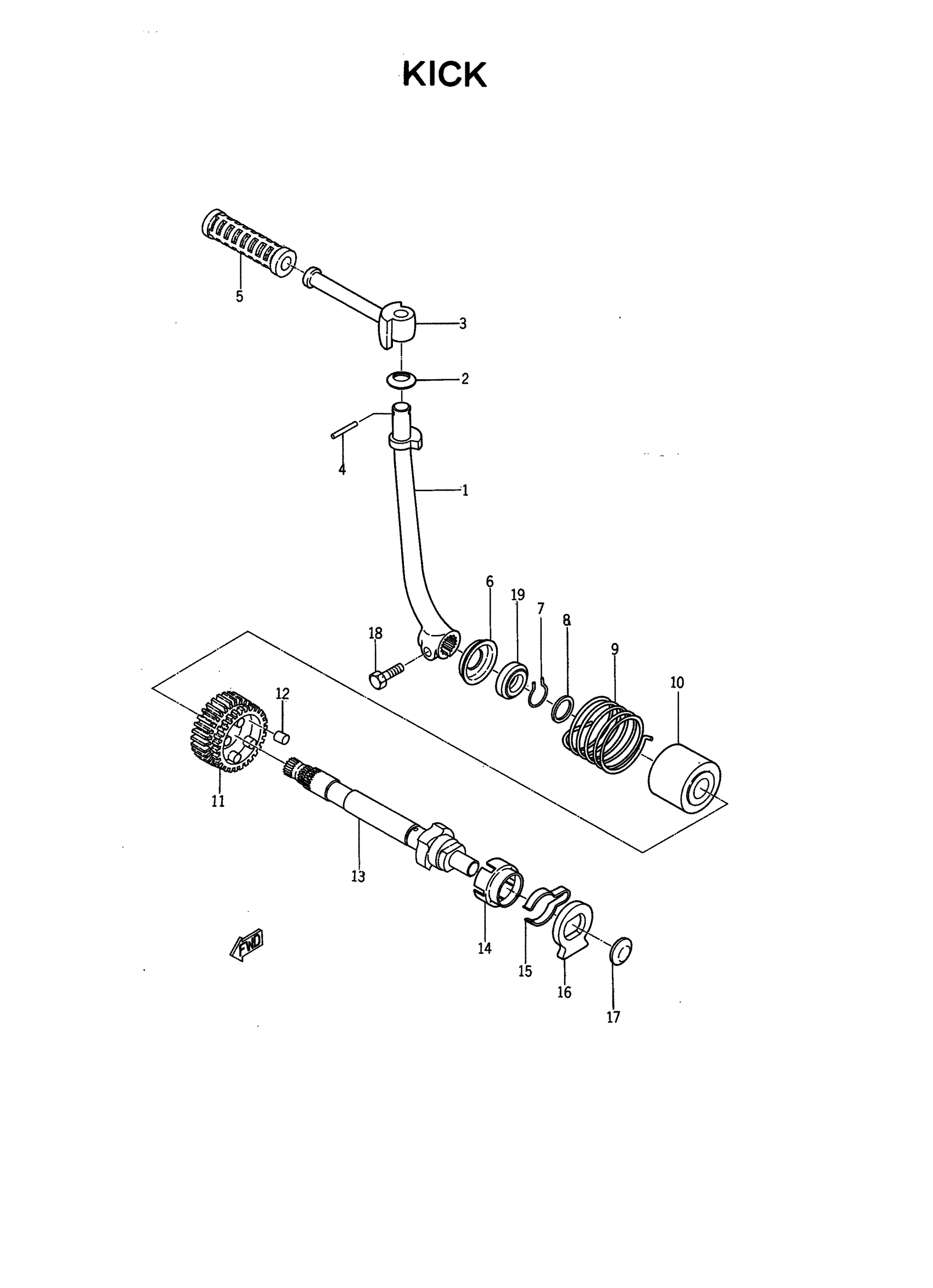

Yamaha YG1T (TRAILMASTER) 124 1963 KICK Diagram
#
Description
Price
1
KICK CRANK ASSEMBLY
(127-15610-01-91)
Unavailable
2
WASHER,WAVE
90206-10014-00
Unavailable
3
LEVER, KICK
(214-15612-01-00)
Unavailable
4
PIN, DOWEL
(93604-18017-00)
Unavailable
5
COVER, KICK LEVER
(102-15618-00-00)
Unavailable
6
COVER, KICK AXLE
(122-15662-00-00)
Unavailable
7
CLIP
(90468-18014-00)
Unavailable
8
WASHER, PLATE
(90201-15233-00)
Unavailable
9
SPRING, TORSION
(90508-26044-00)
Unavailable
10
SPACER
(126-15666-00-00)
Unavailable
11
GEAR, KICK
(122-15641-00-00)
Unavailable
12
UNAVAILABLE IN PRICE BOOK (102-15688-00)
93606-06082-00
Unavailable
13
KICK AXLE ASSEMBLY
(122-15660-00-00)
Unavailable
14
RETAINER, KICK ROLLER
102-15689-00-00
Unavailable
15
CLIP
(90468-12011-00)
Unavailable
16
STOPPER
(102-15668-00-00)
Unavailable
17
PLUG, BLIND
(101-15678-00-00)
Unavailable
18
BOLT, HEXAGON
97017-06020-00
Unavailable
19
OIL SEAL (15X26X6-102)
93109-15001-00
Unavailable
