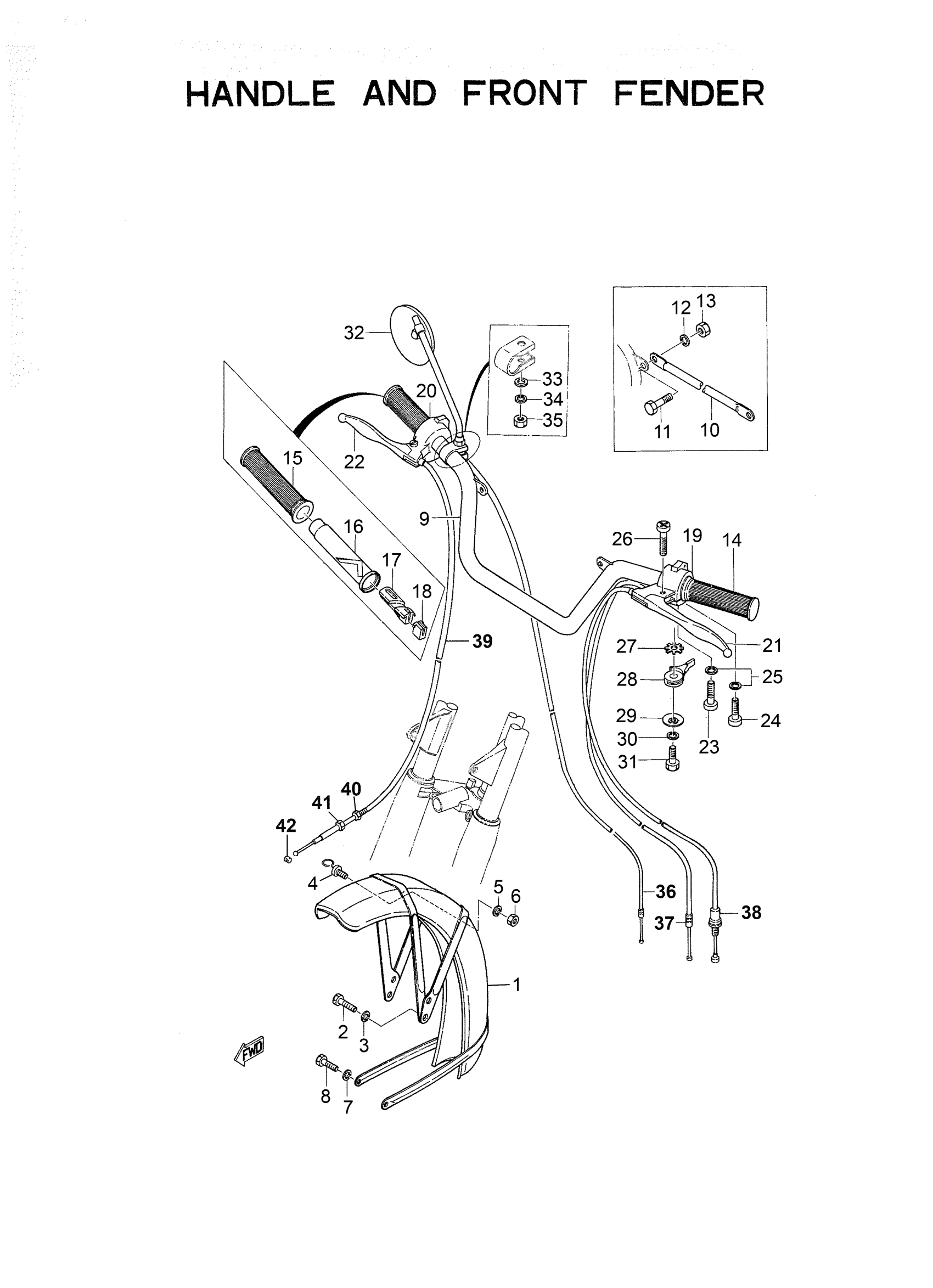

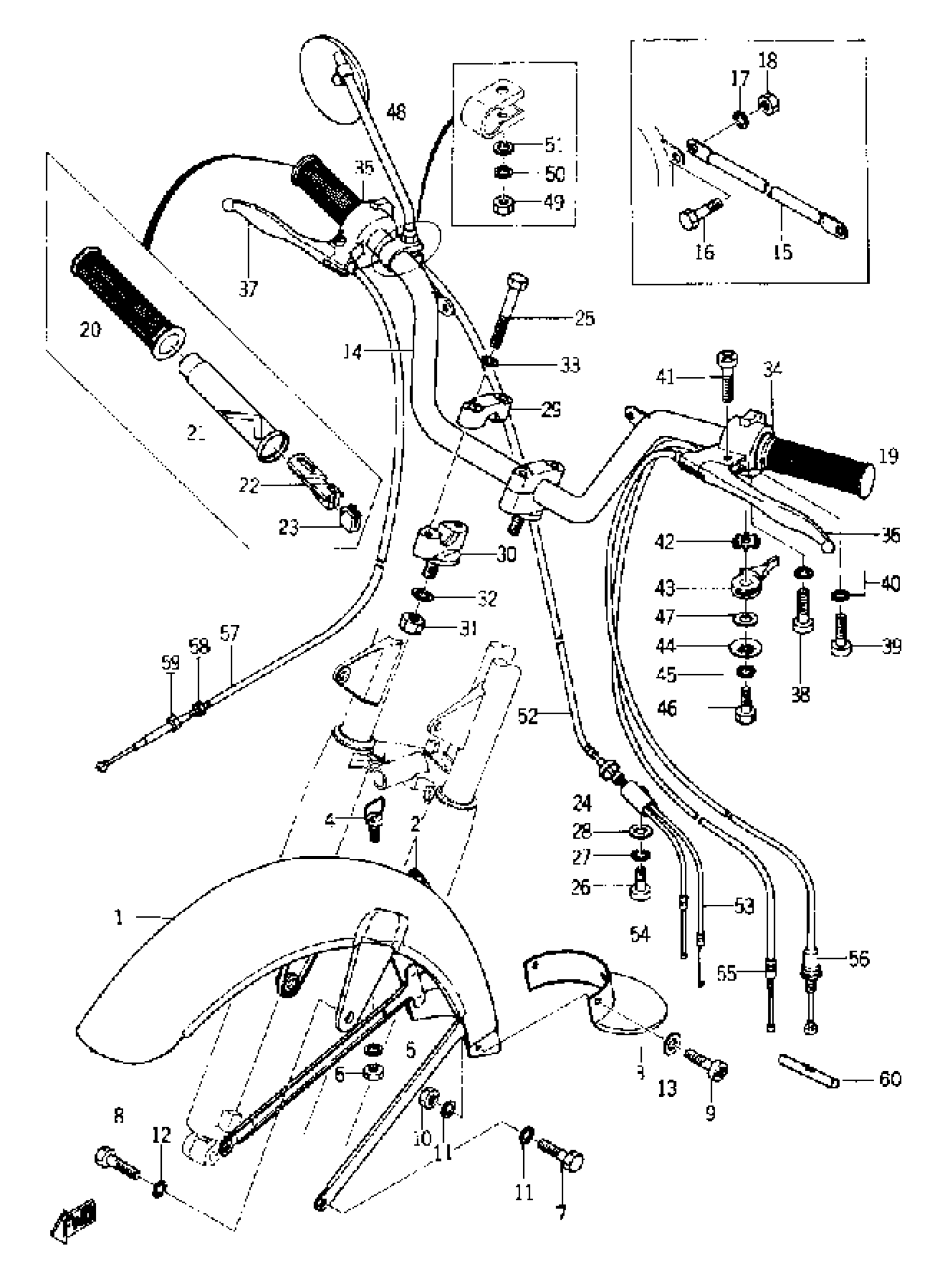

Yamaha YG1T (TRAILMASTER) 124 1963 HANDLE AND FRONT FENDER Diagram

#

Description
Price

2

FLAP, FRONT FENDER

(122-21521-00-33)

Unavailable

3

FLAP, FRONT FENDER

(122-21521-00-33)

Unavailable

4

NUT(6L2)

95333-08600-00

$2.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

BOLT(3JP)

97017-06010-00

$3.76

8

BOLT, HEXAGON

97013-08016-00

$1.01

9

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

10

NUT(650)

95380-06700-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

HANDLEBAR 001

(137-26111-60-00)

Unavailable

14

MIRROR ASSEMBLY

(257-26290-00-00)

Unavailable

15

HANDLEBAR

(125-26111-11-00)

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

GRIP LH

(102-26241-00-00)

Unavailable

20

GRIP RH

(102-26242-00-00)

Unavailable

21

TUBE, THRTL GUIDE

(207-26243-00-00)

Unavailable

22

SLIDER, THROTTLE

(102-26244-00-00)

Unavailable

23

STOPPER, CABLE

(135-26245-00-00)

Unavailable

24

CONNECTOR, CABLE

137-26261-01-00

Unavailable

25

BOLT (682)

97095-06040-00

Unavailable

26

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

29

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

30

HOLDER, HANDLE UNDER

462-23442-00-98

Unavailable

31

NUT, SELF LOCKING

90185-10031-00

Unavailable

32

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

LEVER HOLDER ASSEMBLY 1

(124-82710-11-94)

Unavailable

35

LEVER HOLDER ASSEMBLY 2

(122-82720-11-94)

Unavailable

35

LEVER HOLDER ASSEMBLY 2

(124-82720-10-94)

Unavailable

36

LEVER L

803-83912-00-38

Unavailable

37

. LEVER R

122-83922-01-00

Unavailable

38

SCREW, PAN HEAD

92501-05006-00

Unavailable

39

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

40

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

41

SCREW, PAN HEAD

92501-05006-00

Unavailable

42

WASHER, SPEC''L SHAP

(90209-12115-00)

Unavailable

43

LEVER, STARTER

103-82941-00-00

Unavailable

44

COVER, STARTER

(122-83942-00-00)

Unavailable

45

WASHER, SPRING

92995-06100-00

Unavailable

46

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

47

PLATE, SPRING

(102-83929-00-00)

Unavailable

48

MIRROR ASSEMBLY

(257-26290-00-00)

Unavailable

49

NUT(6L2)

95333-08600-00

$2.49

50

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

51

WASHER, PLAIN

92990-08200-00

Unavailable

52

CABLE, THROTTLE 1

(122-26311-00-00)

Unavailable

52

CABLE, STARTER 1

(124-26331-10-00)

Unavailable

52

CABLE, THROTTLE 1

126-26311-12-00

Unavailable

53

CABLE, THROTTLE 1

126-26311-12-00

Unavailable

54

CABLE, PUMP

(126-26321-00-00)

Unavailable

55

CABLE, STARTER 1

(122-26331-00-00)

Unavailable

55

CABLE, STARTER 1

(124-26331-10-00)

Unavailable

56

CABLE, CLUTCH

122-26335-00-00

Unavailable

56

WIRE, CLUTCH

124-26335-10-00

Unavailable

57

CABLE, BRAKE

(102-26341-01-00)

Unavailable

57

CABLE, BRAKE

109-26341-01-00

Unavailable

57

CABLE, BRAKE

109-26341-10-00

Unavailable

58

BOLT (109-26345-00)

90123-06011-00

Unavailable

59

NUT (109-26344-00)

90179-06143-00

Unavailable

60

END, WIRE

164-26363-00-00

Unavailable
