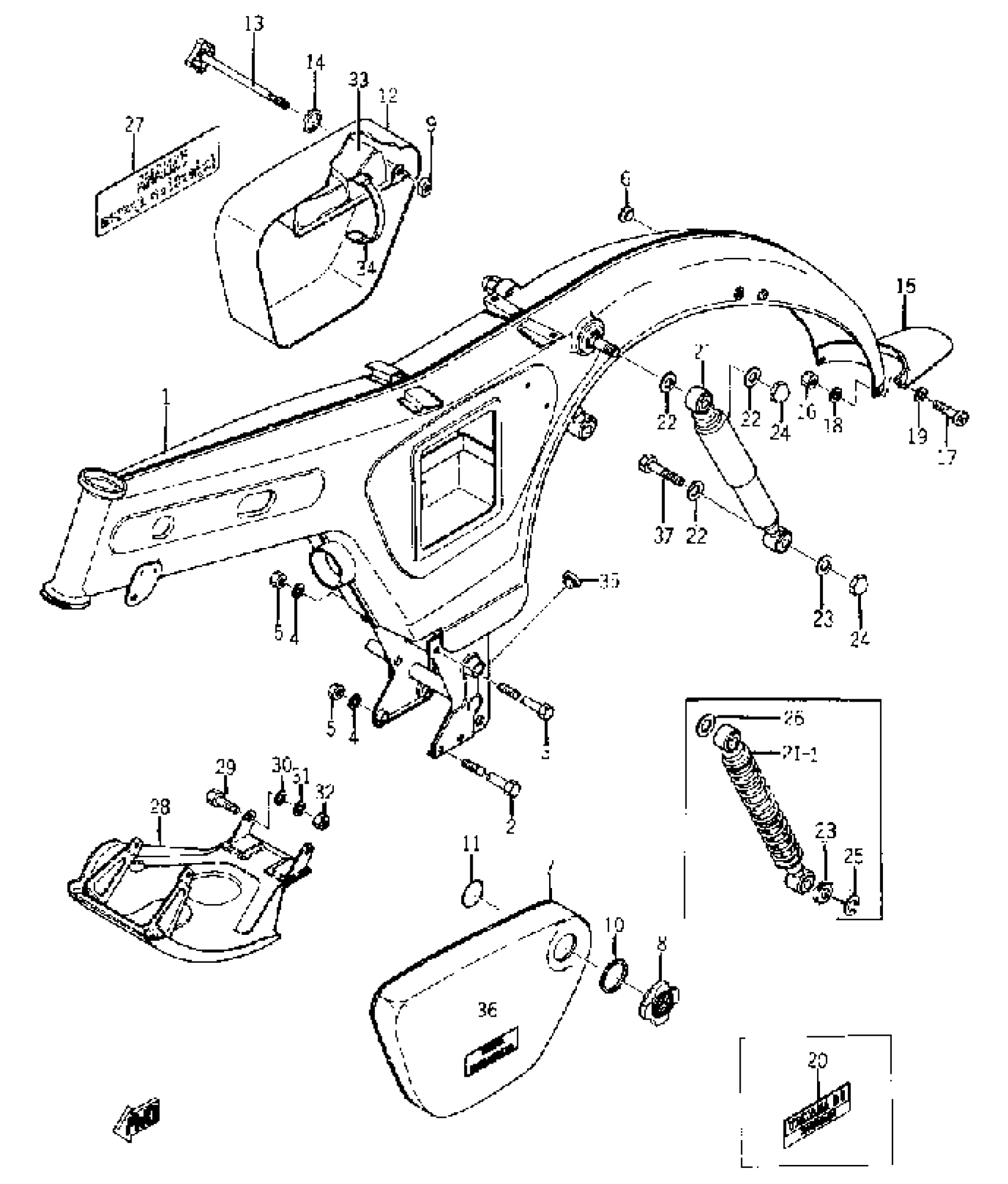

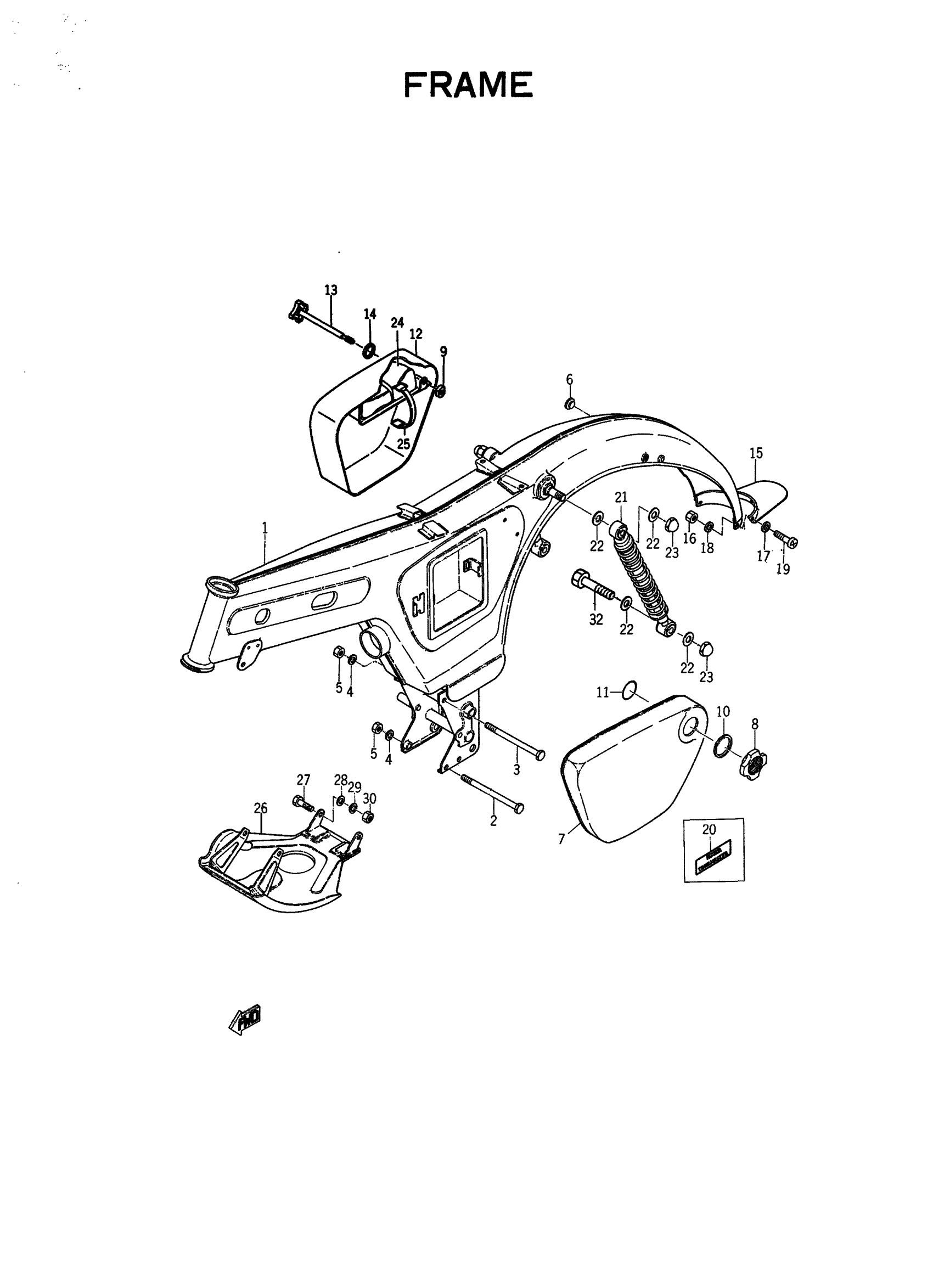

Yamaha YG1T (TRAILMASTER) 124 1963 FRAME Diagram
#
1
COVER, SIDE 1
(122-21711-01-81)
Unavailable
1
KNOB, SIDE COVER 2
(122-21724-00-00)
Unavailable
1
FRAME
(127-21110-60-81)
Unavailable
1
SHK/ABS ASSEMBLY, REAR
(130-22210-00-00)
Unavailable
2
COVER, SIDE 2
(122-21721-00-81)
Unavailable
2
FRAME
(124-21110-01-81)
Unavailable
6
PLUG, SPEC''L SHAPE
(90338-09060-00)
Unavailable
8
KNOB, SIDE COVER 1
102-21714-00-00
Unavailable
10
SPACER, HANDLE 2 (648)
90202-34043-00
Unavailable
11
RING, STOP
(102-21718-00-00)
Unavailable
13
KNOB, SIDE COVER 2
(126-21724-00-00)
Unavailable
14
WASHER, PLATE
90202-06015-00
Unavailable
15
FLAP
(122-21621-00-00)
Unavailable
16
NUT, HEXAGON
95380-06600-00
Unavailable
17
SCREW, PAN
98507-06014-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
20
EMBLEM 3
(124-21783-00-00)
Unavailable
22
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
22
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
23
WASHER PLATE 122222440000
90201-12175-00
Unavailable
23
WASHER PLATE 122222440000
90201-12175-00
Unavailable
24
NUT, CROWN
(90176-12006-00)
Unavailable
25
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
26
WASHER, PLAIN
92990-14200-00
Unavailable
27
SIDE COVER ASSEMBLY 1
(137-21710-00-33)
Unavailable
28
PROTECTOR, ENGINE
(125-21471-00-00)
Unavailable
29
BOLT
97013-08035-00
Unavailable
30
WASHER, PLAIN
92990-08200-00
Unavailable
33
UNAVAILABLE IN PRICE BOOK
206-28100-00-
Unavailable
34
BAND, TOOL
(122-21376-00-00)
Unavailable
35
STOPPER, MAIN STAND
128-27114-00-00
Unavailable
36
FRAME
(124-21110-01-81)
Unavailable
37
BOLT
(90101-12089-00)
Unavailable
37
BOLT
(90101-12089-00)
Unavailable
