ELECTRICAL

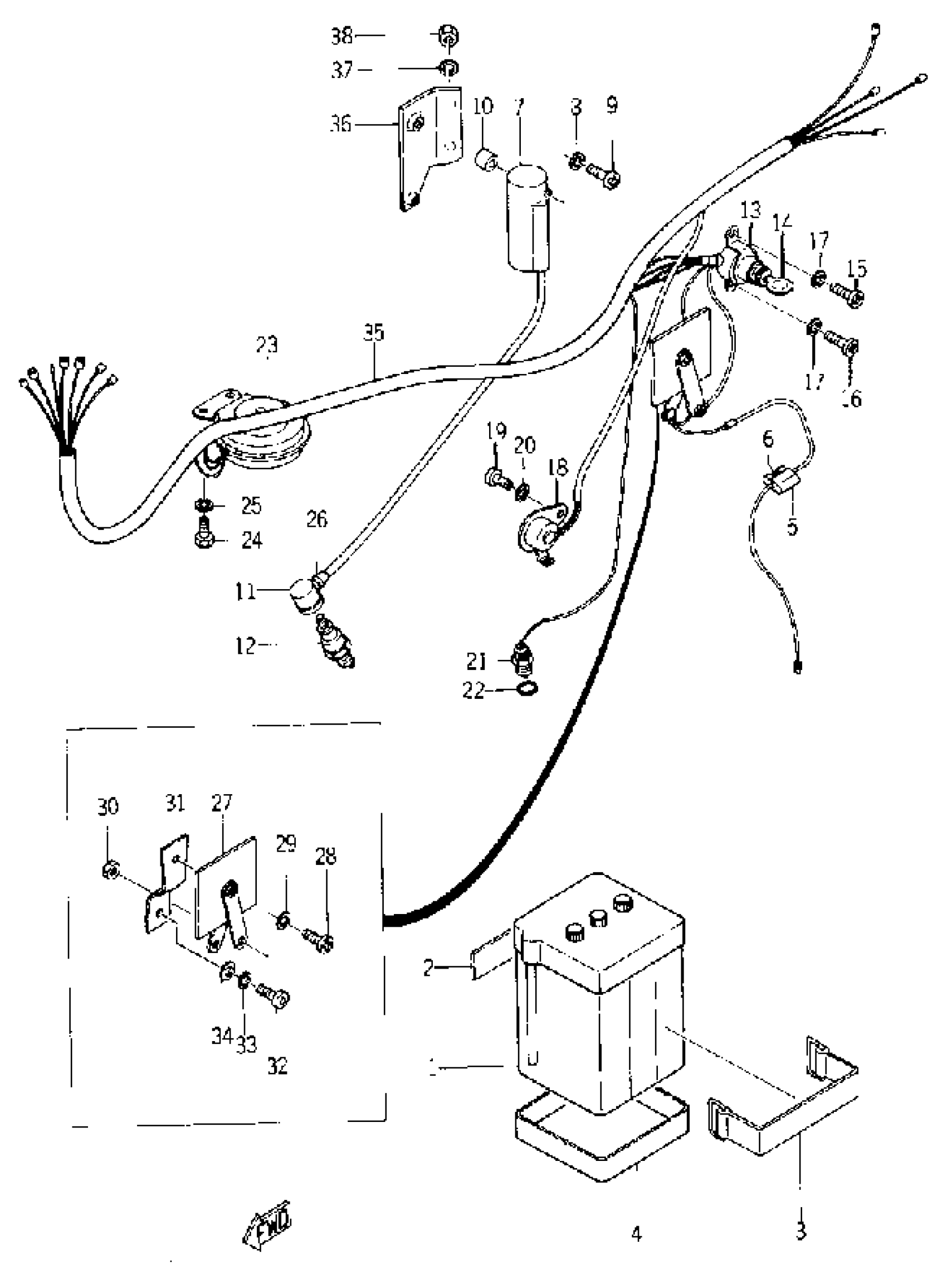

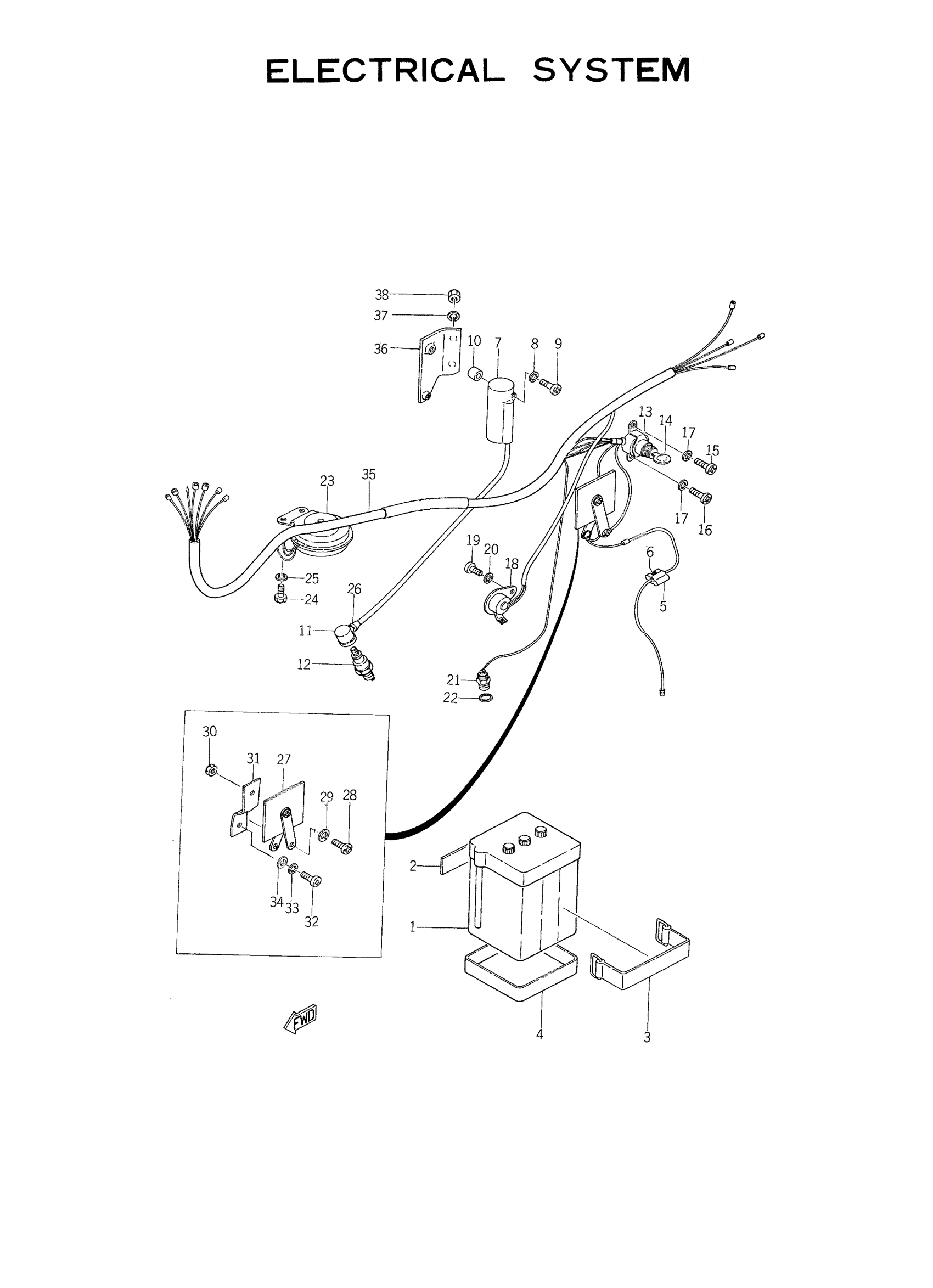

Yamaha YG1T (TRAILMASTER) 124 1963 ELECTRICAL Diagram
#
1
CAP, BATTERY
(104-82111-20-00)
Unavailable
1
6N4A4D YUASA BATTERY
6N4-A4DY0-00-00
Unavailable
2
PAD, BATTERY
(122-82121-00-00)
Unavailable
3
BAND, BATTERY
26L-82131-00-00
$7.99
4
SEAT, BATTERY
(104-82122-00-00)
Unavailable
5
FUSE HOLDER ASSY
55K-82150-02-00
$14.49
6
FUSE
1A0-82151-00-00
$16.49
7
IGNITION COIL ASSEMBLY
(109-82310-30-00)
Unavailable
8
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
9
SCREW, PAN HEAD (686)
98580-05035-00
Unavailable
10
COLLAR
(90387-05014-00)
Unavailable
11
PLUG CAP ASSY
56J-82370-00-00
$64.99
12
B7HS NGK 4PK
B7H-S0000-00-00
Unavailable
13
MAIN SWITCH ASSEMBLY
122-82508-20-00
Unavailable
15
SCREW PAN HEAD
98580-06010-00
$8.49
16
SCREW, PAN
98507-06014-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
STOPSWITCHASSY
122-82530-02-00
Unavailable
19
SCREW, PAN HEAD
(92503-05012-00)
Unavailable
20
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
21
NEUTRAL SWITCH ASSEMBLY
(146-82540-01-00)
Unavailable
22
WASHER, PLATE
90201-12790-00
Unavailable
23
HORN
(122-83371-11-00)
Unavailable
24
BOLT(3JP)
97017-06010-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
SEAL, H/TENS CORD
(104-82373-00-00)
Unavailable
27
RECTIFIER ASSEMBLY
(127-81970-40-00)
Unavailable
28
SCREW, PAN HEAD
(92503-04008-00)
Unavailable
28
SCREW, PAN HEAD
(92503-04008-00)
Unavailable
29
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
30
NUT
95380-05700-00
Unavailable
31
PLATE, RECTIFR FTNG
(122-81975-00-00)
Unavailable
32
SCREW PAN HEAD
98580-06010-00
$8.49
33
WASHER, SPRING
92995-06100-00
Unavailable
34
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
35
WIRE HARNESS ASSEMBLY
(122-82590-20-00)
Unavailable
36
HOLDER, COIL
(127-21363-00-00)
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
NUT(650)
95380-06700-00
Unavailable
