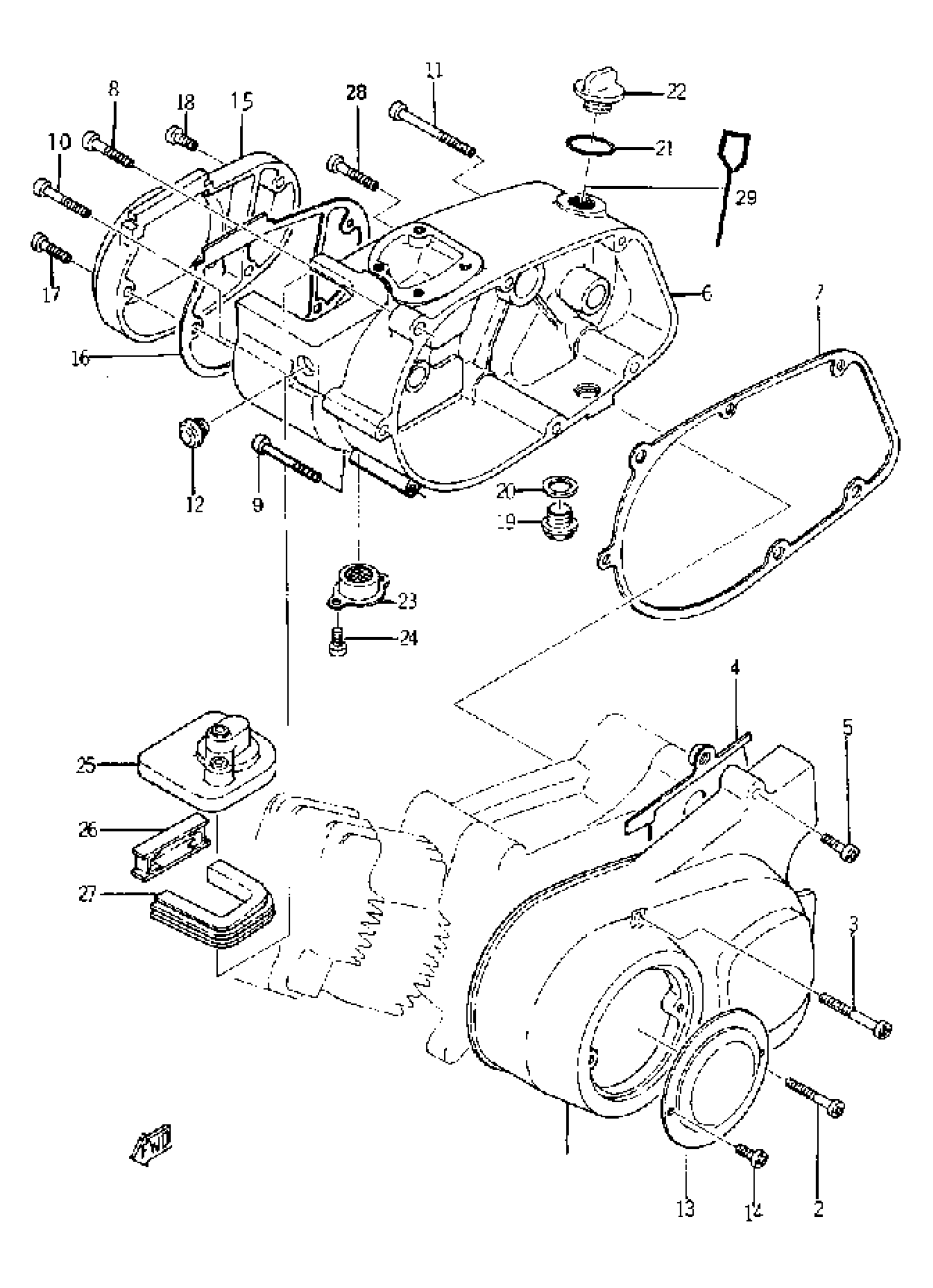

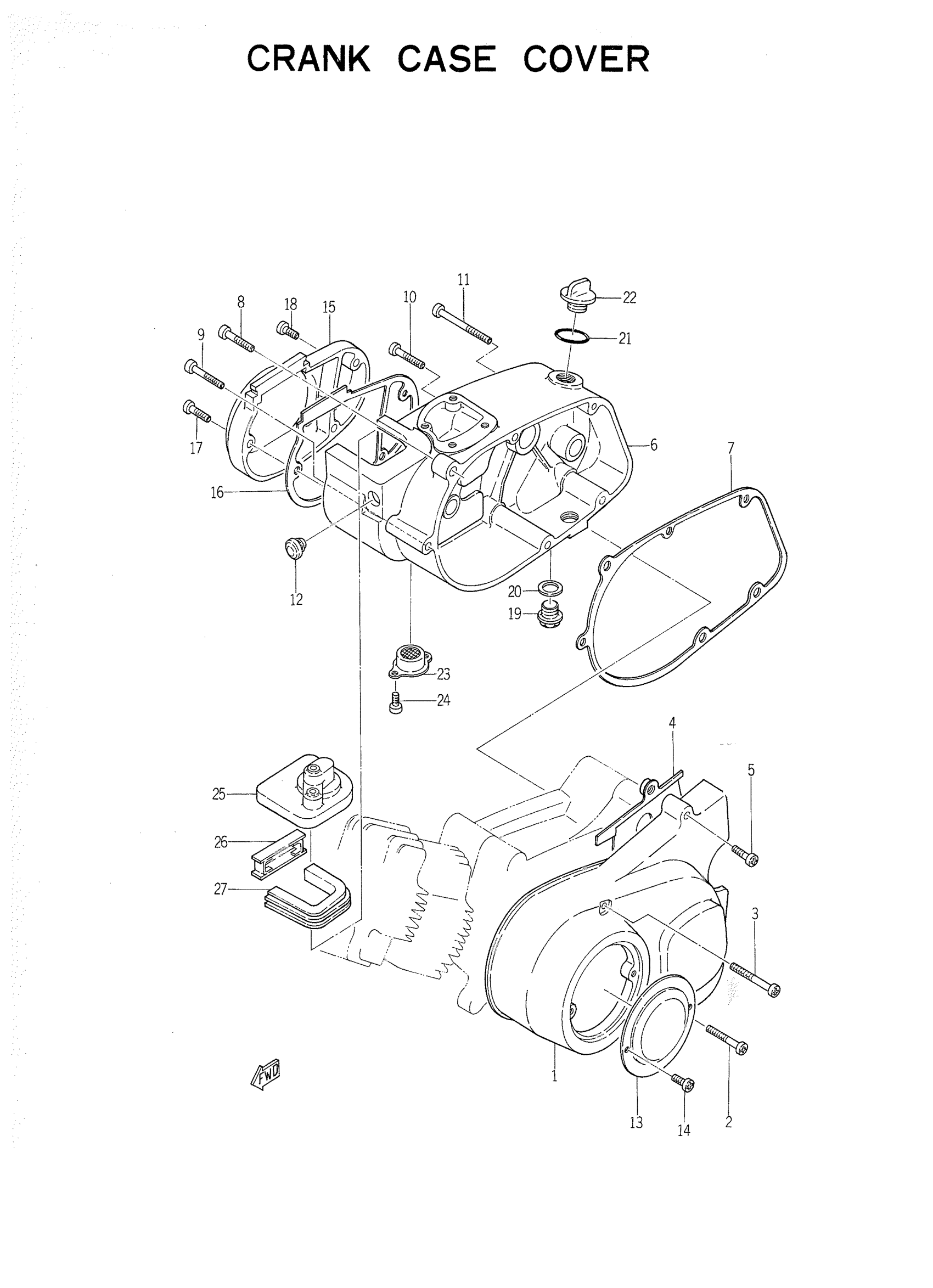

Yamaha YG1T (TRAILMASTER) 124 1963 CRANKCASE COVER Diagram

#

Description
Price

1

CRCS COVER ASSEMBLY L

(122-15410-02-00)

Unavailable

2

SCREW PAN HEAD

98580-06575-00

$10.79

3

SCREW, PAN

98507-06085-00

$4.92

4

COVER, CHAIN CASE

(102-15418-00-00)

Unavailable

5

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

6

CRCS COVER ASSEMBLY R

(122-15420-02-00)

Unavailable

6

CRCS COVER ASSEMBLY R

(126-15420-01-00)

Unavailable

7

GASKET, CRCS COVER

(102-15451-00-00)

Unavailable

7

GASKET,CRCS COVER

126-15451-09-00

Unavailable

8

SCREW PAN HEAD

98580-06040-00

$5.87

9

SCREW PAN HEAD

98580-06545-00

$6.49

10

SCREW PAN HEAD

98580-06550-00

$5.87

11

SCREW PAN HEAD

98580-06575-00

$10.79

12

GROMMET 122154860000

90480-12012-00

$6.09

13

COVER, GENERATOR

(123-15415-00-00)

Unavailable

14

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

15

COVER, CARBURETOR

(122-15413-00-00)

Unavailable

15

COVER, CARBURETOR

(126-15413-00-00)

Unavailable

16

GASKET, CARB COVER

(122-15453-00-00)

Unavailable

16

GASKET, CARB COVER

126-15453-00-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

PLUG, STRAIGHT SCREW

90340-14119-00

Unavailable

20

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

21

O-RING

(93210-22028-00)

Unavailable

22

PLUG, OIL

116-15363-00-00

Unavailable

23

CLEANER, DRAIN

(126-15433-00-00)

Unavailable

24

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

25

CAP, CARBURETOR

(122-14481-00-00)

Unavailable

26

HOLDER, GUIDE

(122-14459-00-00)

Unavailable

27

GUIDE, ELEMENT

(122-14458-00-00)

Unavailable

28

SCREW, PAN HEAD

98580-06580-00

Unavailable

29

UNAVAILABLE IN PRICE BOOK

02-21536-10-00

Unavailable
