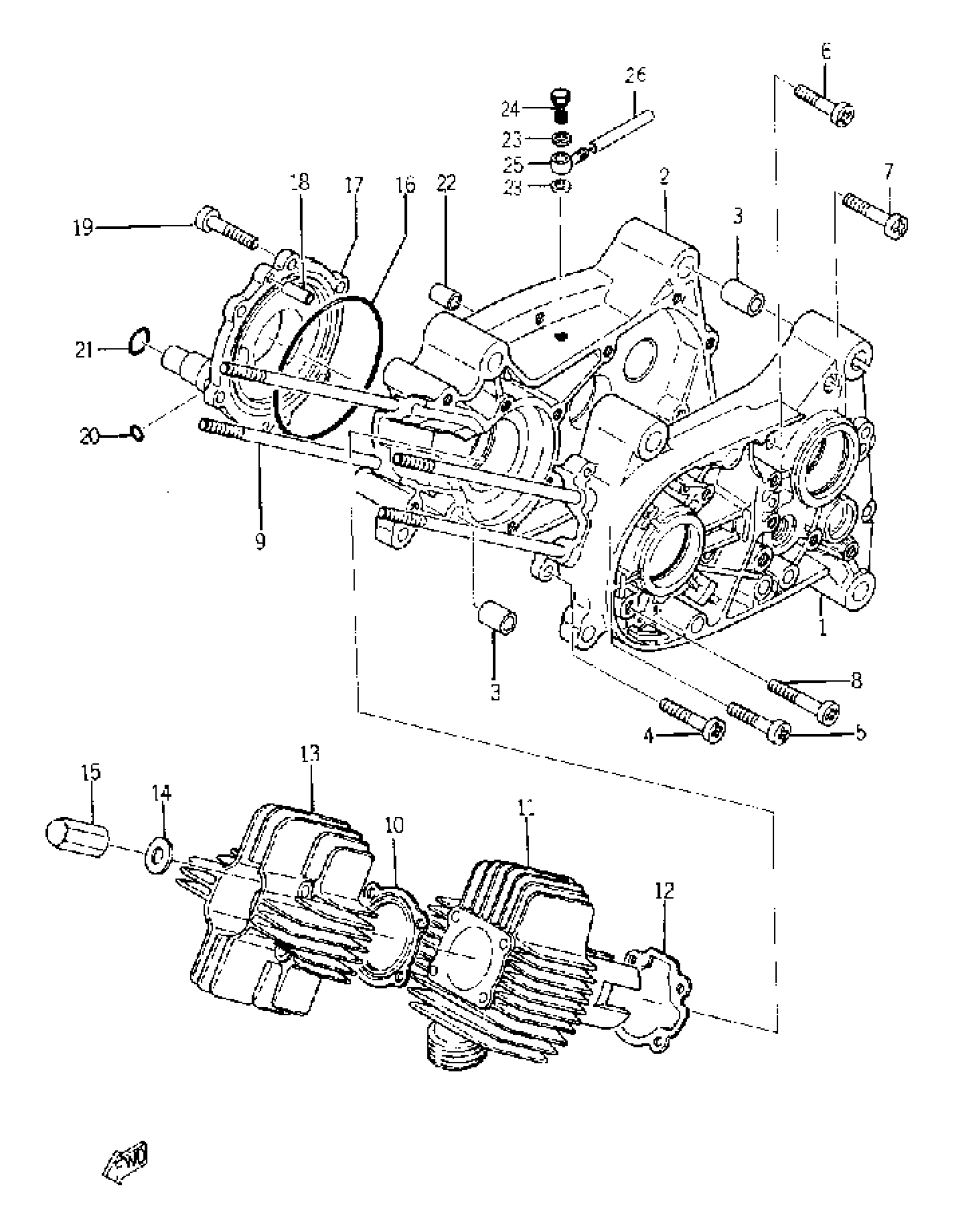

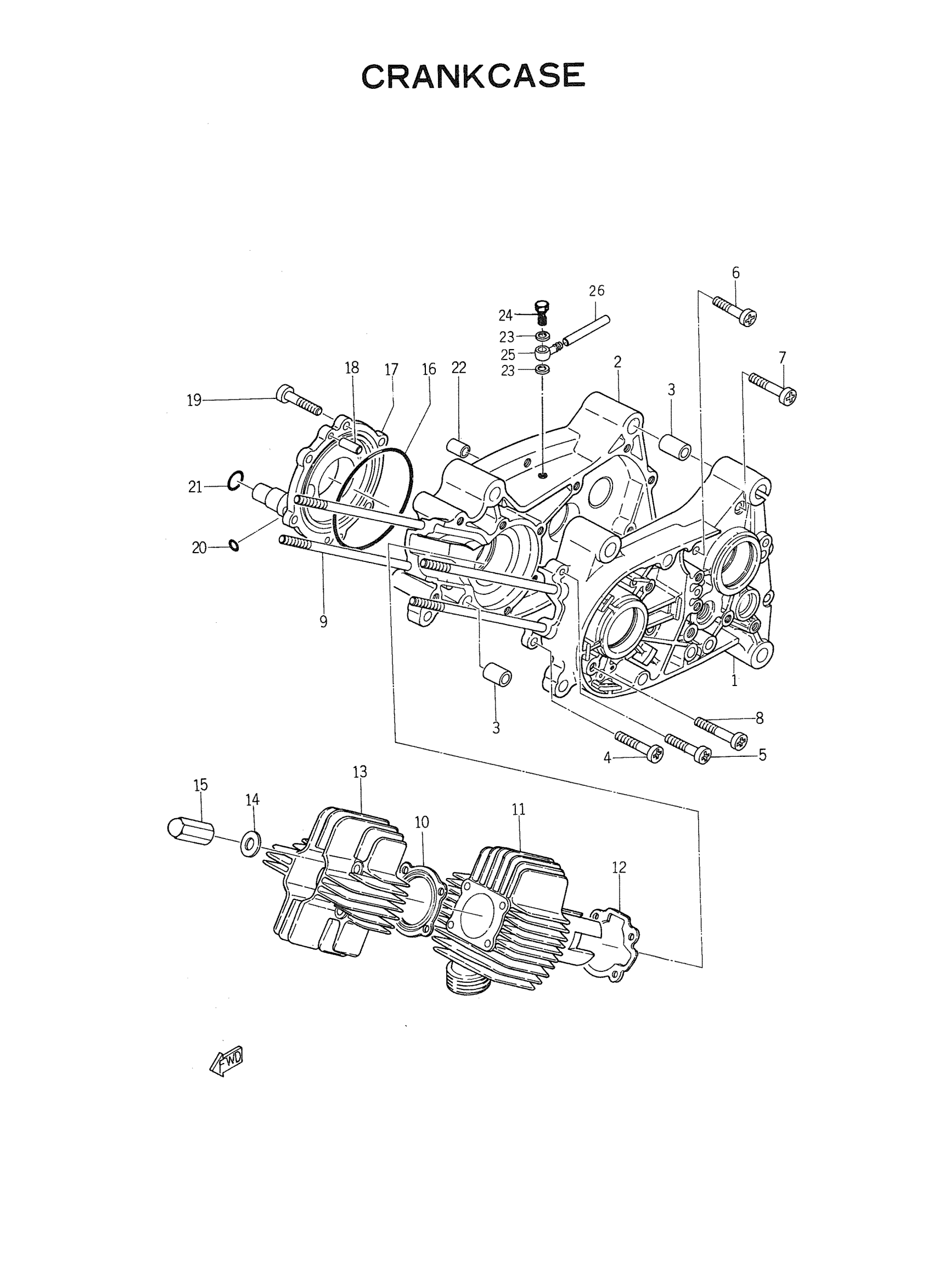

Yamaha YG1T (TRAILMASTER) 124 1963 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE 1
(122-15111-03-00)
Unavailable
2
CRANKCASE 2
(122-15121-03-00)
Unavailable
2
CRANKCASE 2
(126-15121-02-00)
Unavailable
3
PIN, DOWEL
99530-12016-00
$4.89
4
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
5
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
6
SCREW PAN HEAD
98580-06545-00
$5.60
7
SCREW PAN HEAD
98580-06550-00
$8.49
8
SCREW PAN HEAD
98580-06565-00
Unavailable
9
BOLT, STUD 1221136100
90116-06100-00
$9.49
10
GASKET, CYLINDER HEAD
2F4-11181-00-00
$50.99
11
CYLINDER 1
(129-11311-00-00)
Unavailable
12
GASKET, CLYNDR
122-11351-10-00
Unavailable
13
HEAD, CYLINDER 1
(180-11111-02-00)
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
15
NUT CAP 126111716000
90176-06002-00
Unavailable
16
RING, RUBBER
(120-13554-00-00)
Unavailable
17
COVER, VALVE
(122-13551-01-00)
Unavailable
17
COVER, VALVE
(126-13551-02-00)
Unavailable
18
PIN,DOWEL (137)
93604-14012-00
Unavailable
19
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
20
O-RING (137)
93210-12014-00
Unavailable
21
O-RING (122)
93210-23029-00
Unavailable
22
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
23
GASKET (5R6)
90430-10171-00
Unavailable
24
BREATHER
(122-15371-90-00)
Unavailable
25
COLLAR, UNION
(122-15372-00-00)
Unavailable
26
PIPE, BREATHER
(122-15373-00-00)
Unavailable
