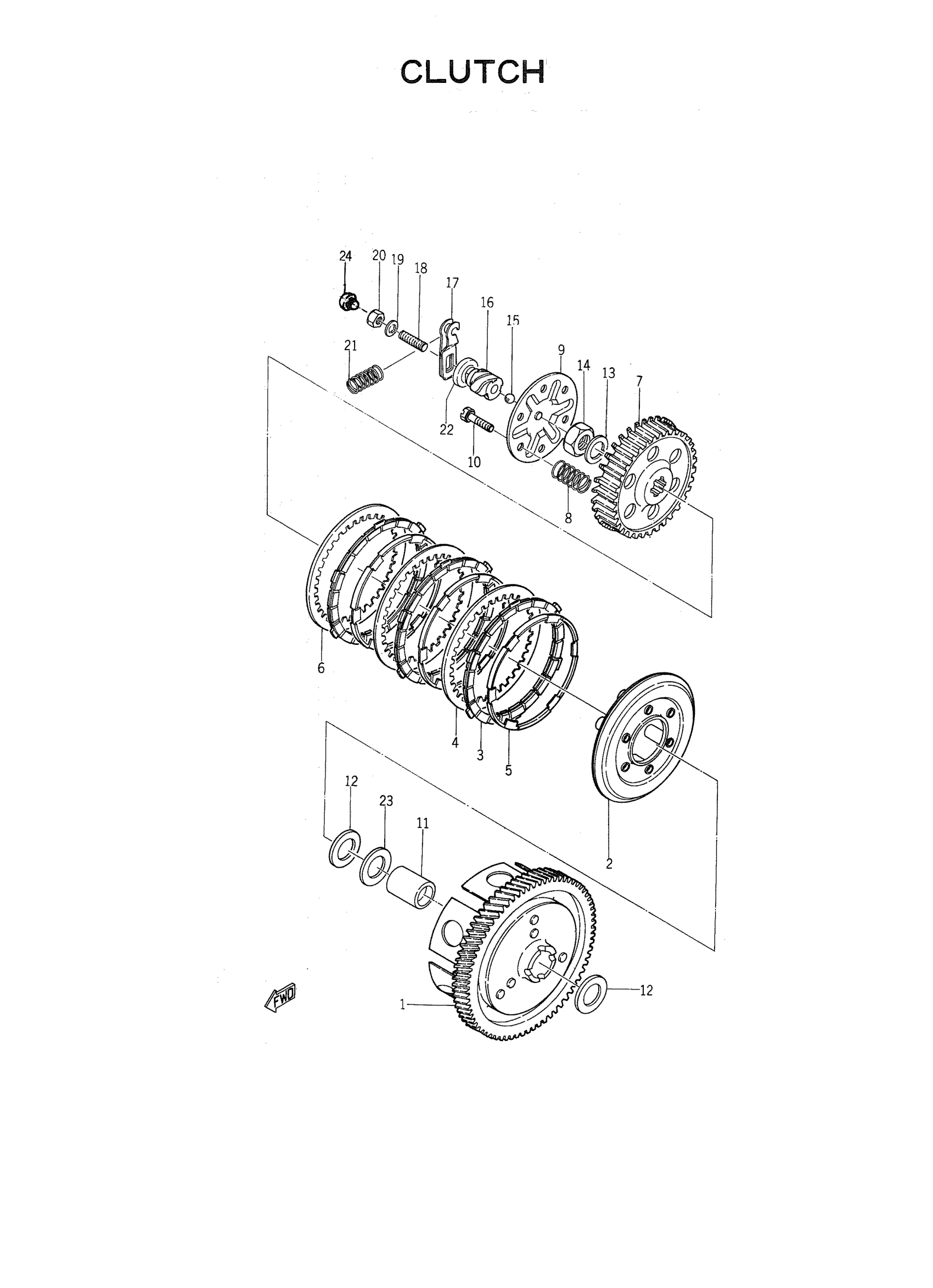

Yamaha YG1T (TRAILMASTER) 124 1963 CLUTCH Diagram
#
Description
Price
1
PRI DRVN GEAR
(122-16105-03-00)
Unavailable
1
CLUTCH ASSEMBLY
(122-16301-01-00)
Unavailable
2
PLATE, PRESSURE 2
(122-16352-01-00)
Unavailable
3
PLATE,FRICTION
122-16321-09-00
Unavailable
4
PLATE, CLUTCH 1
(122-16324-00-00)
Unavailable
5
RING, CUSHION
(122-16367-00-00)
Unavailable
6
PLATE, CLUTCH 2
(122-16325-00-00)
Unavailable
7
BOSS, CLUTCH
(122-16371-00-00)
Unavailable
8
SPRING COMPRESSION180163330000
90501-20126-00
Unavailable
9
PLATE, PRESSURE 1
(122-16351-90-00)
Unavailable
10
SCREW, PAN HEAD(4MY)
98507-05018-00
$3.28
11
SPACER 1
(122-16181-01-00)
Unavailable
11
SPACER 1
(122-16181-04-00)
Unavailable
12
PLATE, THRUST
122-16164-00-00
$7.99
13
YBS67-12 WASHER,SPRING
92990-12100-00
$8.49
14
NUT, HEXAGON
90170-12170-00
Unavailable
15
BALL
93501-04011-00
Unavailable
16
SCREW, PUSH
(122-16341-60-00)
Unavailable
17
LEVER, PUSH
(122-16342-00-00)
Unavailable
18
BOLT, SET
(90113-06012-00)
Unavailable
19
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
20
NUT(650)
95380-06700-00
Unavailable
21
SPRING, COMPRESSION
(90501-08040-00)
Unavailable
22
OIL SEAL, SO-TYPE
93104-15005-00
Unavailable
23
WASHER, PLATE
90201-23315-00
Unavailable
24
COVER, CAP
(122-15417-00-00)
Unavailable
