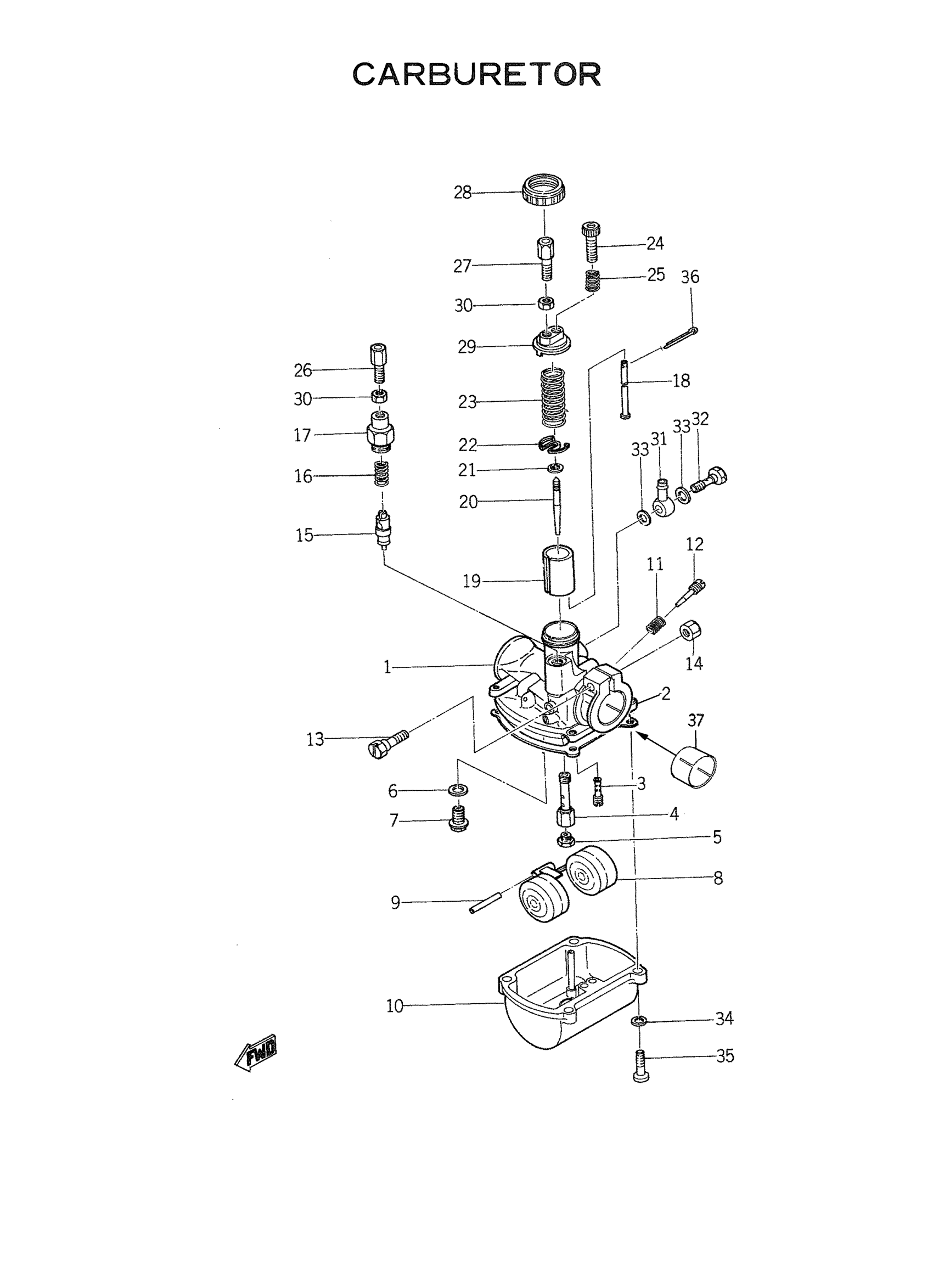

Yamaha YG1K (YG1K) 127 1965 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASY 1

127-14101-01-00

Unavailable

2

GASKET, FLOAT CHAMBER

127-14184-00-00

$10.99

3

. JET, PILOT #175

127-14142-17-00

Unavailable

4

. NOZZLE, MAIN

127-14141-12-00

Unavailable

5

JET, MAIN #70

127-14143-14-00

Unavailable

5

JET, MAIN #80

127-14143-16-00

Unavailable

5

. JET, MAIN #85

127-14143-17-00

Unavailable

5

. JET, MAIN #90

127-14143-18-00

Unavailable

5

JET, MAIN (NO.100)

127-14143-20-00

$7.99

6

WASHER, VALVE SEAT

127-14195-00-00

$7.99

7

VALVE SEAT ASSY (#1.2)

2E9-14190-12-00

$55.99

8

FLOAT

127-14185-00-00

$38.99

9

PIN, FLOAT

127-14186-00-00

$6.65

10

BODY, FLOAT CHMBR 1

127-14181-00-00

Unavailable

11

SPRING, AIR ADJUSTING

127-14134-00-00

$7.99

12

. SCREW, AIR ADJUSTINGSET

127-W1412-00-00

Unavailable

13

. SCREW, BODY FITTING

127-14125-01-00

Unavailable

14

NUT, HOLDING

127-14164-00-00

Unavailable

15

PLUNGER, STARTER

58E-14171-00-00

Unavailable

16

SPRING, PLUNGER

127-14135-00-00

Unavailable

17

CAP, PLUNGER

127-14174-00-00

Unavailable

18

BAR, THROTTLE

127-14114-00-00

Unavailable

19

VALVE, THROTTLE 1

127-14112-15-00

Unavailable

20

NEEDLE

127-14116-09-00

Unavailable

21

CLIP

127-14137-00-00

Unavailable

22

. SEAT, SPRING

296-14136-00-00

Unavailable

23

. SPRING, THRTL VALVE

127-14131-00-00

Unavailable

24

SCREW, THRTL STOP

127-14121-00-00

Unavailable

25

SPRING, THROTTLE STOP

127-14133-00-00

Unavailable

26

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

27

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

28

. CAP, MIXING CHAMBER

127-14168-00-00

Unavailable

29

. TOP, MIXING CHAMBER

127-14158-00-00

Unavailable

30

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

31

. CONNECTOR, BANJO

127-14167-00-00

Unavailable

32

. BOLT, BANJO

127-14166-00-00

Unavailable

33

GASKET

127-14198-00-00

Unavailable

34

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

35

SCREW, PAN HEAD

92503-04020-00

Unavailable

36

. PIN, COTTER

91401-10015-00

Unavailable

37

. GASKET, INSULATING

127-14156-00-00

Unavailable
