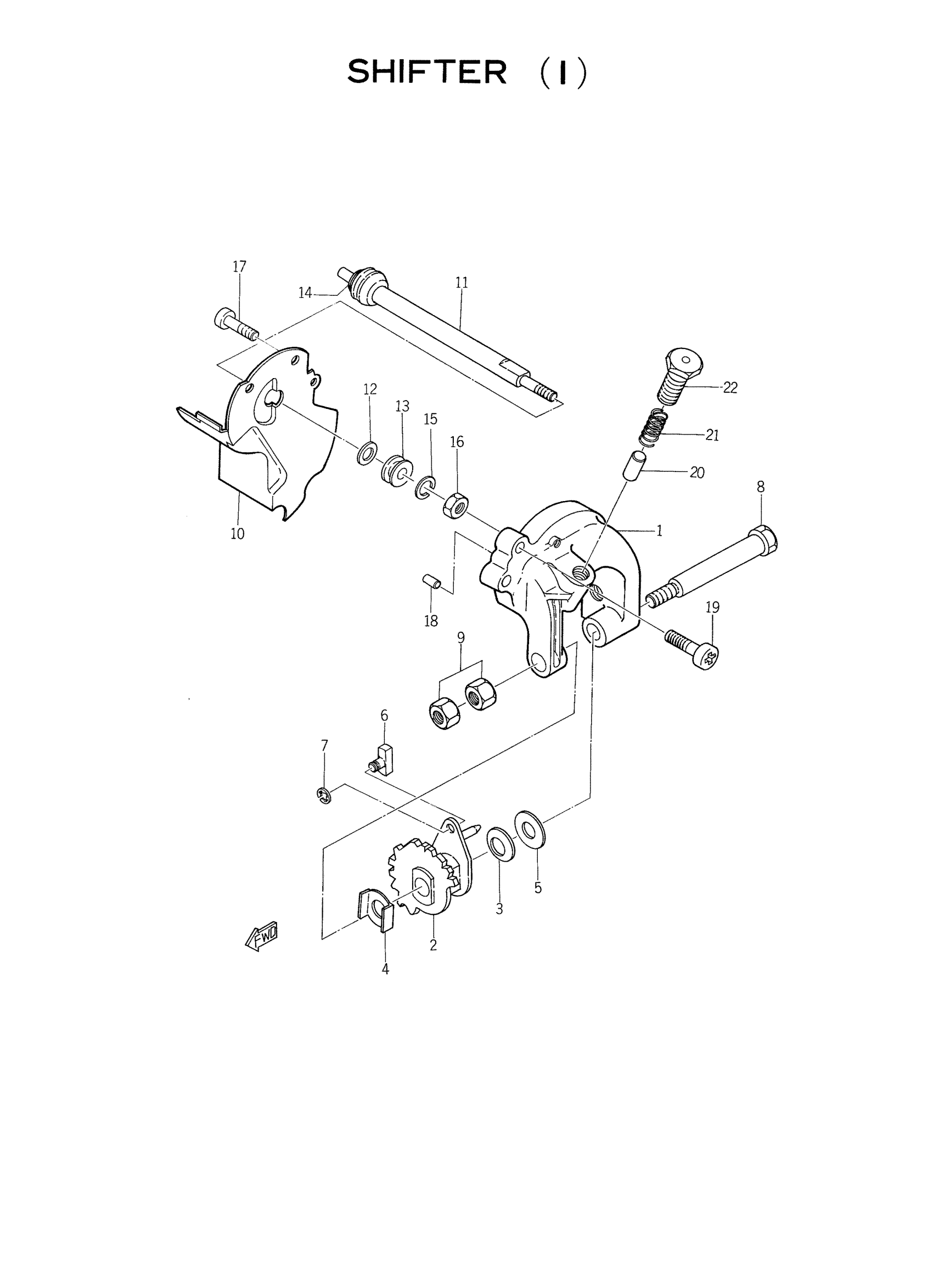

Yamaha YG1 (YG1) 122 1963 SHIFTER 1 Diagram

#

Description
Price

1

BRACKET, SHIFTER

122-18431-01-00

Unavailable

2

CAM PLATE ASSEMBLY

122-18440-00-00

Unavailable

3

WASHER, WAVE

90206-10013-00

Unavailable

4

WASHER, PLATE(52H)

90201-105J4-00

$9.49

5

PLATE, THRUST

102-18457-00-00

Unavailable

6

SHIFTER

122-18421-01-00

Unavailable

7

CIRCLIP (EU0)

99080-04600-00

Unavailable

8

SHAFT, CAM

102-18432-00-00

Unavailable

9

. NUT

95380-08700-00

Unavailable

10

SEAL, DUST

102-18428-00-00

Unavailable

11

SHIFTER ROD ASSEMBLY

122-18410-00-00

Unavailable

12

SHIM, ROD

122-18416-00-10

Unavailable

13

RETAINER, SHIFTER

122-18422-01-00

Unavailable

14

SHIM, ROD

102-18414-00-10

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

NUT(650)

95380-06700-00

Unavailable

17

SCREW,PAN HEAD

164-81245-20-00

Unavailable

18

PIN,DOWEL (137)

93604-14012-00

Unavailable

19

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

20

STOPPER, CAM

102-18547-00-00

Unavailable

21

SPRING,COMPRESSION

90501-10056-00

Unavailable

22

BOLT

90109-10201-00

Unavailable
