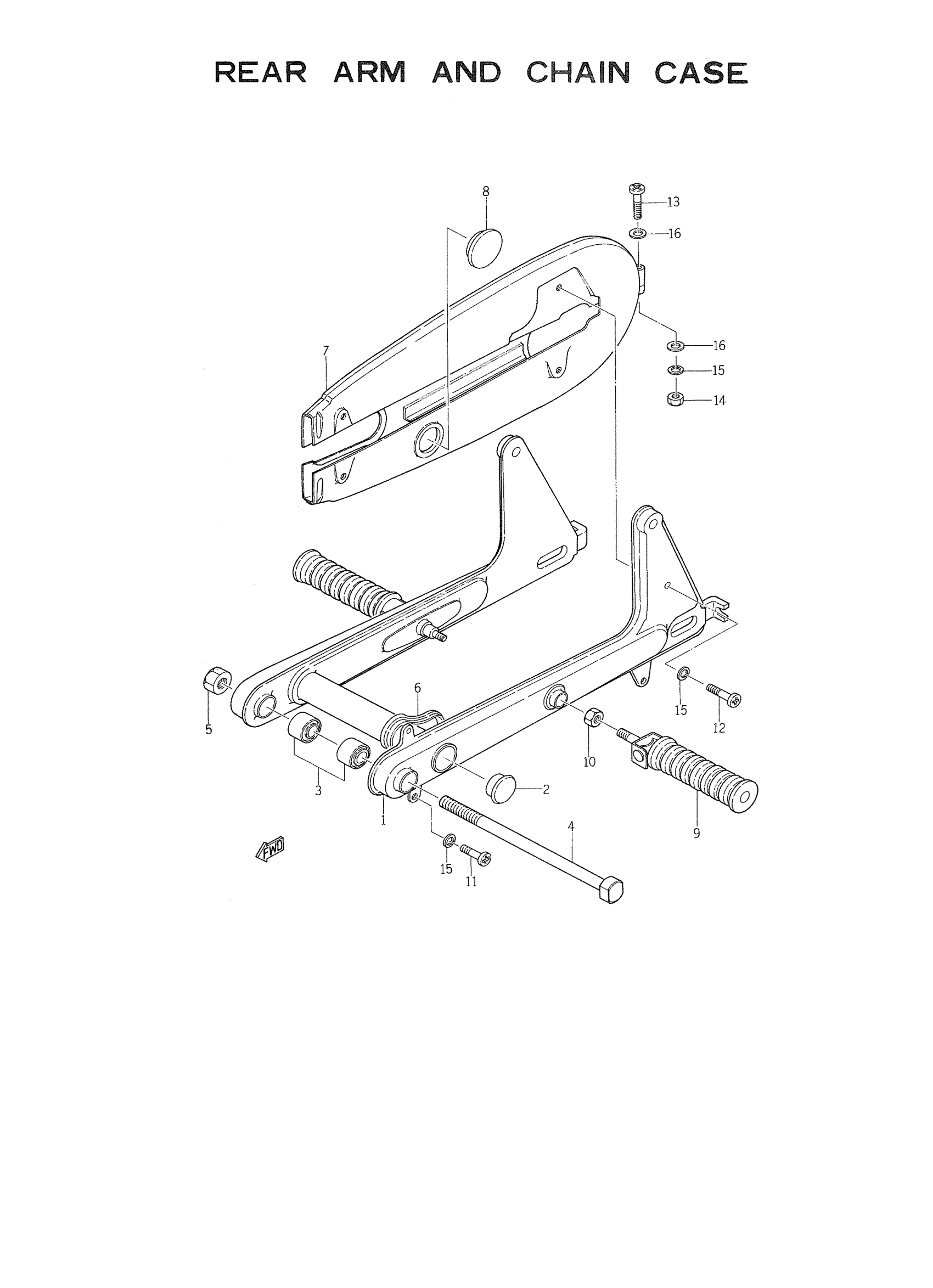

Yamaha YG1 (YG1) 122 1963 REAR ARM AND CHAIN CASE Diagram

#

Description
Price

1

REAR ARM COMP.

122-22110-02-00

Unavailable

2

CAP, REAR ARM

180-22117-00-00

Unavailable

3

BUSH 1

102-22123-00-00

Unavailable

4

SHAFT, PIVOT

102-22141-00-00

Unavailable

5

NUT, SELF LOCKING

90185-10031-00

Unavailable

6

SEAL, GUARD

112-22151-00-00

Unavailable

8

CAP

148-22315-00-00

$6.40

9

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

10

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

11

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.48

12

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.48

13

SCREW, PAN HEAD (686)

98580-05035-00

Unavailable

14

NUT, HEXAGON SMALL

95317-05700-00

$6.18

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

. WASHER, PLAIN

92990-05200-00

$5.08
