Description

Price

1

MUFFLER ASSEMBLY L

126-14710-01-00

Unavailable

2

SILENCER, EXHAUST

122-14753-01-00

Unavailable

3

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

4

NUT, HEXAGON SMALL

95317-05700-00

$8.49

5

NUT, MUFFLER JOINT

132-14713-00-00

Unavailable

6

GASKET, MUFFLER

3NA-14714-01-00

Unavailable

7

PIPE, EXHAUST L

126-14611-00-00

Unavailable

8

NUT, RING

1L4-14612-00-00

$16.49

9

GASKET, EXHAUST PIPE

3MT-14613-00-00

$10.99

10

NUT(6L2)

95333-08600-00

$2.49

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

BOLT

97014-08040-00

$7.49

13

MUFFLER ASSEMBLY L

126-14710-01-00

Unavailable

14

ARRESTER, SPARK

122-14786-20-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

BOLT, HEXAGON

97013-05010-00

Unavailable

17

DIFFUSER

122-14785-20-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

STOPPER

1M3-27114-00-00

Unavailable

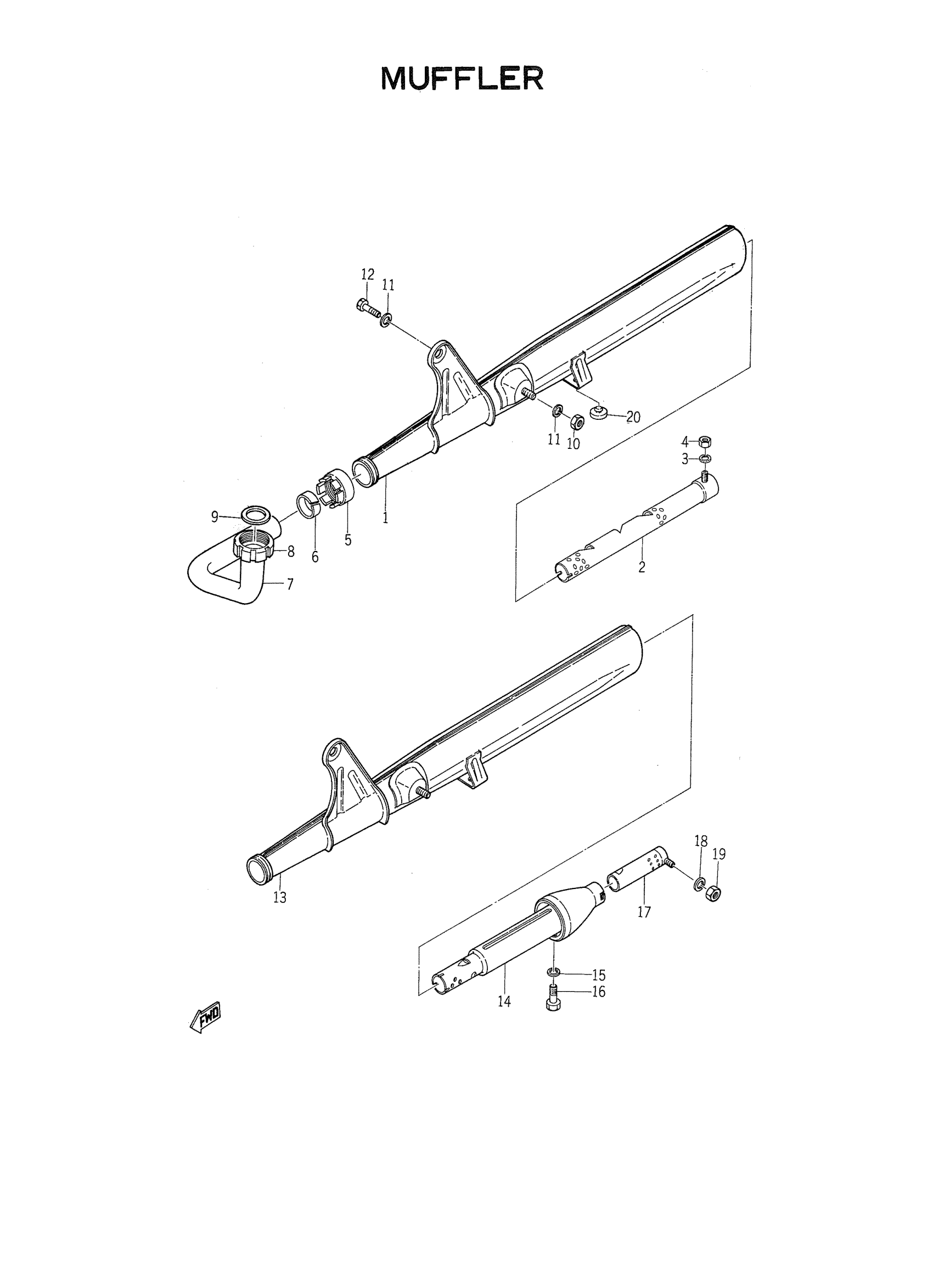

Yamaha YG1 (YG1) 122 1963 MUFFLER Diagram

MUFFLER ASSEMBLY L

SILENCER, EXHAUST

YBS67-5 WASHER, SPRING

NUT, HEXAGON SMALL

NUT, MUFFLER JOINT

GASKET, MUFFLER

PIPE, EXHAUST L

NUT, RING

GASKET, EXHAUST PIPE

NUT(6L2)

YBS67-8 WASHER, SPRING

BOLT

MUFFLER ASSEMBLY L

ARRESTER, SPARK

YBS67-5 WASHER, SPRING

BOLT, HEXAGON

DIFFUSER

WASHER, SPRING

NUT, HEXAGON

STOPPER
