HANDLE AND FRONT FENDER

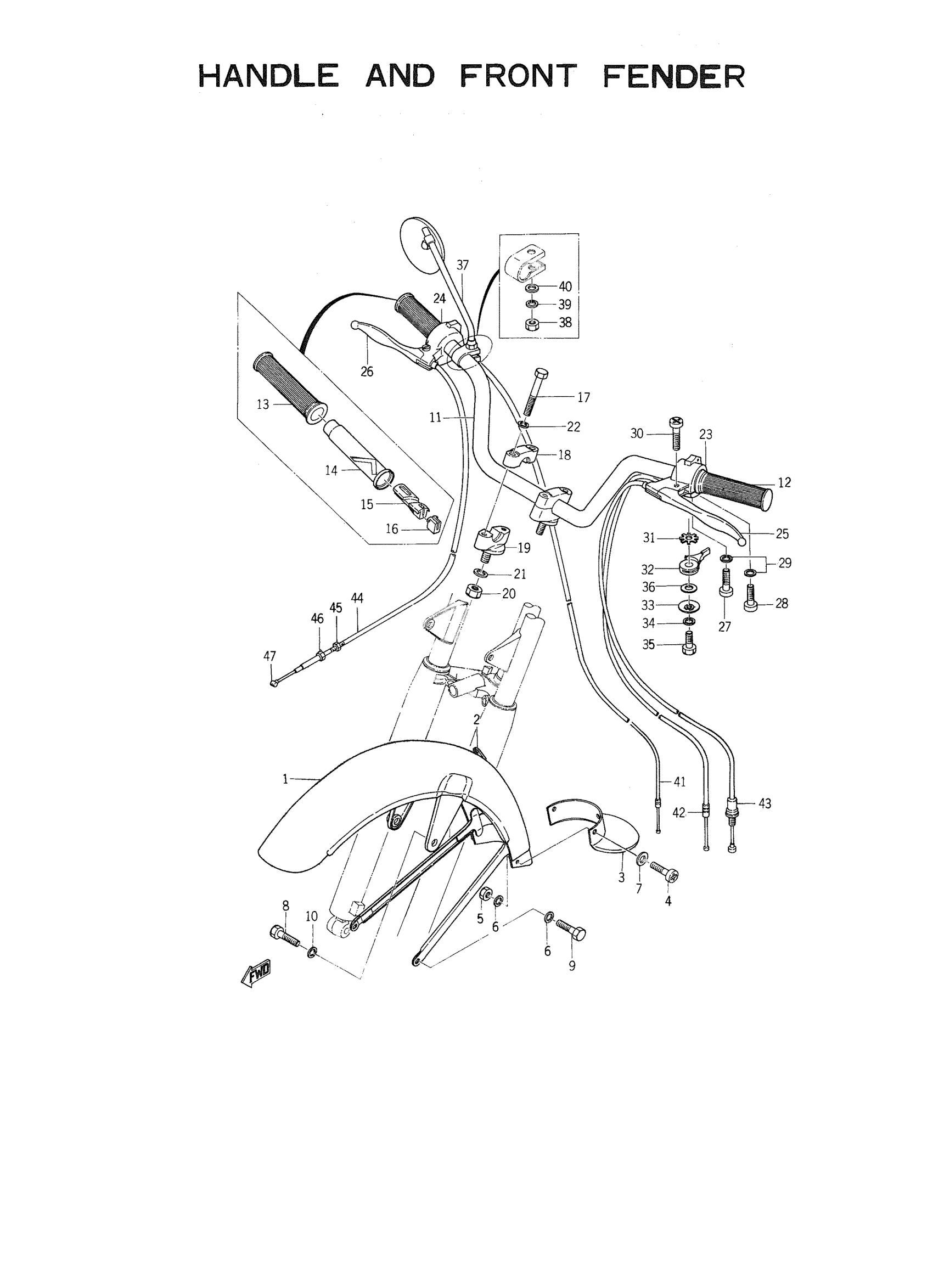

Yamaha YG1 (YG1) 122 1963 HANDLE AND FRONT FENDER Diagram
#
1
FENDER, FRONT
122-21510-00-00
Unavailable
2
PAD, CABLE
122-21517-00-00
Unavailable
3
FLAP, FRONT FENDER
122-21521-00-33
Unavailable
4
SCREW, PAN
98517-06012-00
$3.78
5
NUT
92891-06300-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
7
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
8
BOLT, HEXAGON
97013-08016-00
$1.01
9
BOLT(3JP)
97017-06010-00
$3.76
10
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
11
HANDLEBAR
126-26111-01-00
Unavailable
12
GRIP LH
102-26241-00-00
Unavailable
13
GRIP RH
102-26242-00-00
Unavailable
14
TUBE,THRTL GUIDE
207-26243-00-00
Unavailable
15
SLIDER, THROTTLE
102-26244-00-00
Unavailable
16
STOPPER,CABLE
135-26245-00-00
Unavailable
17
BOLT (682)
97095-06040-00
Unavailable
18
HOLDER, HANDLE UPPER
462-23441-01-00
Unavailable
19
HOLDER, HANDLE UNDER
462-23442-00-98
Unavailable
20
NUT, SELF LOCKING
90185-10031-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
LEVER HOLDER ASSEMBLY 1
124-82710-11-94
Unavailable
24
LEVER HOLDER ASSEMBLY 2
122-82720-11-94
Unavailable
25
LEVER L
803-83912-00-38
Unavailable
26
. LEVER R
122-83922-01-00
Unavailable
27
SCREW, PAN HEAD
92501-05006-00
Unavailable
28
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
29
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
30
SCREW, PAN HEAD
92501-05006-00
Unavailable
31
WASHER,SPEC'L SHAP
90209-12115-00
Unavailable
32
LEVER, STARTER
103-82941-00-00
Unavailable
33
COVER, STARTER
122-83942-00-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
35
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
36
PLATE, SPRING
102-83929-00-00
Unavailable
37
MIRROR ASSEMBLY
257-26290-00-00
Unavailable
38
NUT(6L2)
95333-08600-00
Unavailable
39
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
40
WASHER, PLAIN
92990-08200-00
Unavailable
41
CABLE, THROTTLE 1
122-26311-00-00
Unavailable
42
CABLE, STARTER 1
122-26331-00-00
Unavailable
43
CABLE, CLUTCH
122-26335-00-00
Unavailable
44
CABLE,BRAKE
102-26341-01-00
Unavailable
45
BOLT (109-26345-00)
90123-06011-00
Unavailable
46
NUT (109-26344-00)
90179-06143-00
Unavailable
47
END, WIRE
164-26363-00-00
Unavailable
