- YG1 (YG1) 122 1963
FRONT FORK

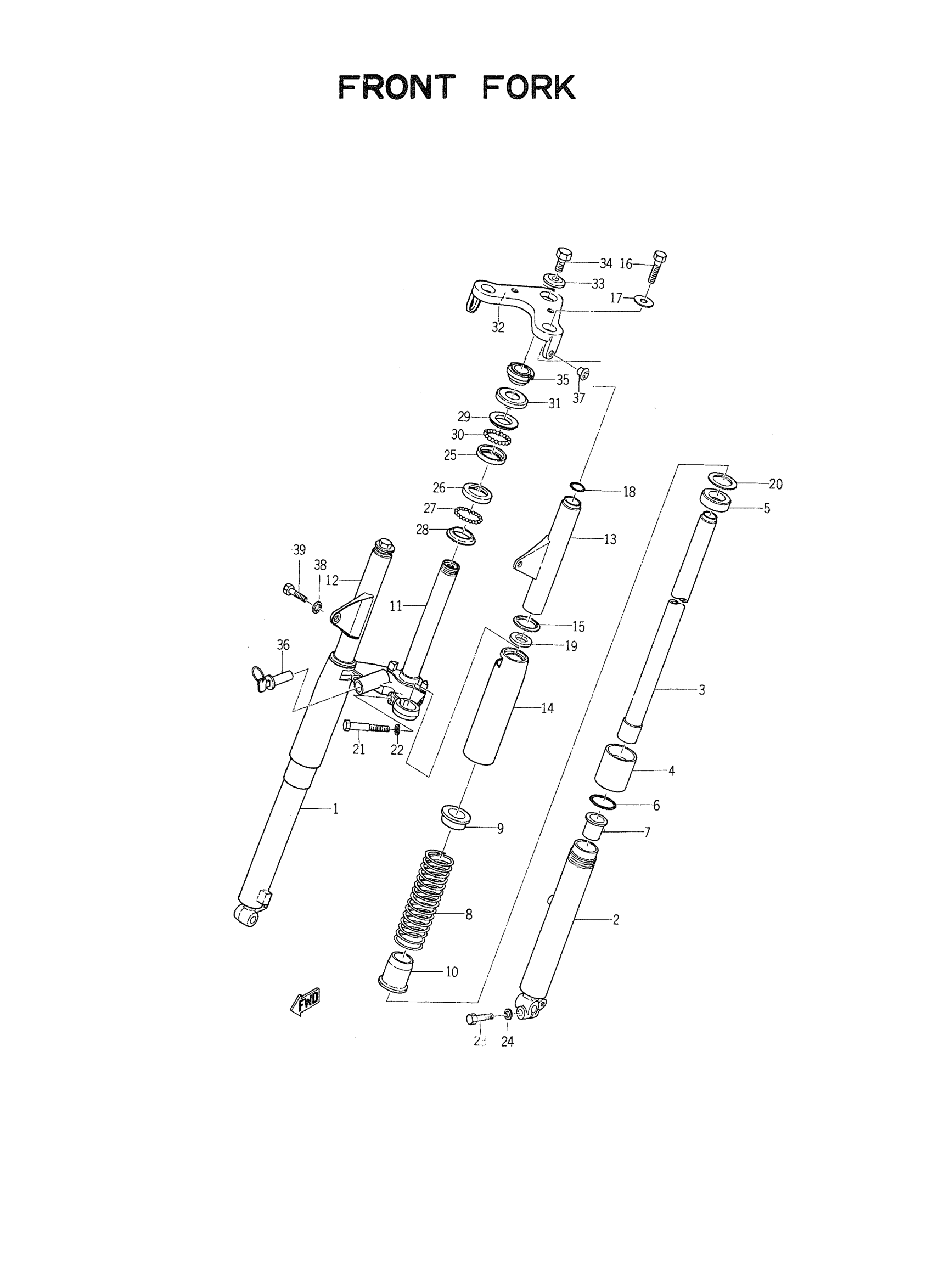

Yamaha YG1 (YG1) 122 1963 FRONT FORK Diagram
#
1
FRONT FORK ASY
122-23100-00-81
Unavailable
2
TUBE,OUTER 1
196-23126-40-81
Unavailable
2
TUBE,OUTER 2
122-23136-00-81
Unavailable
3
TUBE,INNER 1
196-23124-40-00
Unavailable
4
. OUTER NUT
122-23150-00-00
Unavailable
5
OIL SEAL (5R6)
93110-27010-00
Unavailable
6
. O-RING
122-23147-00-00
Unavailable
7
. METAL, SLIDE 1
122-23125-90-00
Unavailable
8
SPRING, FRONT FORK
124-23141-00-00
Unavailable
9
SEAT, SPRING UPPER
124-23142-00-00
Unavailable
10
SEAT, SPRING LOWER
122-23143-00-00
Unavailable
11
UNDER BRACKET
122-23340-00-33
Unavailable
12
COVER, UPPER 2
122-23131-00-81
Unavailable
13
COVER, UPPER 1
122-23121-00-81
Unavailable
14
COVER,LOWER 1
122-23123-00-29
Unavailable
15
GUIDE, COVER LOWER
122-23116-00-00
Unavailable
16
BOLT, CAP
205-23111-40-00
Unavailable
17
. WASHER
122-23112-00-00
Unavailable
18
GASKET
307-23114-00-00
Unavailable
19
PACKING(LAMP STAY)
164-23163-00-00
Unavailable
20
WASHER,OIL SEAL
124-23146-00-00
Unavailable
21
BOLT 1
122-23346-02-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
BOLT (682)
97013-08025-00
Unavailable
24
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
25
RACE, BALL 1
BP2-23411-00-00
Unavailable
26
RACE, BALL 1
B6E-23411-00-00
Unavailable
27
BALL
93501-04011-00
Unavailable
28
RACE, BALL 2
B6E-23412-00-00
Unavailable
29
RACE, BALL 2
BP2-23412-00-00
Unavailable
30
BALL
93503-16003-00
Unavailable
31
COVER, BALL RACE
122-23416-00-00
Unavailable
32
CROWN, HANDLE
122-23435-01-33
Unavailable
33
WASHER (1YJ)
90209-10160-00
Unavailable
34
BOLT 1222345100
90105-10006-00
Unavailable
35
NUT (122-23453-00)
90179-25051-00
Unavailable
36
STEERING LOCK ASY
122-23480-01-00
Unavailable
37
PLUG,SPEC'L SHAPE
90338-09060-00
Unavailable
38
WASHER, PLAIN
92990-08200-00
Unavailable
39
BOLT, HEXAGON
97013-08020-00
Unavailable
