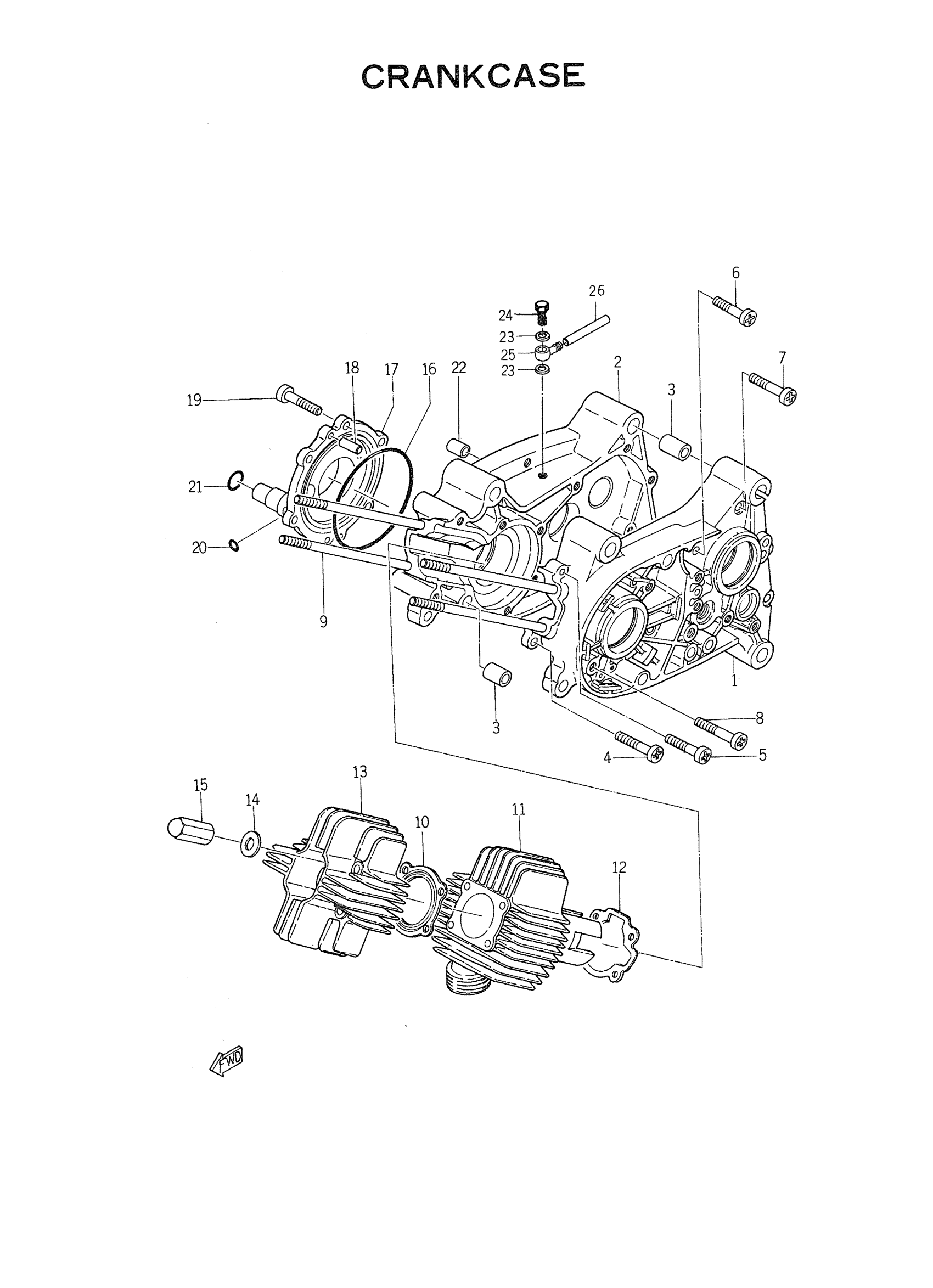

Yamaha YG1 (YG1) 122 1963 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

122-15111-03-00

Unavailable

2

CRANKCASE 2

122-15121-03-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

5

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

6

SCREW PAN HEAD

98580-06545-00

$5.60

7

SCREW PAN HEAD

98580-06550-00

$8.49

8

SCREW PAN HEAD

98580-06565-00

Unavailable

9

BOLT, STUD 1221136100

90116-06100-00

$9.49

10

GASKET, CYLINDER HEAD

2F4-11181-00-00

$50.99

11

CYLINDER 1

129-11311-00-00

Unavailable

12

GASKET, CLYNDR

122-11351-10-00

Unavailable

13

HEAD, CYLINDER 1

180-11111-02-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

NUT CAP 126111716000

90176-06002-00

$5.60

16

RING,RUBBER

120-13554-00-00

Unavailable

17

COVER, VALVE

122-13551-01-00

Unavailable

18

PIN,DOWEL (137)

93604-14012-00

Unavailable

19

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

20

O-RING (137)

93210-12014-00

Unavailable

21

O-RING (122)

93210-23029-00

Unavailable

22

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

23

GASKET (5R6)

90430-10171-00

Unavailable

24

BREATHER

122-15371-90-00

Unavailable

25

COLLAR, UNION

122-15372-00-00

Unavailable

26

PIPE, BREATHER

122-15373-00-00

Unavailable
