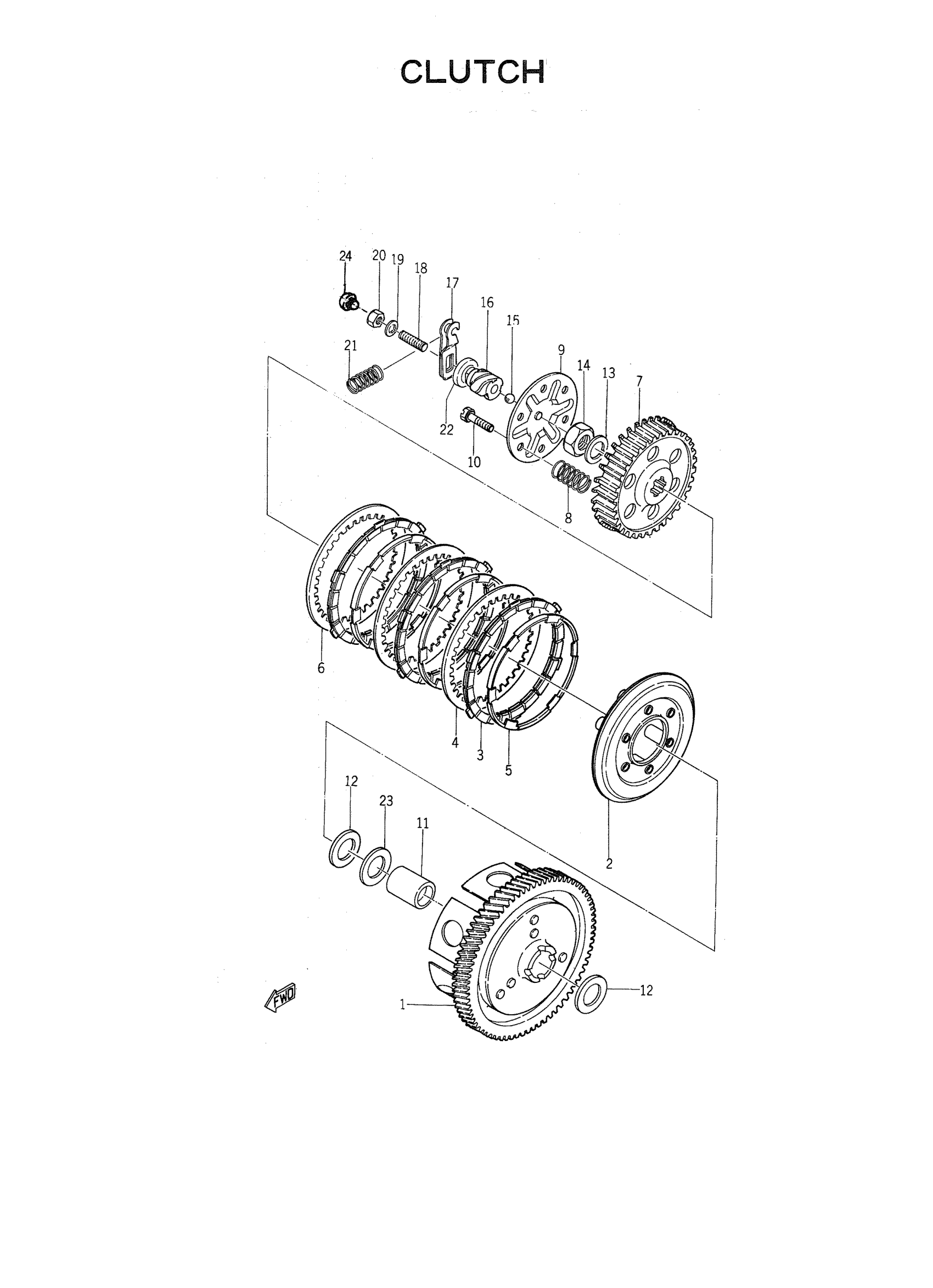

Yamaha YG1 (YG1) 122 1963 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

122-16105-03-00

Unavailable

2

PLATE, PRESSURE 2

122-16352-01-00

Unavailable

3

PLATE,FRICTION

122-16321-09-00

Unavailable

4

PLATE, CLUTCH 1

122-16324-00-00

Unavailable

5

RING, CUSHION

122-16367-00-00

Unavailable

6

PLATE, CLUTCH 2

122-16325-00-00

Unavailable

7

BOSS, CLUTCH

122-16371-00-00

Unavailable

8

SPRING COMPRESSION180163330000

90501-20126-00

Unavailable

9

PLATE, PREESURE 1

122-16351-90-00

Unavailable

10

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

11

SPACER 1

122-16181-01-00

Unavailable

12

PLATE, THRUST

122-16164-00-00

$7.99

13

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

14

NUT, HEXAGON

90170-12170-00

Unavailable

15

BALL

93501-04011-00

$8.49

16

SCREW, PUSH

122-16341-60-00

Unavailable

17

LEVER, PUSH

122-16342-00-00

Unavailable

18

BOLT, SET

90113-06012-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

SPRING, COMPRESSION

90501-08040-00

Unavailable

22

OIL SEAL, SO-TYPE

93104-15005-00

Unavailable

23

WASHER, PLATE

90201-23315-00

Unavailable

24

CAP

122-15417-00-00

Unavailable
