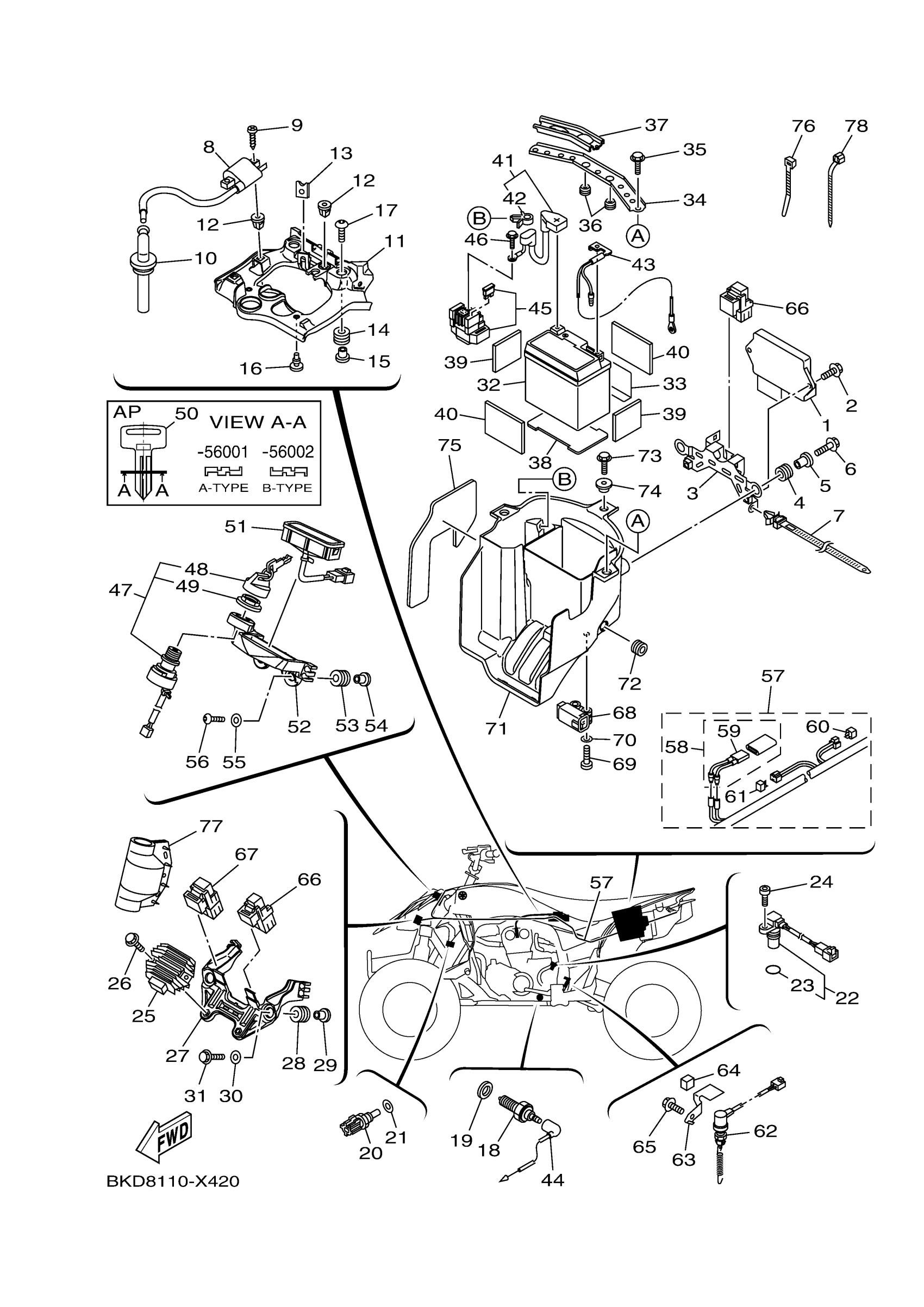

Yamaha YFZ45YSXTL (YFZ450R) DF18 2026 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNI

1TD-8591A-10-00

$886.49

2

BOLT, FLANGE

95817-06016-00

$1.49

3

BRACKET, UNIT

18P-85991-00-00

$16.71

4

GROMMET

90480-14011-00

$5.23

5

COLLAR

90387-06158-00

$6.17

6

BOLT, FLANGE

95817-06020-00

$2.69

7

CLAMP(2TV)

90464-10112-00

$6.18

8

IGNITION COIL ASSY

18P-H2310-04-00

$14.69

9

SCREW, TAPPING

97707-60525-00

$6.69

10

PLUG CAP ASSY

18P-82370-00-00

$74.44

11

BRACKET

18P-81948-00-00

$14.60

12

PLUG(4BP)

90338-08226-00

$1.63

13

NUT, SPRING

90183-060A6-00

$4.17

14

GROMMET (16R)

90480-14329-00

$6.68

15

COLLAR

90387-06161-00

$6.25

16

PLUG

90338-05008-00

$2.49

17

BOLT,HEX. SOCKET BUTTON

90111-06084-00

$4.92

18

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

19

GASKET (1KH,1.0T)

90430-10148-00

$4.74

20

THERMOSENSOR ASSY

5YP-85790-00-00

$54.91

21

GASKET(2GH)

90430-12202-00

$7.09

22

SENSOR, SPEED

18P-83755-01-00

$107.44

23

O-RING

4D9-81168-00-00

$3.71

24

BOLT(3MA)

91312-06016-00

$4.89

25

RECTIFIER & REGULATOR ASSY

5BN-81960-00-00

$177.40

26

BOLT, FLANGE

95817-06020-00

$2.69

27

STAY, REGULATOR

18P-87208-00-00

$21.17

28

GROMMET (4N0)

90480-10289-00

$6.45

29

COLLAR

90387-06204-00

$6.17

30

WASHER, PLATE

90201-06078-00

$5.48

31

BOLT, FLANGE

95822-06025-00

$1.46

32

BATTERY ASSY (YTZ7S)

1TD-H2100-01-00

Unavailable

33

SEAT, BATTERY

18P-82122-00-00

$6.55

34

BRACKET, BATTERY

18P-82128-00-00

$26.06

35

BOLT, FLANGE

90105-06084-00

$3.92

36

PLUG(2GU)

90338-12192-00

$6.18

37

COVER, BATTERY

18P-82129-01-00

$3.57

38

SEAT, BATTERY

4D3-82122-00-00

$9.49

39

DAMPER

5MP-21747-00-00

$4.77

40

PLATE, FOOTREST

4HC-27415-00-00

$6.38

41

WIRE, PLUS LEAD

18P-W8211-10-00

$30.20

42

CLAMP

90464-12001-00

$2.23

43

WIRE, MINUS LEAD

18P-82116-00-00

$32.80

44

WIRE, LEAD

18P-82541-00-00

$11.98

45

STARTER RELAY ASSY (RC19-084A)

18P-81940-00-00

$98.20

46

BOLT, FLANGE

95022-06008-00

$6.26

47

MAIN SWITCH ASSY

4SH-82510-01-00

$56.30

48

CAP, KEY

3HN-82579-00-00

$12.27

49

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

50

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

50

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92

51

PILOT LIGHT ASSY

18P-83530-02-00

Unavailable

52

BRACKET, INDICATOR

18P-8361L-00-00

$23.72

53

GROMMET (4N0)

90480-10289-00

$6.45

54

COLLAR

90387-06204-00

$6.17

55

WASHER, PLATE

90201-06078-00

$5.48

56

BOLT, BUTTON HEAD

92012-06025-00

$2.88

57

WIRE HARNESS ASSY

1TD-82590-00-00

$745.99

58

CIRCUIT BREAKER ASSY

3D5-82180-00-00

$20.40

59

THERMO SWITCH ASSY

3D5-82560-00-00

$33.35

60

DIODE ASSY

4WA-81980-00-00

$25.93

61

DIODE ASSY

3WP-81980-00-00

$18.85

62

STOP SWITCH ASSY

18P-82530-11-00

$27.52

63

COVER 1

18P-8246B-10-00

$5.43

64

DAMPER, LOCATING 4

1TD-2177N-00-00

$16.48

65

BOLT, FLANGE

95022-06010-00

$5.45

66

RELAY ASSY

1TP-81950-00-00

$13.06

67

RELAY ASSY

5DM-81950-01-00

$24.72

68

SENSOR, LEAN ANGLE

5PS-82576-02-00

$77.77

69

BOLT

91312-04025-00

$1.49

70

WASHER, PLATE

90201-04030-00

$1.51

71

BOX, BATTERY 1

18P-8212B-00-00

$54.78

72

GROMMET

90480-12007-00

$6.25

73

BOLT, FLANGE

90105-06084-00

$3.92

74

COLLAR

90387-06153-00

$5.75

75

INSULATOR

18P-8254E-00-00

$19.20

76

CLAMP

90465-10098-00

$2.24

77

COVER

5RU-8252U-00-00

$11.57

78

CLAMP(4FM)

90464-15195-00

$2.77
