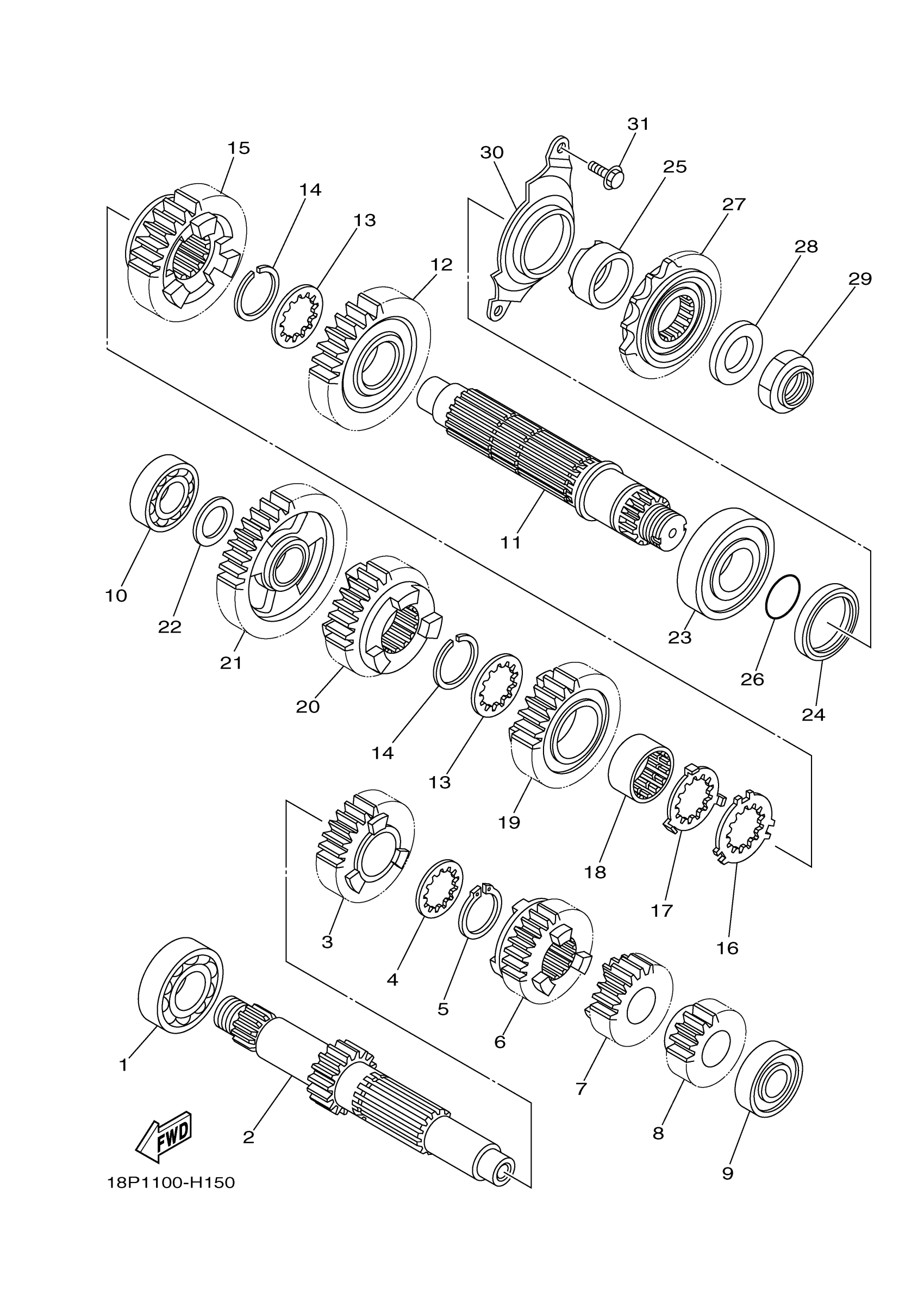

Yamaha YFZ45YSXSL (YFZ450R) DF11 2025 TRANSMISSION Diagram

#

Description
Price

1

BEARING

93306-20532-00

$53.79

2

AXLE, MAIN

18P-17411-01-00

$196.07

3

GEAR, 5TH PINION (21T)

18P-17151-00-00

$92.62

4

WASHER

90209-23012-00

$4.69

5

CIRCLIP (30X)

93410-26067-00

$6.93

6

GEAR, 4TH PINION (21T)

18P-17141-00-00

$78.54

7

GEAR, 3RD PINION (19T)

18P-17131-00-00

$99.28

8

GEAR, 2ND PINION (15T)

18P-17121-00-00

$64.46

9

BEARING (30X)

93306-20332-00

$30.72

10

BEARING (5Y1)

93306-00426-00

$34.16

11

DRIVE AXLE ASSY

18P-17402-00-00

$300.20

12

GEAR, 2ND WHEEL (30T)

18P-17221-00-00

$111.14

13

WASHER

90209-26008-00

$6.56

14

CIRCLIP (2H7)

93440-28062-00

$6.22

15

GEAR, 3RD WHEEL (31T)

18P-17231-00-00

$117.55

16

WASHER, CLAW

90214-26002-00

Unavailable

17

WASHER, CLAW

90214-26003-00

Unavailable

18

COLLAR

90387-26005-00

Unavailable

19

GEAR, 4TH WHEEL (28T)

18P-17241-00-00

Unavailable

20

GEAR, 5TH WHEEL (23T)

18P-17251-00-00

Unavailable

21

GEAR, 1ST WHEEL (3

BKD-17211-00-00

Unavailable

22

WASHER PLATE 328171160000

90201-20276-00

Unavailable

23

BEARING

93306-27803-00

Unavailable

24

OIL SEAL(1UY)

93102-35393-00

Unavailable

25

COLLAR

90387-28009-00

Unavailable

26

O-RING

93210-25001-00

Unavailable

27

SPROCKET, DRIVE (14T)

18P-17460-00-00

Unavailable

28

WASHER, PLATE

90201-22015-00

Unavailable

29

NUT

90179-22018-00

Unavailable

30

PLATE, COVER

1S3-17471-00-00

Unavailable

31

BOLT, FLANGE

95022-06014-00

Unavailable
