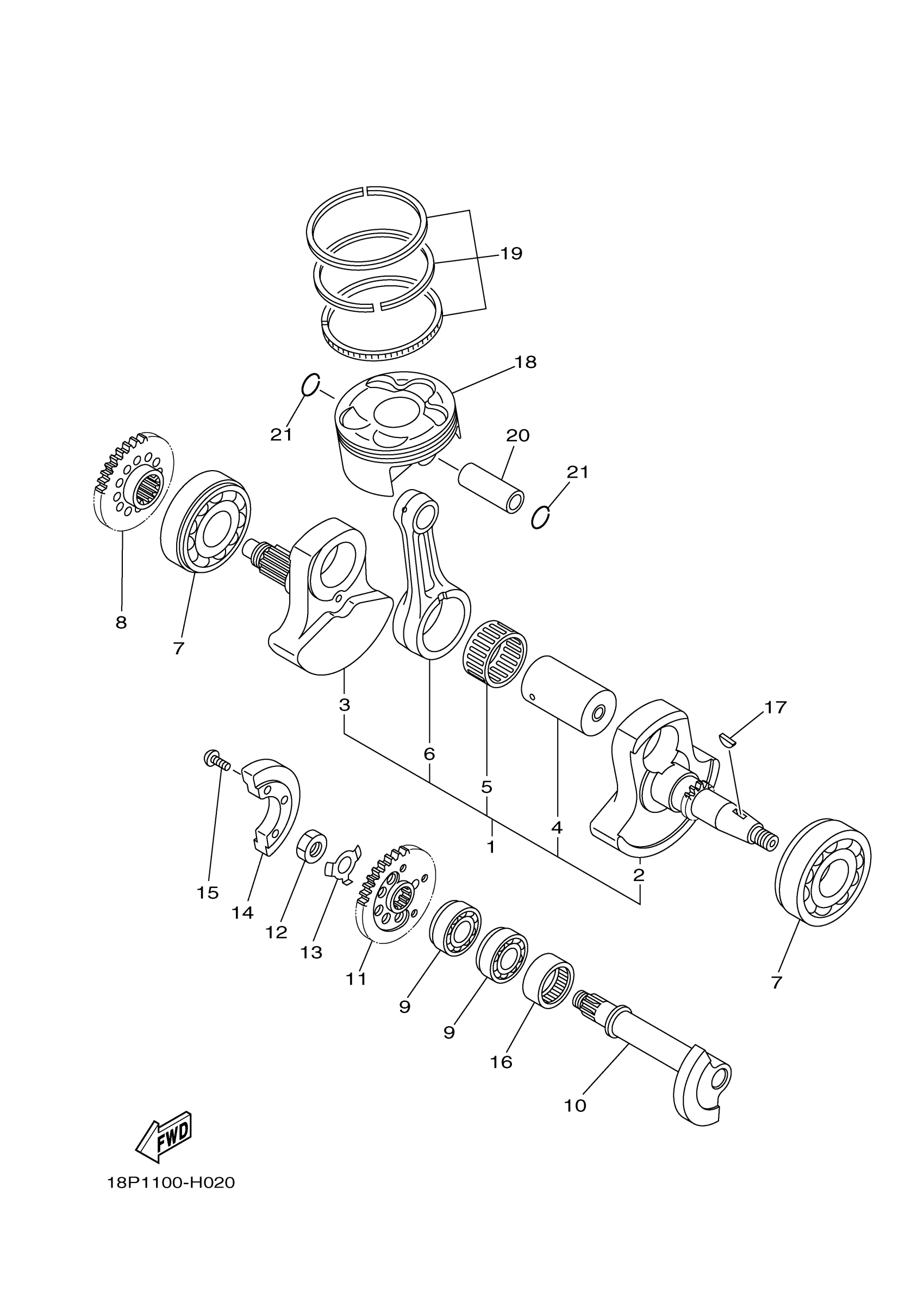

Yamaha YFZ45YSXSL (YFZ450R) DF11 2025 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

1TD-11400-03-00

$520.99

2

CRANK 1

18P-11412-01-00

$212.28

3

CRANK 2

18P-11422-01-00

$283.45

4

PIN, CRANK 1

18P-11681-01-00

$74.63

5

BEARING

93310-73610-00

$85.97

6

ROD, CONNECTING

1TD-11651-00-00

Unavailable

7

BEARING

93306-30644-00

$58.53

8

GEAR, DRIVE

18P-11536-00-00

$124.00

9

BEARING

93306-20353-00

$28.90

10

SHAFT 1

18P-11455-00-00

$284.53

11

GEAR, BALANCE WEIGHT

18P-11531-00-00

$182.20

12

NUT, HEXAGON

90170-14171-00

$6.76

13

WASHER, LOCK(4GA)

90215-14287-00

$4.12

14

WEIGHT 1

18P-11454-00-00

$63.32

15

SCREW

90149-06068-00

$3.13

16

BEARING, CYLINDRICAL(3YL)

93311-62574-00

Unavailable

17

KEY, WOODRUFF

90280-03006-00

Unavailable

18

PISTON (STD)

5TG-11631-12-00

Unavailable

19

PISTON RING SET (STD)

5TG-11603-00-00

Unavailable

20

PIN, PISTON

5TG-11633-10-00

Unavailable

21

CIRCLIP 341116340000

93450-22027-00

Unavailable
