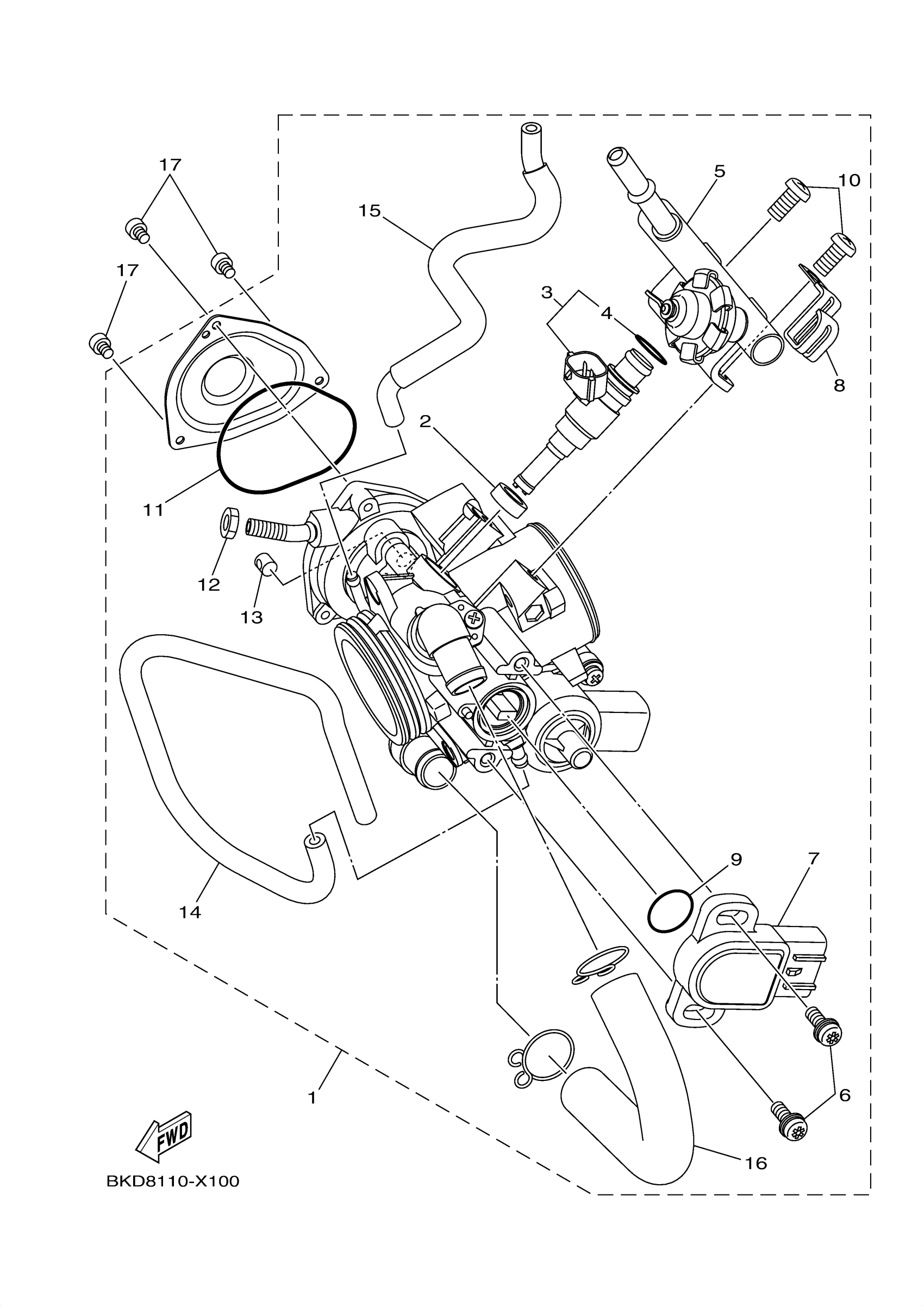

Yamaha YFZ45YSXRL (YFZ450R) BKDN 2024 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1TD-13750-02-00

$871.99

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

INJECTOR ASSY

3B4-13761-00-00

$225.99

4

O-RING

5PS-14147-00-00

$13.49

5

DELIVERY PIPE ASSY 1

18P-13160-00-00

Unavailable

6

SCREW

8CC-14216-10-00

$7.99

7

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

8

JET

5JW-14945-00-00

Unavailable

9

O-RING

5YP-14562-00-00

$7.99

10

SCREW, PAN

98517-06012-00

$3.78

11

O-RING

5LP-14147-00-00

$11.99

12

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

13

GUIDE, CABLE

1UY-14155-00-00

$18.49

14

HOSE, AIR

18P-13543-00-00

$31.99

15

PIPE 1

18P-14348-00-00

Unavailable

16

HOSE 1

18P-13545-00-00

Unavailable

17

BOLT

91312-04006-00

Unavailable
