Description

Price

1

OIL PUMP ASSY

18P-13300-00-00

$165.69

2

ROTOR ASSY 2

5TA-13320-00-00

$40.09

3

PIN, DOWEL(1HX)

93603-16219-00

$5.27

4

CIRCLIP(1WG)

93440-10153-00

$1.70

5

PIN, DOWEL

99530-08012-00

$5.39

6

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.76

7

SHAFT, IDLE GEAR

2S2-13342-00-00

$19.88

8

SCREW

90149-06068-00

$3.38

9

GEAR, OIL PUMP IDLE

18P-13341-00-00

$42.36

10

CIRCLIP(10Y)

99009-12400-00

$2.93

11

WASHER PLATE 164185720000

90201-12166-00

$5.98

12

HOUSING, STRAINER

18P-13412-01-00

$24.95

13

STRAINER, OIL

18P-13411-00-00

$14.26

14

BOLT(J17)

91312-06035-00

$2.26

15

PIN, DOWEL(3VD)

99530-10114-00

$2.03

16

STRAINER 2

18P-13421-00-00

Unavailable

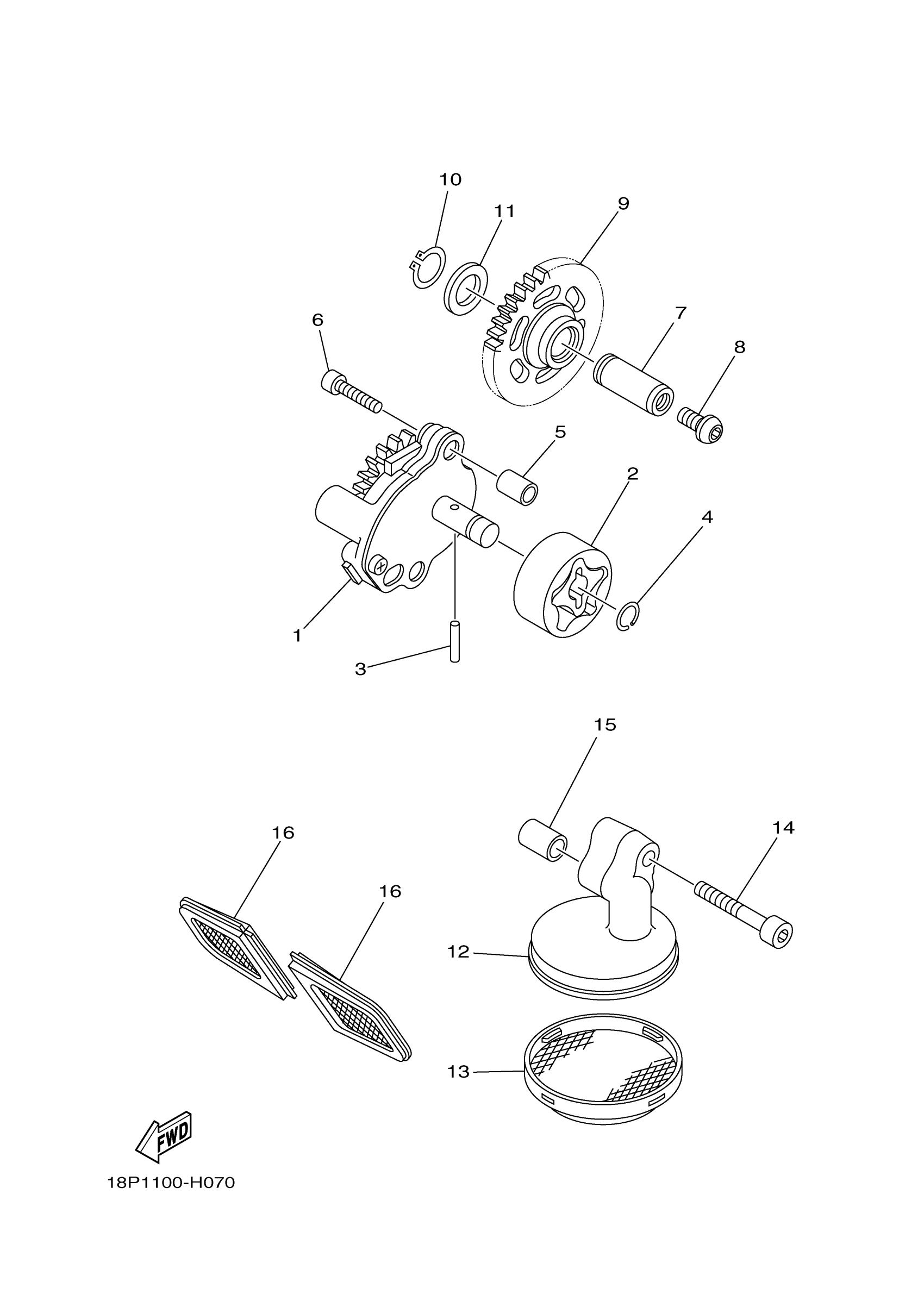

Yamaha YFZ45YSXML (YFZ450R) BKD1 2021 OIL PUMP Diagram
