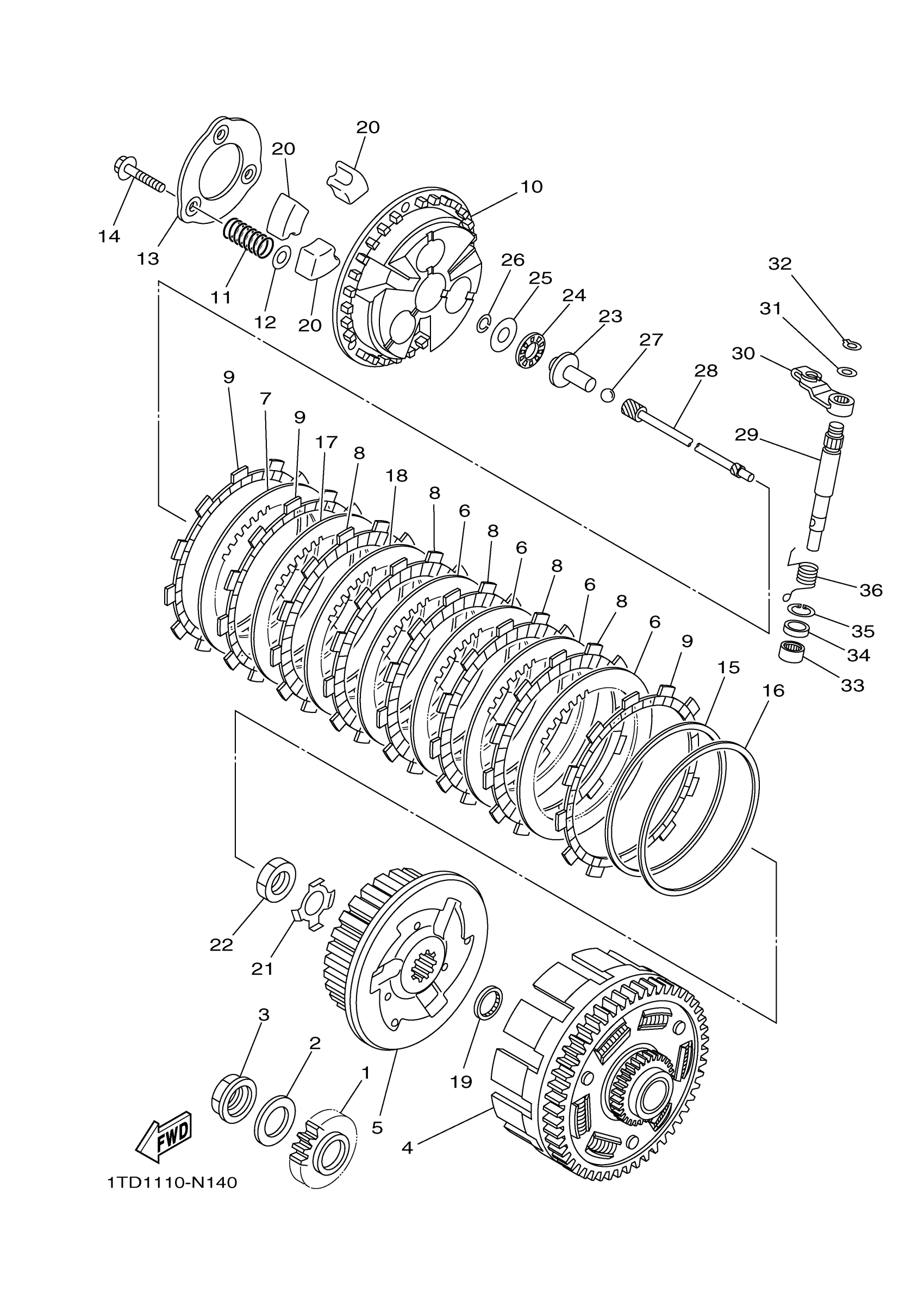

Yamaha YFZ45YSXLL (YFZ450R) BW2M 2020 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$147.99

2

WASHER, CONICAL SPRING(83R)

90208-25045-00

$15.99

3

NUT

90179-20009-00

$20.99

4

PRIMARY DRIVEN GEAR COMP.

1TD-16150-00-00

$400.99

5

BOSS, CLUTCH

1TD-16371-00-00

$142.99

6

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

7

PLATE, CLUTCH 1

1TD-16324-00-00

$9.99

8

PLATE, FRICTION

5VY-16321-00-00

$31.99

9

PLATE, FRICTION 2

1TD-16331-00-00

$28.99

10

PLATE, PRESSURE 1

1TD-16351-00-00

Unavailable

11

SPRING, CLUTCH 1

1TD-16333-00-00

$8.99

12

WASHER

1TD-16774-00-00

$5.49

13

PLATE, PRESSURE 2

1TD-16352-00-00

Unavailable

14

SCREW, SPRING

1TD-16337-00-00

$2.81

15

SPRING.,CUSHION

1TD-16383-01-00

$30.99

16

PLATE, SEAT

1TD-16384-00-00

Unavailable

17

PLATE, CLUTCH 2

1TA-16325-10-00

Unavailable

17

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

17

PLATE, CLUTCH 2

5JG-16325-10-00

Unavailable

18

PLATE, CLUTCH 2

1TA-16325-10-00

Unavailable

18

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

18

PLATE, CLUTCH 2

5JG-16325-10-00

Unavailable

19

PLATE, THRUST 1

5TA-16154-00-00

Unavailable

20

ABSORBER 3

1TD-16178-00-00

Unavailable

21

WASHER, LOCK

90215-20005-00

Unavailable

22

NUT (34L)

90170-20327-00

Unavailable

23

ROD, PUSH 1

5TG-16356-00-00

Unavailable

24

BEARING, THRUST (713)

93340-21505-00

Unavailable

25

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

26

CIRCLIP (4G0)

93440-10085-00

Unavailable

27

BALL (1M1)

93515-32029-00

Unavailable

28

ROD, PUSH 2

18P-16357-01-00

Unavailable

29

AXLE, PUSH LEVER

18P-16382-00-00

Unavailable

30

LEVER, PUSH

18P-16342-00-00

Unavailable

31

WASHER, PLATE

90201-10032-00

Unavailable

32

CIRCLIP(10W)

99009-10400-00

Unavailable

33

BEARING

93317-11287-00

Unavailable

34

OIL SEAL (4G0)

93102-12224-00

Unavailable

35

CIRCLIP(1EV)

99009-20500-00

Unavailable

36

SPRING, TORSION

90508-16061-00

Unavailable
